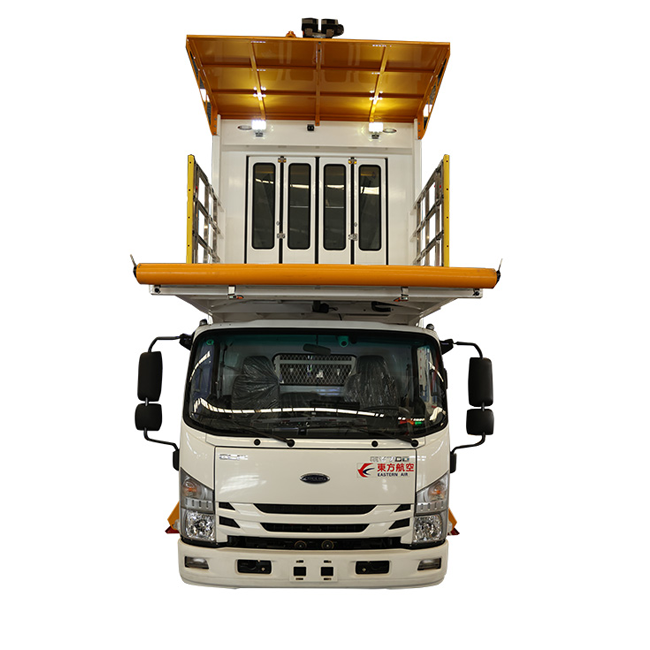

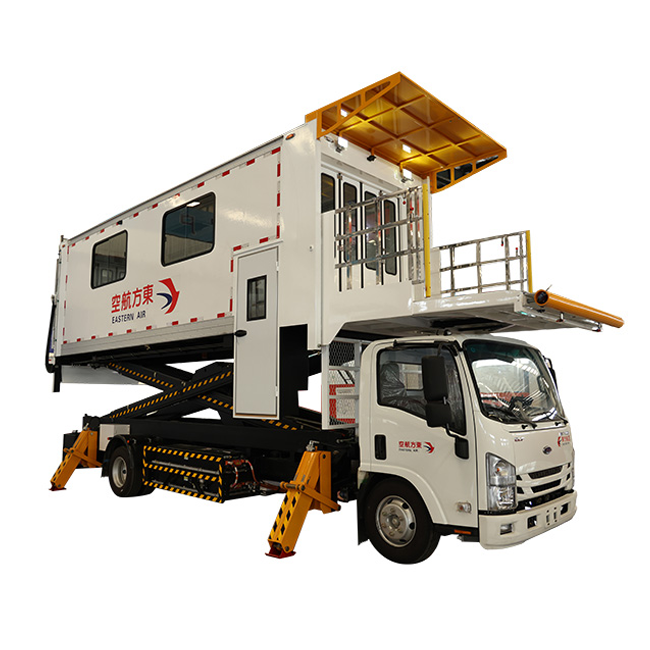

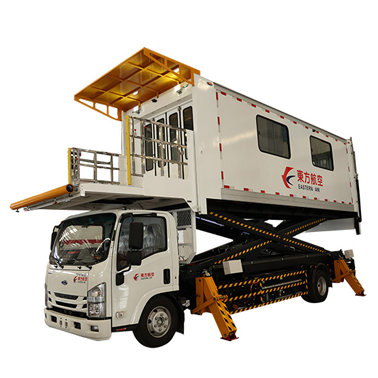

Electric Airport ambulift

JSTY5100JCRE Electric Airport ambulift is modified by Qingling second-class electric vehicle chassis, with advanced technology, safe and reliable use, and superior performance to similar products modified by other domestic chassis. Widely applicable to the use of A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft.
Availability:
Product Description

Model:Electric Airport ambulift



Main performance indicators:


Serial name parameter name Model number
1 Overall dimensions (length × width × height) (mm) 9750×2400×3770 chassis QL1101BEVEMMAY
2 Platform working height (mm) 2200~6000 Chassis vehicle controller VCU06
3 Maximum car load capacity (kg) 3000 Driving motor TZ370XS-LKM0851
4 Fixed platform load rating (kg) 1200 Drive motor controller KTZ54X35S-LKC0851
5 Rated load of telescopic platform (kg) 800 Steering shaft F033
6 Rear platform load rating  (kg) 500 Drive shaft R066
7 Internal dimensions of the body (length × width × height)  (mm) 6570×2200×2100 Energy storage assembly L173TB2
8 Fixed platform (length x width) mm 2300×2000 Energy storage unit CB220
9 Shrink the platform (length × width) mm According to customer requirements Front/rear oblique leg cylinder D90/50-345
10 Expansion distance of expansion platform 0-600 Force extractor SDQ-LK38/36PQ1
11 Platform working height (minimum) mm 2200 gearbox J5S75
12 Platform working height (maximum) mm 6000 Front/rear tires 245/70R17.5 18PR
13 Rear lifting platform lifting height mm 0—1500 Hydraulic pump CBN-F563-BFHL
14 Maximum speed (km/h) 80 Lift cylinder D160/145-1045
15 Maintenance weight (kg) 11180 Telescopic platform cylinder D40/30-600
16 Minimum ground clearance (mm) 180 Rear platform turnover cylinder D40/30-515
17 Wheelbase (mm) 5200 Rear platform lifting cylinder D40/30-1450
18 One charge time h 1.5 Electric emergency pump 800601632
19 Rated power kw/r/min 75/2000 Manual emergency pump PMO 50-s
20 Drive motor protection class IP 67
21 Battery type: Ningde era Lithium iron phosphate
22 Total energy stored kWh 106.96
23 The driving distance is km 210
24 Charging mode Gb DC charging interface (9 cores).
