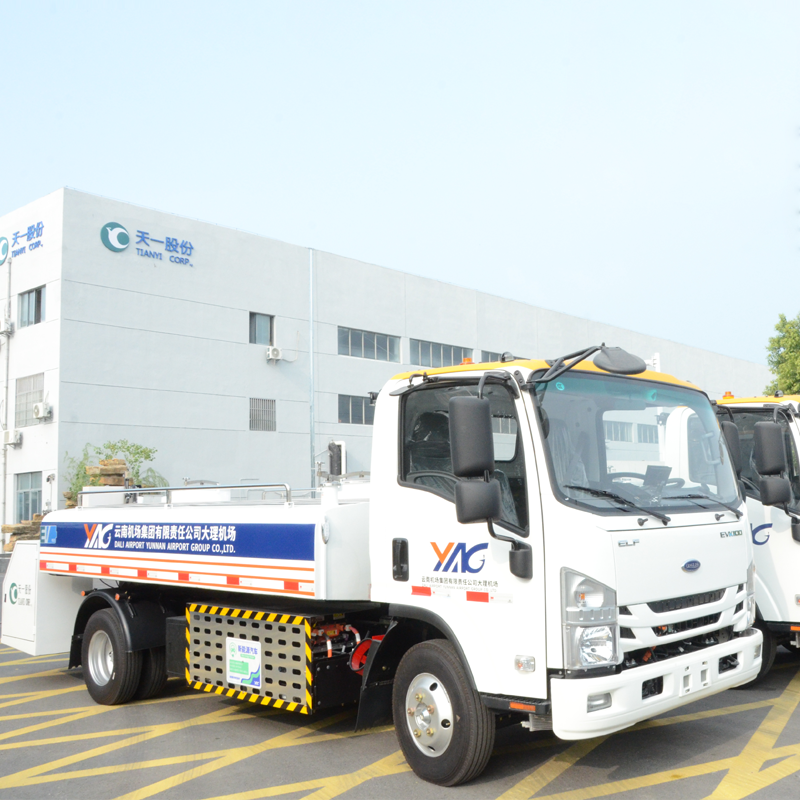

Water Service Truck

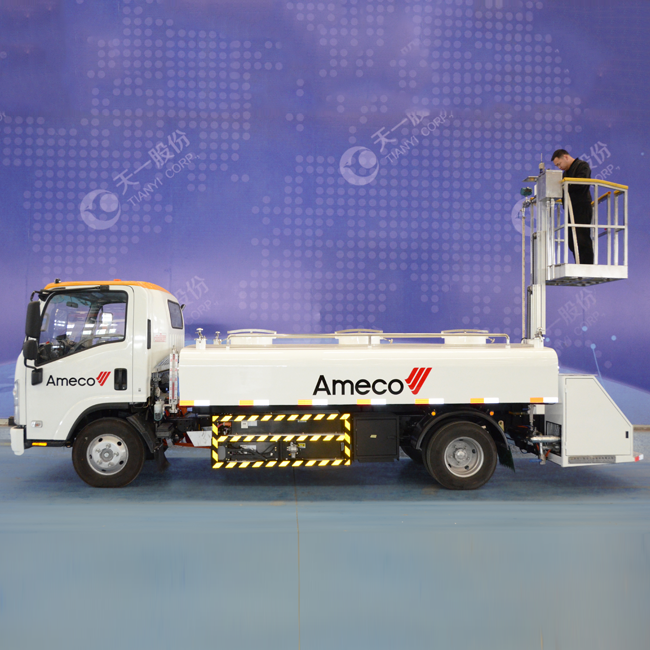

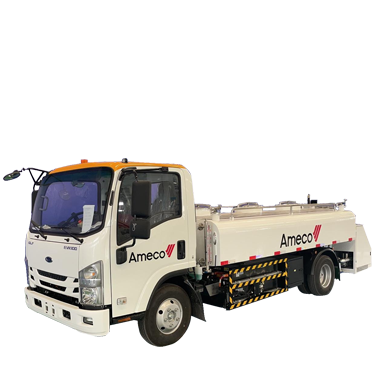

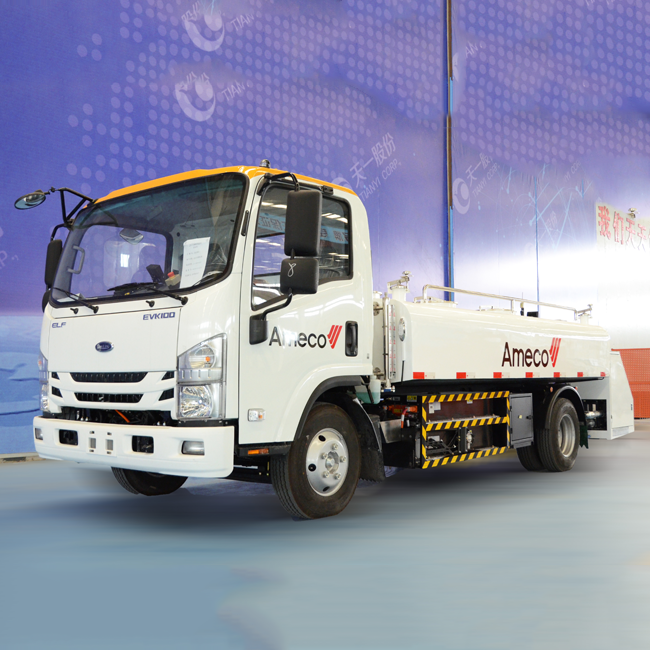

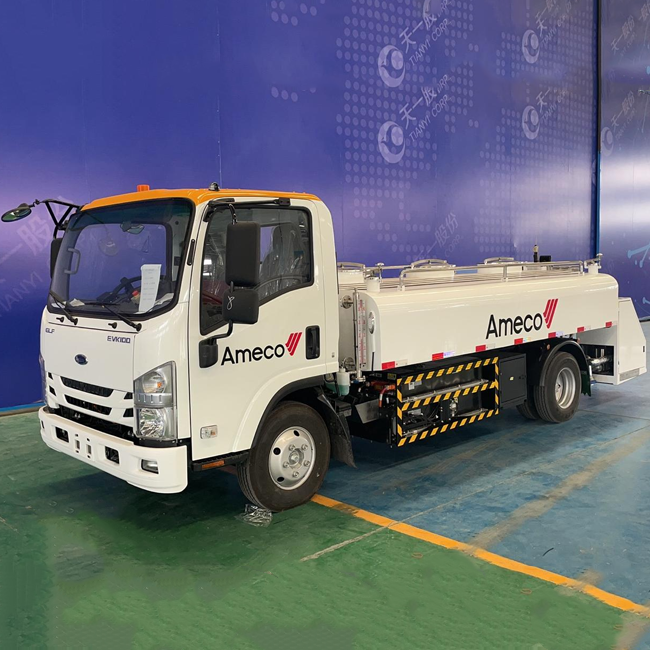

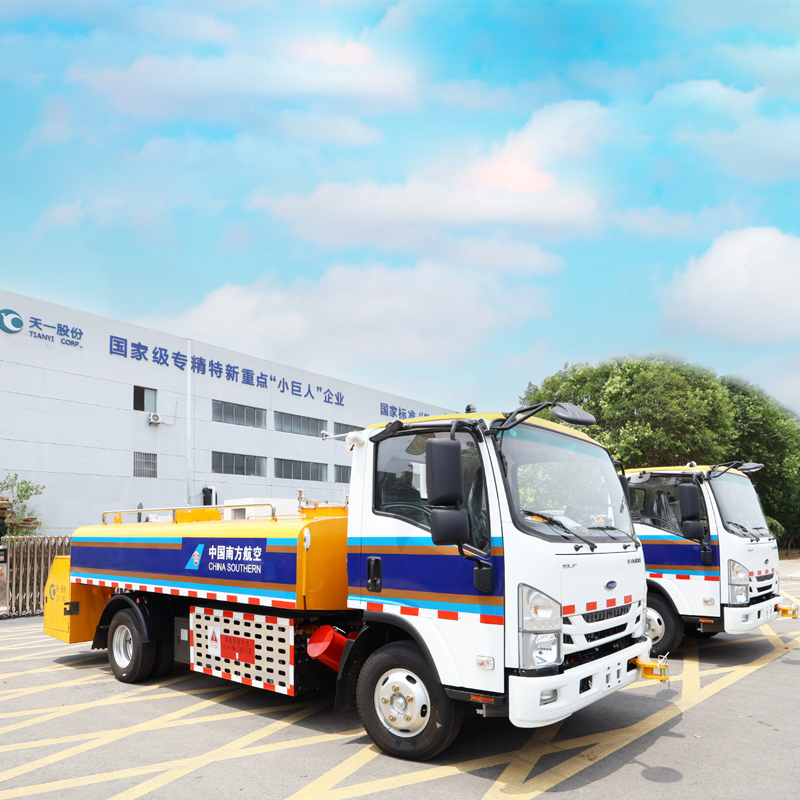

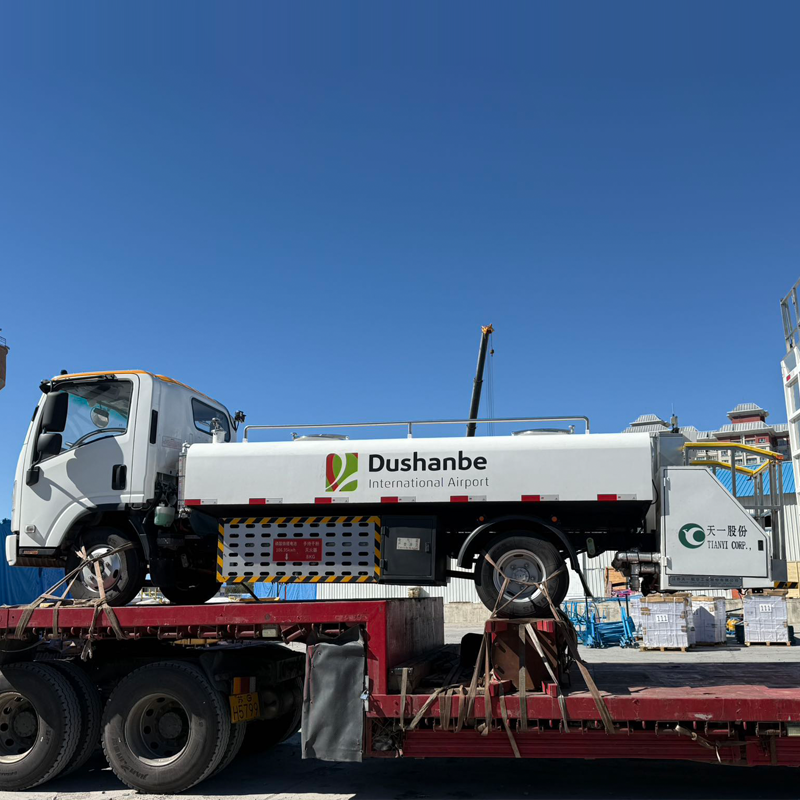

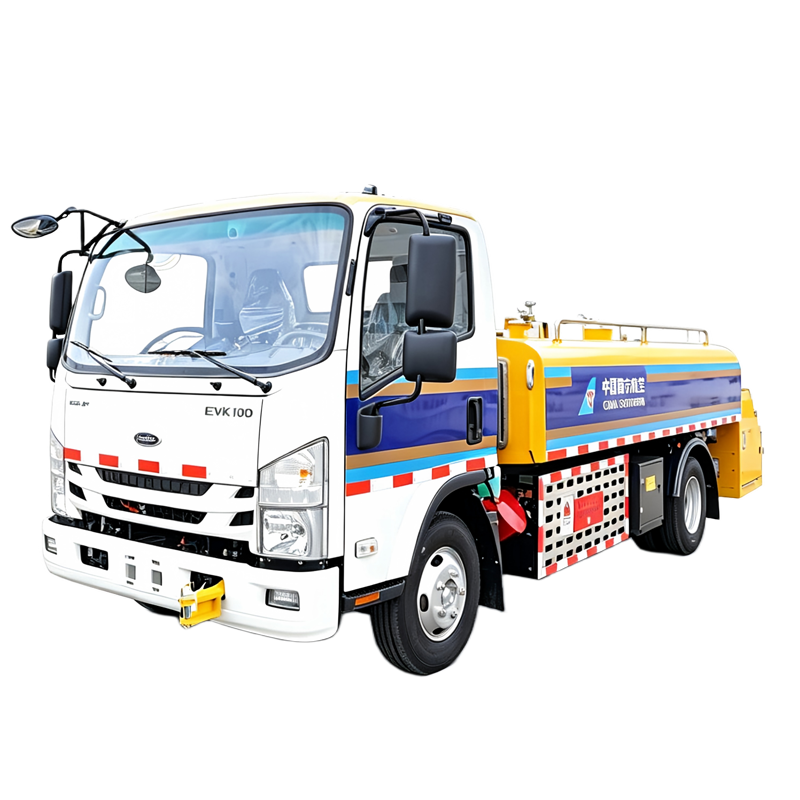

JSTY5060GQSE Water Service Truck is an airport ground special equipment specially designed and manufactured by Jiangsu Tianyi Aviation Industry Co., LTD to provide drinking water for aircraft. It mainly adopts Qingling QL1070BEVECHA2Y chassis to refit into an all-new aircraft clean water filling airport special vehicle. The car is designed as a rear lifting work platform, a large capacity water tank, lifting platform equipped with night operation lights, convenient night operation, product chassis cab for flat head, single row seat, two-door type, occupant 2 people; Drive type is 4×2, clear water tank volume is 5000L, water supply flow is 220L/min.
Availability:
Product Description

Model:Water Service Truck


Main performance indicators:

Serial name parameter name Model number
1 Vehicle size (mm) 6955 * 2100 * 2250 chassis QL1070BEVECHA2Y
2 Platform lifting range (mm) 400 ~ 3000 Chassis vehicle controller VCU02
3 Total vehicle mass (kg) 4200 Driving motor YTD060W23
4 Wheelbase (mm) 3815 Drive motor controller KTZ50X35S
5 Wheel base front/rear (mm) 1685/1525 Energy storage assembly L173TB2
6 Channel circle outer circle diameter (mm) 16500 Energy storage unit CB220
7 Minimum ground clearance (mm) 185 Steering shaft F033
8 Water supply flow L/min 220 Drive shaft R048
9 Water supply pressure Mpa 0.25 ~ 0.35 tyre 7.00R16 14PR
10 Clean water tank volume L 5000 Tank body JSTY5060GQSE-0200000-01
11 Departure Angle (°) 10 Motor pump controller HCDMC005VT3
12 Approach Angle (°) 21 Water pump DL12-60
13 Longitudinal passage Angle (°) 15 Motor pump DLDY-1.0/0.8-3
14 Driving range (km) 308 Lift cylinder GTWY350-2.8
15 Temperature range (℃) - 35-65 Monitoring system (wirelessly connected) D5804
16 Maximum speed Km/h 80 Electromagnetic main power switch DK238 24V
17 Rated power of driving motor KW/r/min 60/1850 relay DRM570024L
18 Assembly voltage V 618.24 Toggle switch E-SG-112
19 Total energy stored KWh 106.95 Relay socket DTF14A
20 Type of energy storage Ningde era lithium iron phosphate sensor UGT521
21 Battery protection class IP68 Emergency electric pump 800602353
22 Water tank cleaning material/thickness mm 316L/5 Alarm light 24V
23 Minimum stable speed Km/h 0.8
