Aviation Lavatory service Truck

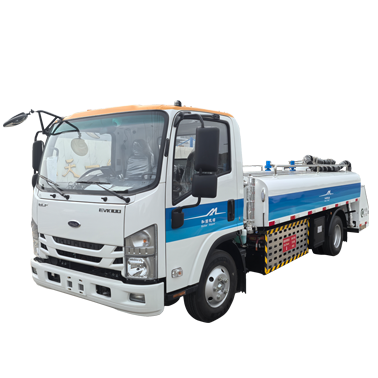

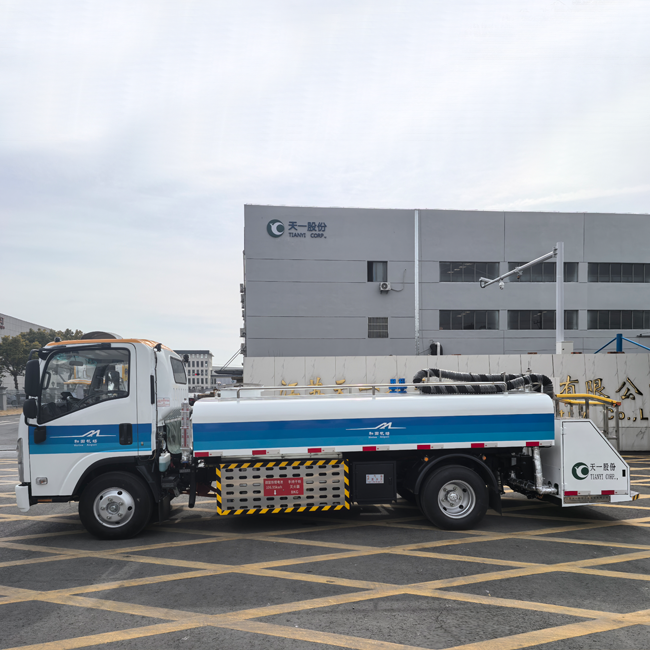

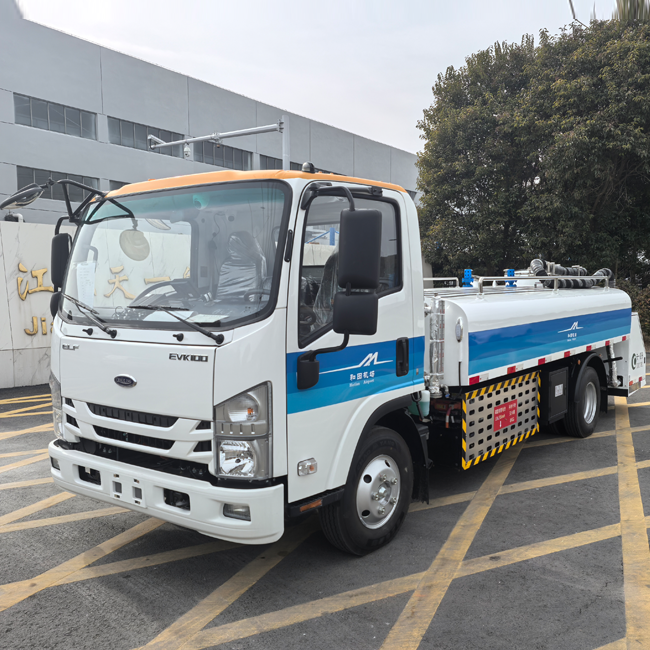

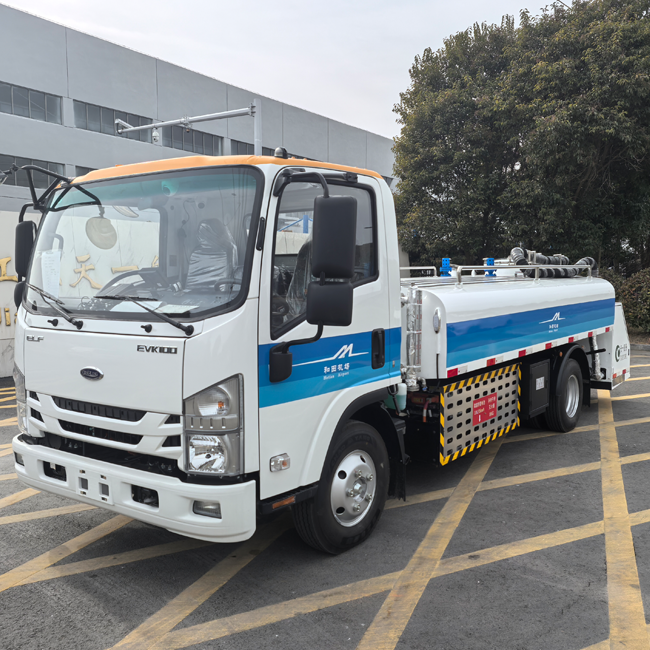

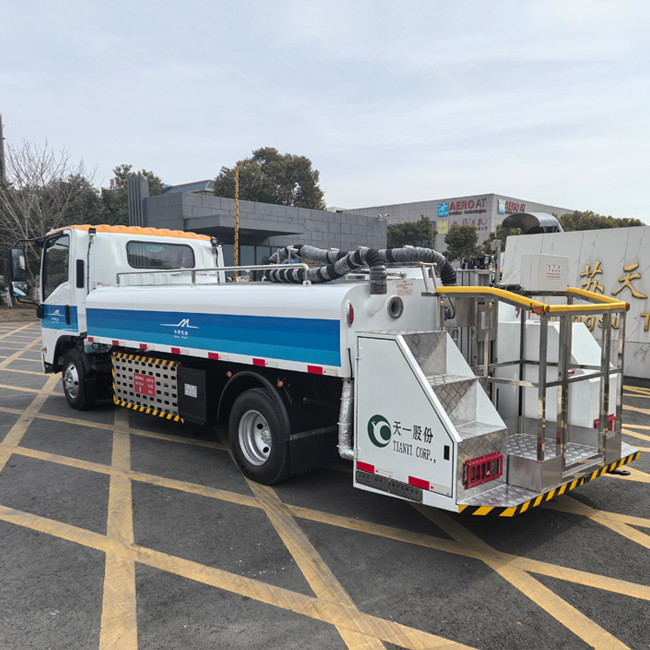

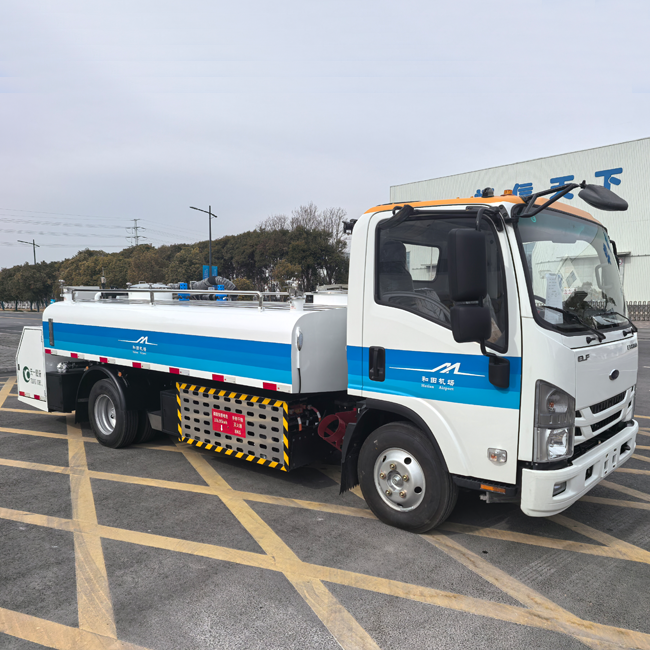

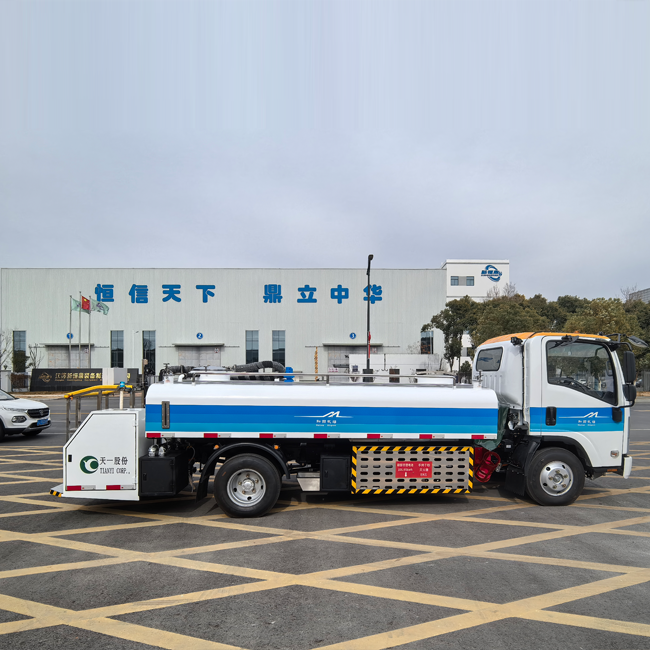

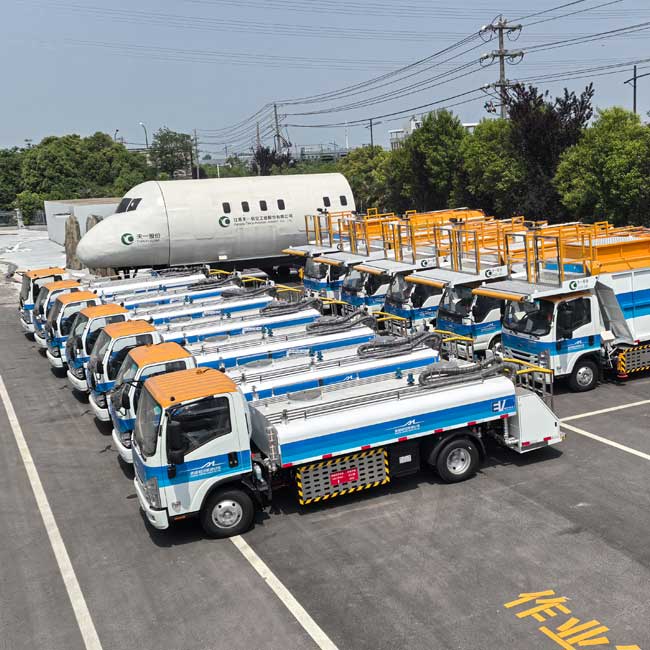

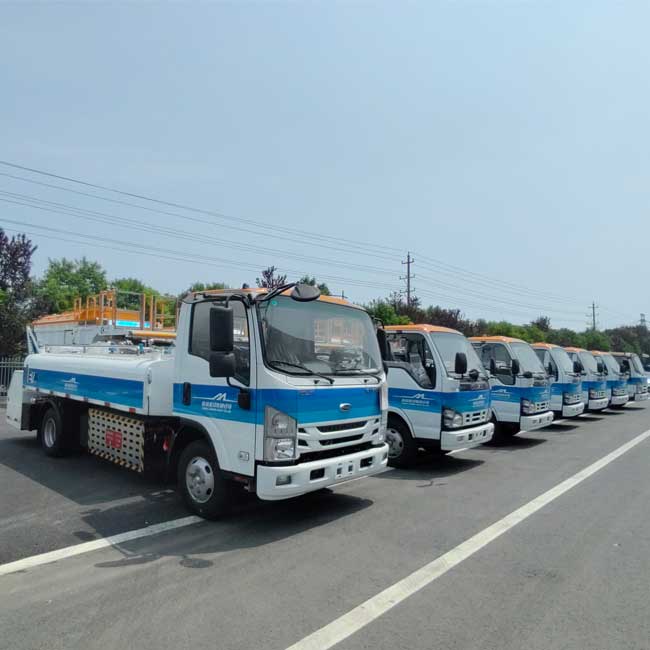

JSTY5060GWSE Aviation Lavatory service Truck is a new aircraft sewage collection and water filling airport special vehicle modified by Qingling QL1070BEVECHA2Y chassis. It is designed as a rear lifting platform, a large capacity cleaning and sewage tank in the middle, with vacuum pump sewage suction system and water pump water supply system. The vacuum pump suction system can efficiently and conveniently provide suction service for aircraft sewage tank, and the pump water supply system can provide cleaning function for aircraft sewage tank and sewage tank of sewage truck.
Availability:
Product Description

Model:Aviation Lavatory service Truck


Product standard
Reference material for IATA AHM 905 Station support equipment for civil aircraft
IATA AHM 910 Airport ground support equipment Basic requirements
IATA AHM 913 Airport ground support equipment Basic safety requirements
MH/T 6015-2014 Aircraft sewage Truck
GB/T 18488-2006 Motor for electric vehicles and its controller
GB/T 24347-2009 DC/DC Converter for electric vehicles
GB/T 18384-2001 Safety requirements for electric vehicles
GB/T 18487-2001 Conduction charging system for electric vehicles
GB/T 20234-2015 Connecting devices for conductive charging of electric vehicles
Communication protocol between non-on-board conductive chargers and battery management systems for electric vehicles
DB11/Z993-2013 Technical Specification for Electric Vehicle Remote Service and Management System
General technical requirements for ground service equipment of AC-137-CA-2015-20R1 electric aircraft


Main performance indicators:

Serial name parameter name Model number
1 Vehicle size (mm) 6965*2100*2250 chassis QL1070BEVECHA2Y
2 Lifting height range of working platform (mm) 400~3000 Chassis vehicle controller VCU02
3 Clean water tank volume L 1600 Driving motor YTD060W23
4 Sewage tank volume L 3480 Drive motor controller KTZ50X35S
5 Circulation tank volume L 200 Energy storage assembly L173TB2
6 Water supply pressure MPA 0.25~0.35 Energy storage unit CB220
7 Clean water flow L/min 220 Steering shaft F033
8 Wheelbase (mm) 3815 Drive shaft R048
9 Wheel base front/rear (mm) 1685/1525 tyre 7.00R16 14PR
10 Channel circle outer circle diameter (mm) 16500 Tank body JSTY5060GQSE-0200000-01
11 Departure Angle (°) 10 Motor pump controller HCDMC005VT3
12 Approach Angle (°) 21 Water pump DL12-60
13 Longitudinal passage Angle (°) 15 Clear water connection for sewage truck A-5
14 Maximum speed Km/h 80 Sewage joint A-7
15 Total vehicle mass (kg) 4750 Sewage pipe A-9
16 Minimum ground clearance (mm) 185 Lift cylinder GTWY350-2.8
17 Equipped with vacuum pump, vacuum bar 0.2 Power unit DLDY-1.0/0.8-3
18 Applicable temperature ℃ -35-65 Monitoring system D5804
19 Rated power of driving motor KW/r/min 60/1850 360° panoramic view system YG-SVMS-3D(I.MX6)
20 Battery capacity kwh 106.95 Electromagnetic main power switch DK238 12V
21 Range km 312 relay RH4B-UL
22 Assembly voltage V 618.24 Toggle switch 1NT-3
23 Total energy stored Kwh 106.95 Relay socket DTF14A
24 species Ningde era lithium iron phosphate sensor UGT521
25 Water tank cleaning material/thickness mm 316L/5 Alarm light FL4871
26 Minimum stable speed Km/h 0.8 Emergency switch YW1B-V4E11R
27

Touch switch CWLNJ
28

Indicator light AL6M
29

Travel switch XCMD2145L1
30

flowmeter LWGY
