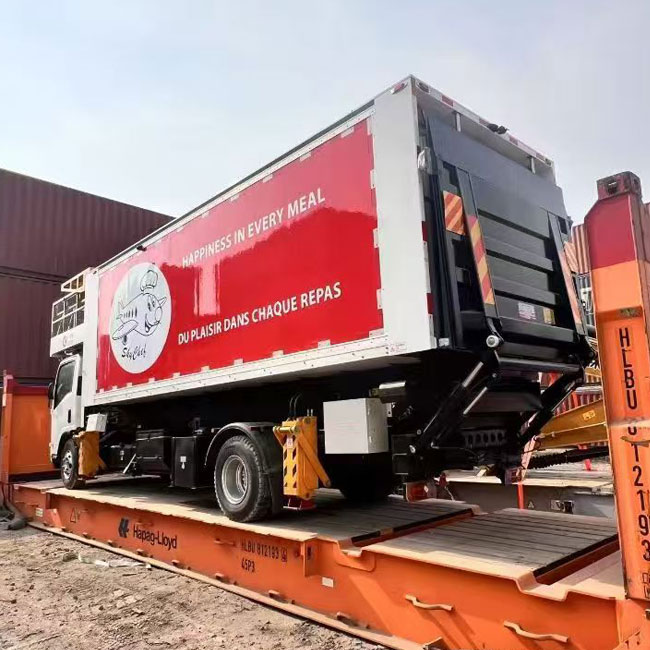

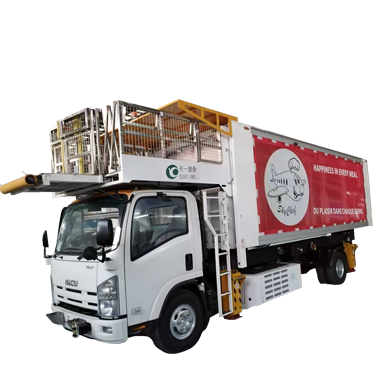

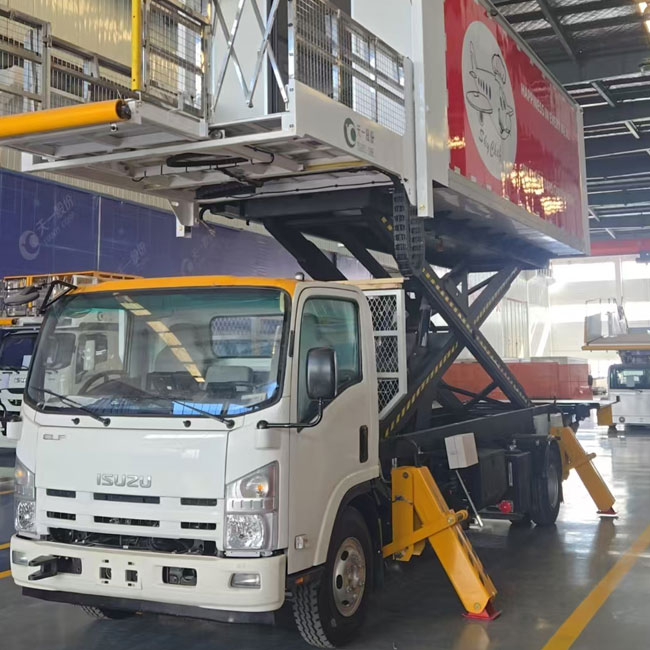

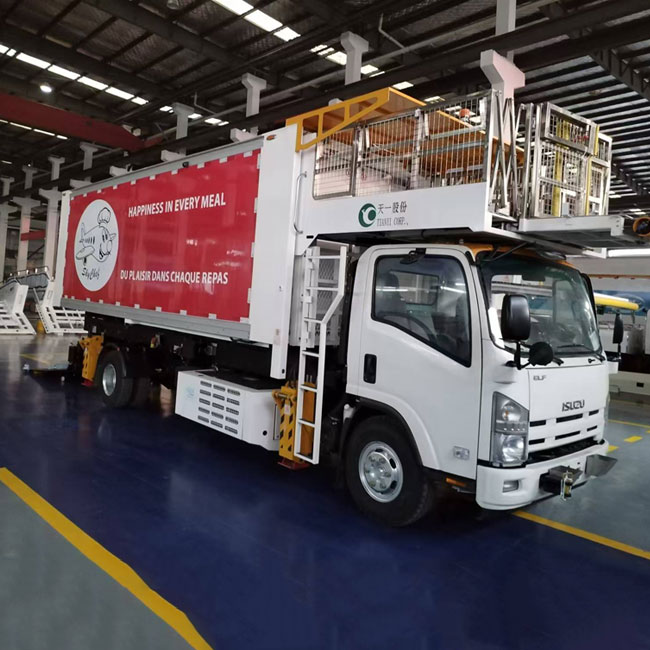

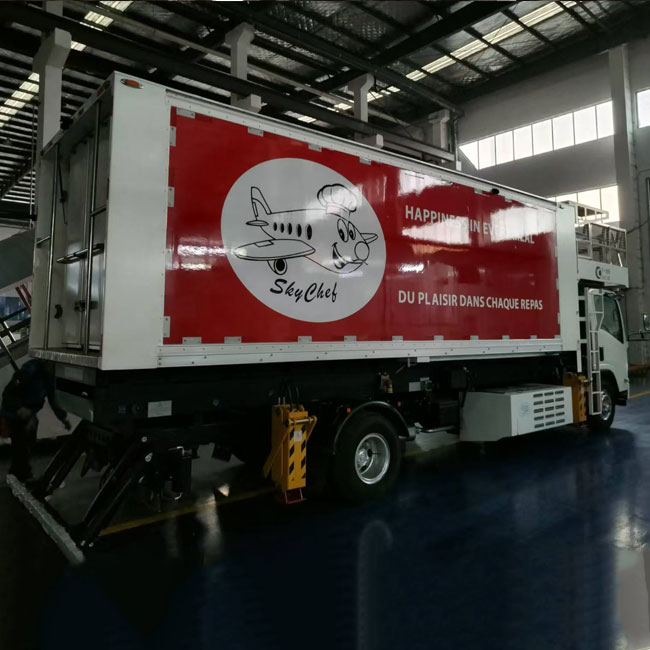

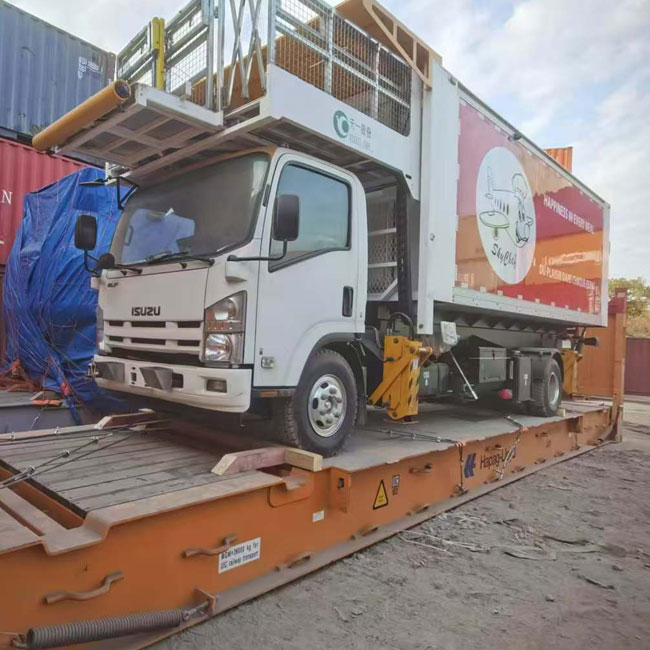

Small Airport Catering truck

WTJ5140JSP small Airport Catering truck using Qingling second class car chassis modification, advanced technology, the use of safe, reliable, the performance is better than the use of other domestic chassis modification of similar products. This product is suitable for B737, A320 and other class C models. The car has advanced technical performance, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability.
Availability:
Product Description

Model:WTJ5140JSP Small Airport Catering truck


Product standard
MH/T6016-2017 "Airline Food Truck"
JG5099-1988 Safety Rules for Working Machinery at Altitude
GB7258-2004 "Motor Vehicle operation Safety Technical Conditions"
AHM910 Basic Requirements for Aeronautical Ground Equipment
AHM913 Basic Safety Requirements for Aviation Ground Equipment
AHM927 Functional Specification for Food Carts


Main performance indicators:

project Performance index
engine manufacturer Qingling Isuzu (Chongqing) Engine Co., LTD
Model number 4KH1CN5HS     /         4HK1-TC51
gearbox manufacturer Qingling Automobile Co., LTD
Model number MSB-5SM       /       MLD-6Q
Platform working height (mm) 2400-4600      /       2400-5800
Body load rating (kg) 1500       /         2000
Front platform load rating (kg) 1050       /        1200
Forward platform moving part load rating (kg) 450
Left and right adjustment range of moving part of front platform (mm) 0-300            /           0-6000
Telescopic adjustment range of movable part of front platform (mm) 0-500         /           0-6000
Dimension of fixed part of front platform (length × width) (mm) 1150×1800        /          2000 X 2290
Dimension of moving part of front platform (length × width) (mm) 730×1000         /          630 X 1200
Maintenance weight (kg) 7200              /            11000
Overall dimensions (length × width × height) (mm) 7160×2010×3300         /         9000 X 2460 X 3830
Other properties ——
chassis manufacturer Qingling Automobile Co., LTD
Model number QL1070A5KAY          /           QL1100A8PAY
Body external dimension (length × width × height) (mm) 5000×2010×2180           /            6500 X 2300 X 2300
Engine emission Exhaust pollutants meet the limit requirements of GB17691-2005 Ⅴ stage; Exhaust smoke meets the requirements of GB3847-2005
Front platform fixed part load rating (kg) 600
