Baggage Tractor

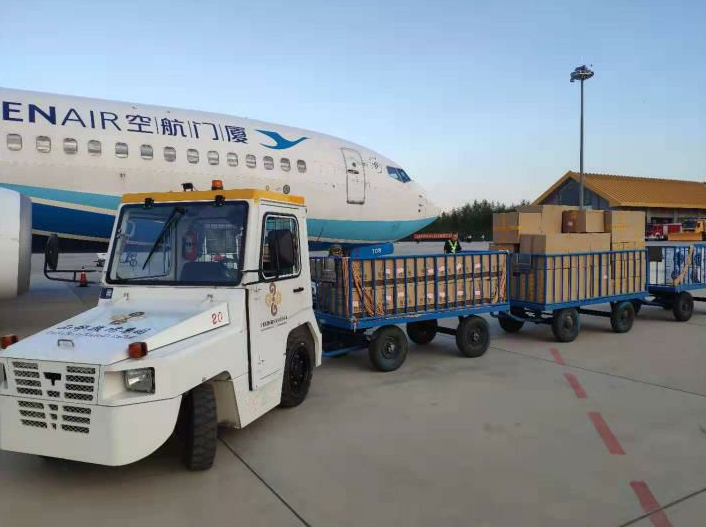

TY-TD25 Luggage tractor is a special vehicle independently designed and manufactured by Jiangsu Tianyi Aviation Industry Co., LTD. The main assembly of this model adopts the configuration of the corresponding level of mature automobile products at home and abroad, reliable performance, easy maintenance. The model can also be used in ports, stations, warehouses, industrial and mining enterprises and other places.
Availability:
Product Description

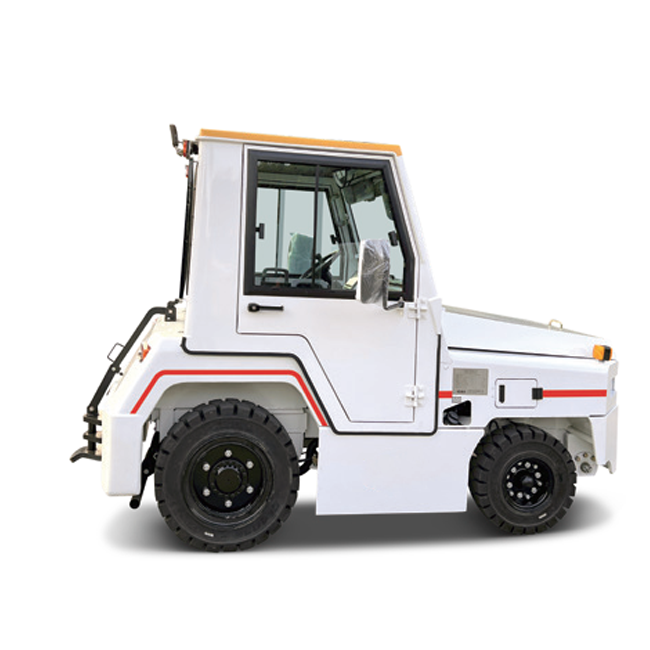

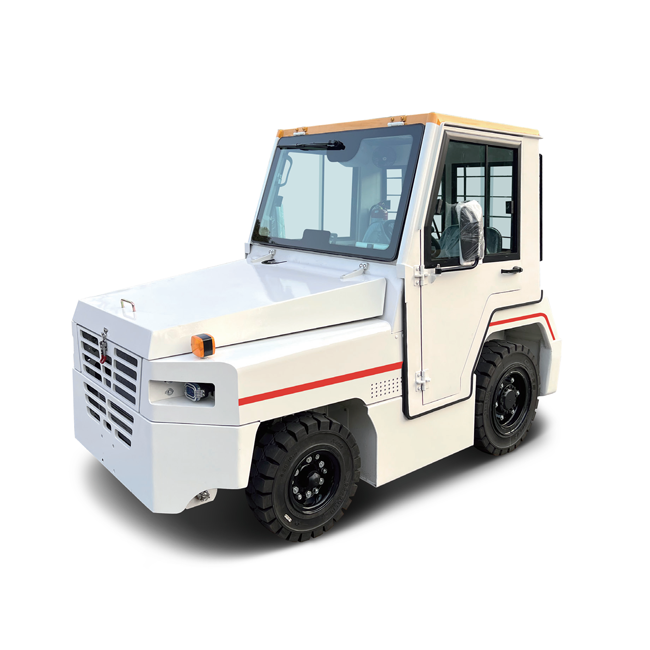

Model: TY-TD25 Baggage tractor


2. Technical parameters

serial Item Name Performance counter
1 Overall dimension: 3000X1468X1450mm (without cab)
3000X1468X1950mm (with cab)
2 Minimum turning radius: 2900mm
3 Wheelbase: 1600mm
4 Front wheel base: 1290mm
5 Rear wheel base: 1150mm
6 Rear traction peg Height: 350/450mm (center)
7 Ground clearance: 150mm
8 The vehicle weighs: 3800kg
9 Maximum traction: 25KN
10 Maximum speed: 35km/h
