Airline Passenger Stairs

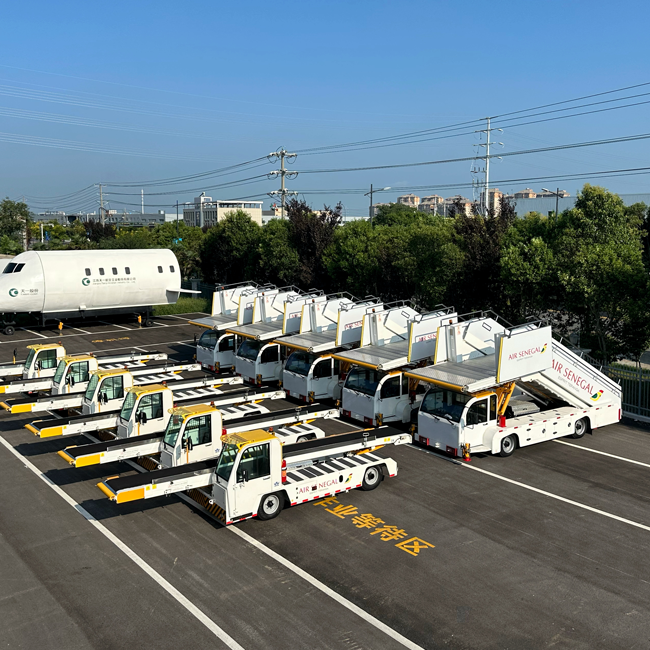

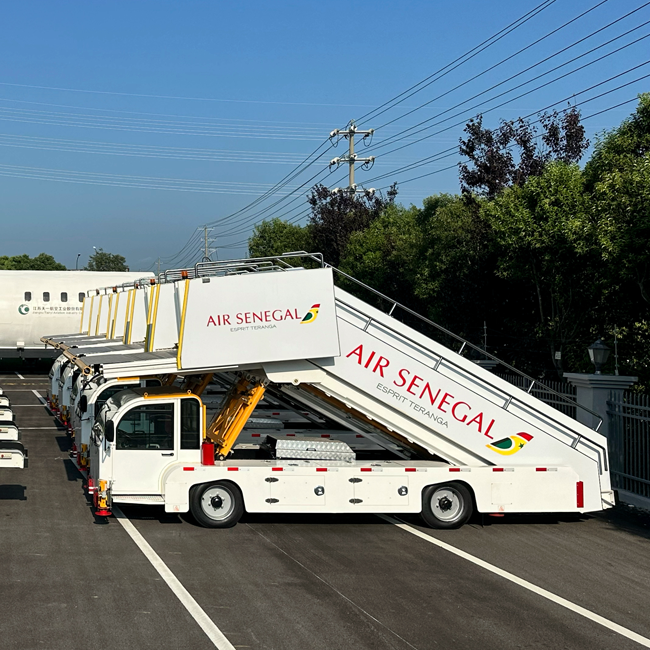

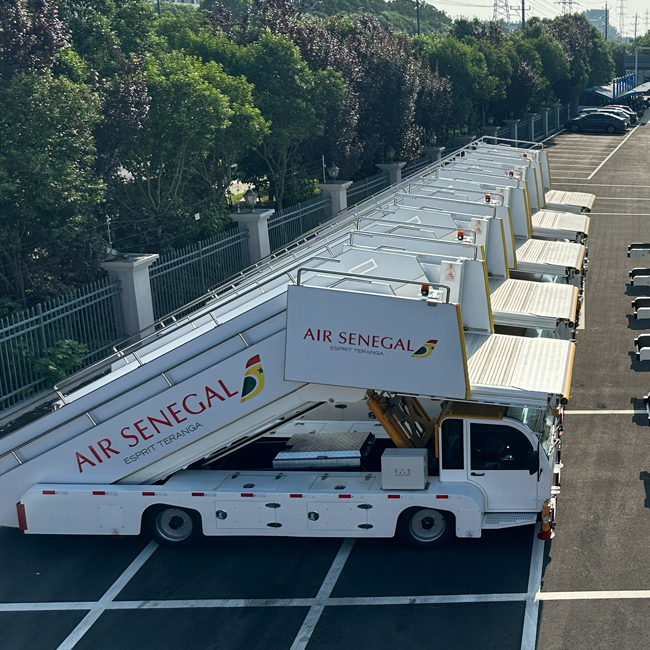

TY-KT58 is a special vehicle designed and manufactured by our company for boarding and disembarking passengers. The product is suitable for A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, B737MAX, DC8, 1L -- 18, 1L -- 62, MD11, MD80 except Airbus A380 aircraft Such as the use of models, the product is self-propelled, the hydraulic transmission system, the vehicle is simple and safe, the platform lifting height 2400mm ~ 5800mm, the product lifting range is wide. Low center of gravity, good stability. Convenient operation, reasonable structure, advanced technology, beautiful appearance, reliability, good maintainability.
Availability:
Product Description

Model:Airline Passenger Stairs

Vehicle detailed parameters


Test item parameter
Quality of maintenance kg 9000
The front axle carries mass  kg 4500
The rear axle carries mass  kg 4500
Maximum speed km/h 45
Total length  mm 7600
Total width  mm 2430
Total height (running condition) mm 3730
wheelbase  mm 3190
Wheel base (front/rear) mm 2000/2000 forward stretch forward stretch
Forward extension  mm 90
Front overhang  mm 1720
Rear overhang  mm 1850
Minimum ground clearance  mm 160
Channel circle outer circle diameter mm 17500
Angle of approach (°) 6
Departure Angle(°) 5
Angle between platform and horizontal plane(°) ≤± 3.5
Longitudinal passage Angle(°) 10
Anterior leg center distance    mm 2140
Center distance of hind leg    mm 2140
Leg longitudinal distance (front/back)   mm 993/4495
Ladder series   Fixed ladder 14
Movable ladder 13
Stern step —
step Pedal width   mm 1500
Vertical plate height   mm 190
Pedal length   mm 275
Effective pedal length  mm 275
Ladder tilt Angle (°) 29~39.5
Platform lifting height   mm 2400~5800
Fixed ladder Inside width of ladder   mm 1500
Handrail height   mm 800
Movable ladder Inside width of ladder   mm 1500
The handrail is high   mm 900
On the platform Platform width   mm 2030
Platform head   mm 2840
Guard height   mm 1100
Travel of movable platform   mm 420
Transition platform long mm 575
wide  mm 1500
