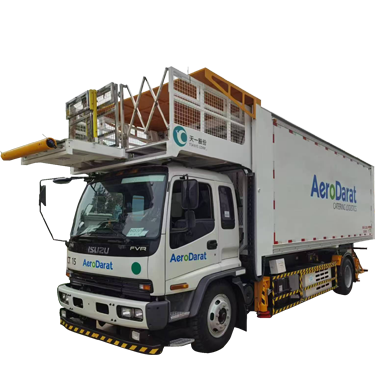

Aircraft Catering Truck

WTJ5160JSP Aircraft Catering Truck is the use of Qingling second class car chassis modification, advanced technology, the use of safe and reliable, the performance is better than the use of other domestic chassis modification of similar products, the car's technical performance is advanced, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability, It can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, B737MAX, DC8, 1L -- 18, 1L -- 62, MD11, MD80 in addition to Airbus A380 aircraft Such as the use of models.
Availability:
Product Description

Model:Aircraft Catering Truck


Main technical parameters table

serial Project Name Specific parameters Part Name Model
1 Chassis Qingling Automobile Co., LTDQL1180XQFRY gearbox MLD-6Q
2 Engine Qingling Isuzu (Chongqing) Engine Co., LTD. 6HK1-TCL Force extractor KRT350R002
3 Engine emission GB 17691-2005 National V Oil pump CBN-F63-BGHL
4 Transmission MLD-6Q chassis QL1180XOFRY
5 Platform working height mm 2650 ~ 6200 engine 6HK1-TCL
6 Body load rating kg 5500 Steering shaft F063
7 Platform left and right adjustment range mm 0 ~ 700 Drive shaft R130
8 Platform expansion adjustment range mm 0 ~ 600 tyre 9.00-20 16PR
9 Fixed platform size (length x width) mm 1900 x 2265 Lift cylinder D160/145-1070
10 Mobile platform dimension (length × width) mm 830 x 1200 Front leg cylinder D90/63-290
11 Body size (length × width × height) ㎜ 7500 * 2500 * 2400 Rear leg cylinder D90/63-290
12 Total front platform load kg 2000 Front platform moving cylinder D40/30-700
13 Fixed platform rated load ㎏ 1400 Front platform telescopic cylinder D40/30-600
14 Mobile platform load rating kg 600 Electric emergency pump 800601632
15 Chassis lifting speed mm/s 80-150. Manual emergency miscellaneous PMO 50-s
16 Wheelbase mm 5550

17 Departure Angle 9.5 °

18 Minimum ground clearance mm 215

19 Overall dimension (length × width × height) mm 10400 * 2500 * 3800

20 Maintenance weight kg 12300
