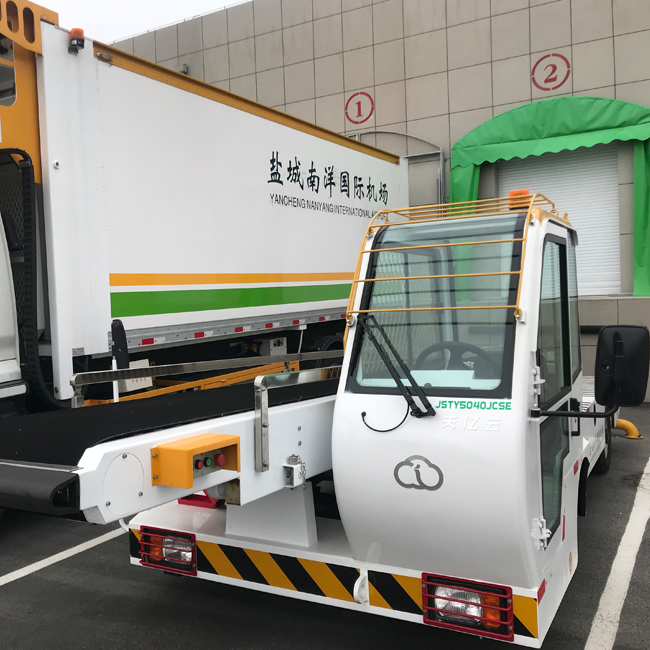

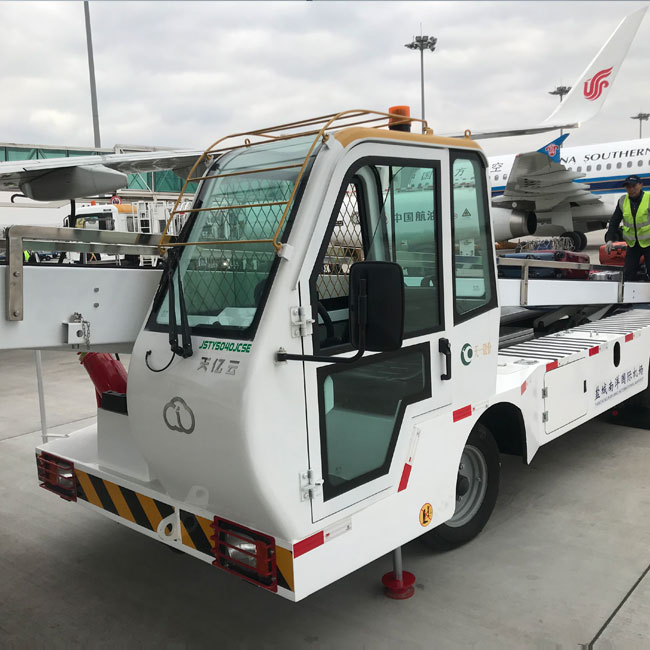

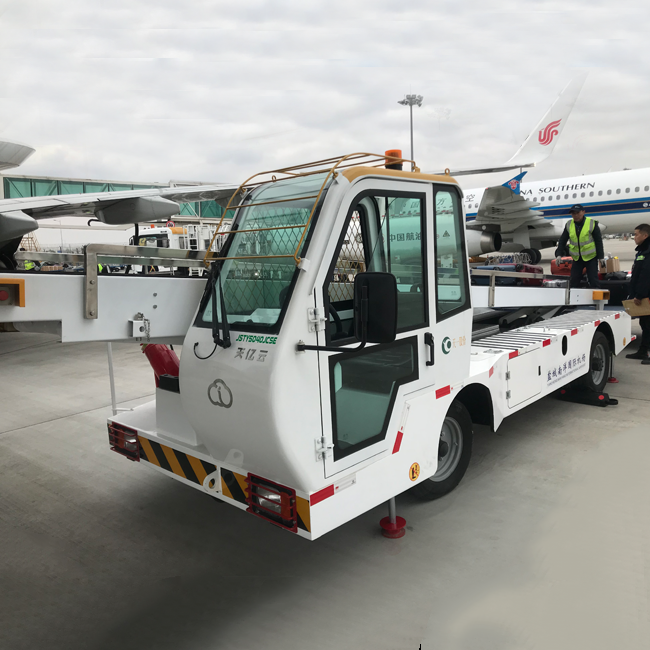

Conveyor Belt Loader body composed of high strength steel welding. The chassis is covered with a cover plate and is detachable. Tianyi self-made chassis, which is equipped with four hydraulic outriggers. The chassis is composed of transmission, steering, braking and the cab. The transmission system controls the variable frequency speed regulation drive motor as the prime mover through the motor controller, and transmits power through the main reduction drive axle, rim and tires. The drive motor controller and drive motor adopt products from renowned companies; The suspension is made of longitudinal leaf springs at the front and rear. The steering system is driven by an electric hydraulic pump through a fully hydraulic steering gear, which drives the steering hydraulic cylinder to control the steering of the front wheels. The braking system is a vacuum-assisted braking system provided by an electric vacuum pump, featuring a front disc and rear drum type, and a dual-pipeline hydraulic braking system.
Conveyor Belt Loader configuration five
Driving motor model: HCDM030HP2
Model of driving motor controller: HC30LKPIC-K21-V1-TY
Steering shaft model: 3000000-HY430A
Drive shaft model: 2400000-HY540A
The working range of the conveyor belt (mm) : The lifting range at the front end: 1160-4380
The lifting range at the rear end: 380 to 1560
Transmission speed (m/s) : 0.16-0.5
Conveyor belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 135
Overall dimensions (length × width × height) (mm) : 8200×2150×1920
Wheelbase (mm) : 2900
Maximum speed (km/h) : 30
Curb weight (kg) : 3500
Endurance capacity (km+t) for small airports: 250+375
Large airports: 251+372
Medium-sized airport: 251+372
Other features: Optional cab
Chassis model: JSTY5040JCSE-1000000A
The outer diameter of the channel circle (mm) : 15400
Hydraulic motor model: HCDM007MG1
Hydraulic motor controller model: HCDM007CL1
Model of the energy storage device assembly: L200B01
Total energy storage device (kWh) : 70.48
