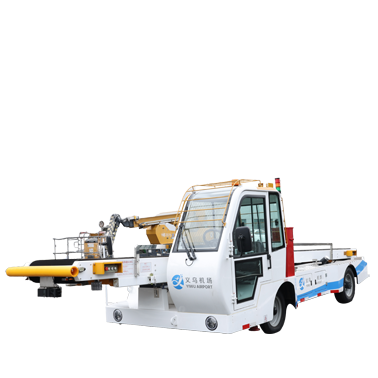

Air Bulk Cargo Loader

JSTY5040JCSE bulk cargo loader (electric type), suitable for all tarmac and airport working area road, can work all weather, with good rain, moisture, corrosion resistance, suitable for working environment: altitude ≤3500m, wind speed 120m/h. The temperature (℃) ranges from -35 to 65. The overall shape of the car is beautiful, reasonable layout. It has the advantages of good dynamic performance, wide field of vision, complete functions, easy operation, reliable use and self-diagnosis fault, etc., it is the ideal airport ground equipment.
Product Description

Model:Self-propelled belt loader

Main performance indicators:

Serial name parameter name Model number
1 Vehicle length × width × height (mm) 8200×2150×2130 chassis JSTY5040JCSE1000000A
2 Height range of front end of roller frame  mm 1160---4380 Driving motor HCDM030HP2
3 Height range of the rear end of the roller frame  mm 380--1560 Drive motor controller HC30LKPIC-K21-V1-TY
4 Total vehicle mass (kg) 3500 Oil pump motor assembly HCDM007MG1
5 Conveyor belt width (mm) 700 Oil pump motor controller HCDM007CL1
6 Transfer frame width (mm) 880 Energy storage assembly L228C01
7 Maximum tilt foot of transfer frame (°) 28° Energy storage unit CB230
8 Uniform bearing capacity (kg) 1080 Steering shaft 3000000-HY430A
9 Load carrying capacity per unit (kg) 400 Drive shaft 2400000-HY540A
10 Transfer speed (m/s) 0.16-0.5 Front tyre 215/70R15CLT
11 Maximum speed (no load) (km/h) 35 Rear tyre 215/70R15CLT
12 Wheelbase (mm) 2900 Hydraulic pump GHP2A-D-12-FG
13 Minimum stable speed (km/h) 0.3 Roller motor JS-250(030-0426)
14 Channel circle outer circle diameter (mm) 15400 Front lift cylinder D100/60-590
15 Minimum departure Angle (mm) 31 Rear lift cylinder D80/50-180
16 Minimum approach Angle (mm) 10.5 Supporting cylinder D55/40-220
17 Wheel base front/rear (mm) 1730/1680 Transfer frame JSTY5040JCSE
18 Longitudinal passage Angle (°) 20 Solenoid valve TY.603.017
19 Driving range (km) 326 Steering gear TY.603.021
20 Endurance (large airport) (km+t) 251+372 Motor drive JS2507
21 Endurance (medium airport) (km+t) 251+372 Conveyer belt /
22 Endurance (small airport) (km+t) 250+375 Heating and cooling air conditioning 347.76V
23 Driving motor power (kw/r/min) 30/3000 Battery extinguishing device EVFH-YZ-Q-N-0.12/0.8-J
24 Energy storage device assembly Ningde era (kwh) 70.48 Machine dependent system TY-ASD(optional)
25 Discharge energy density (WH/KG) PED=160.26 Monitoring system DS-MP7508/GLE

Anti-collision system TY-ASD
