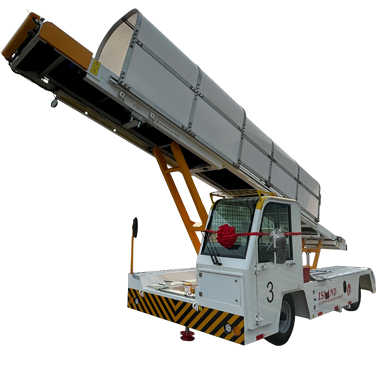

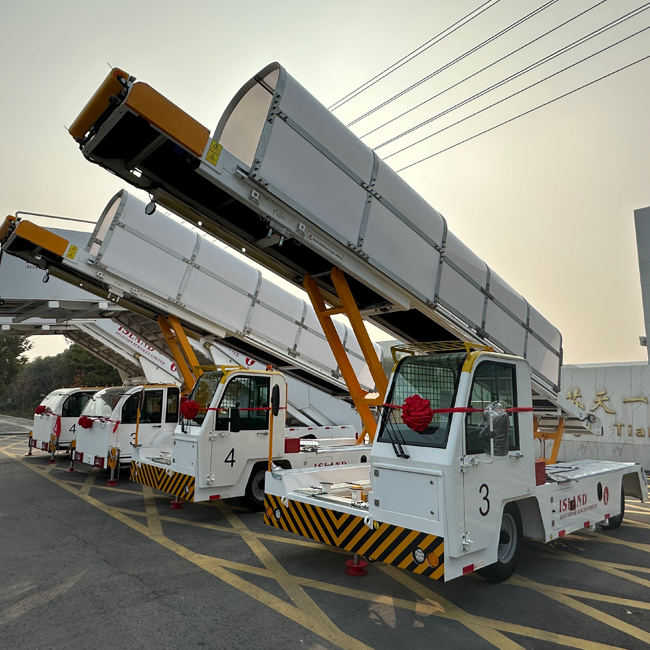

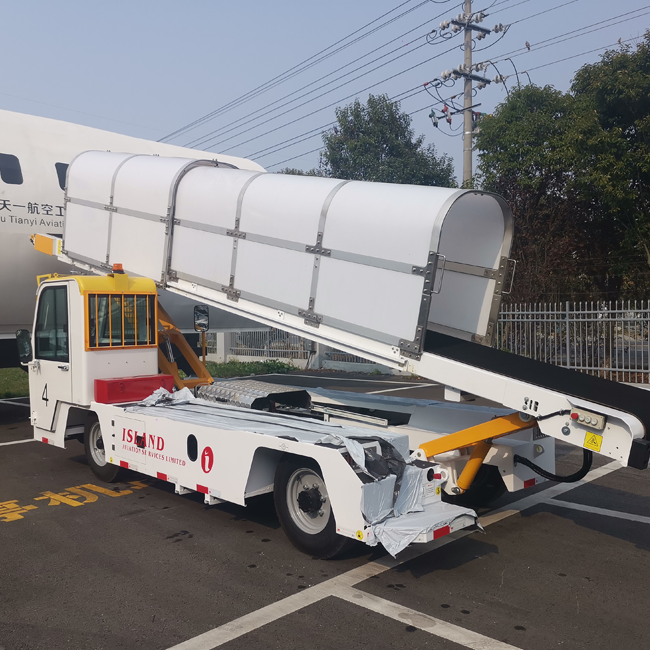

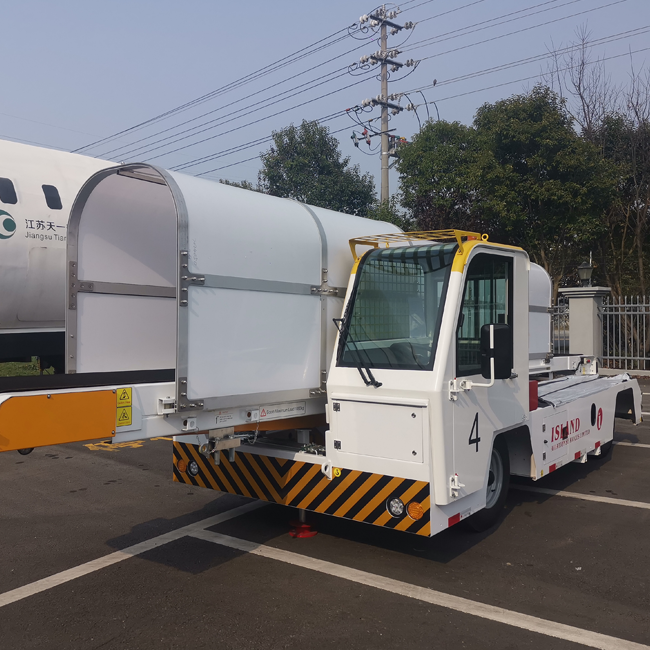

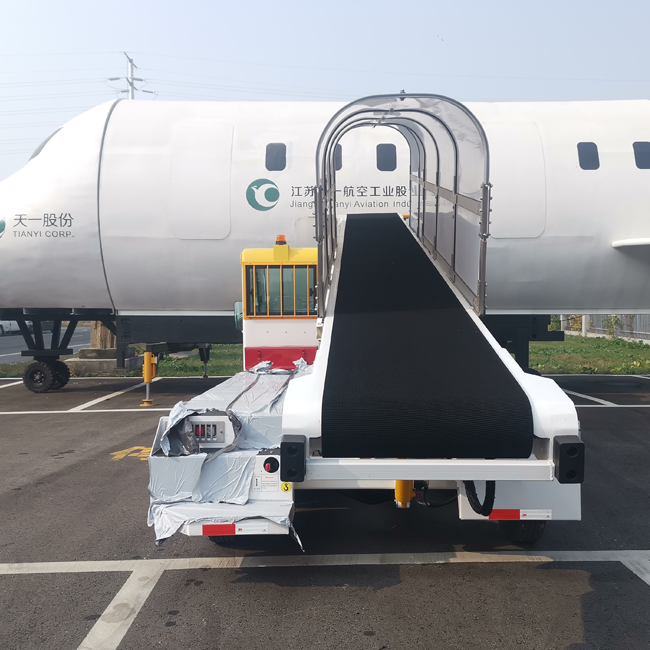

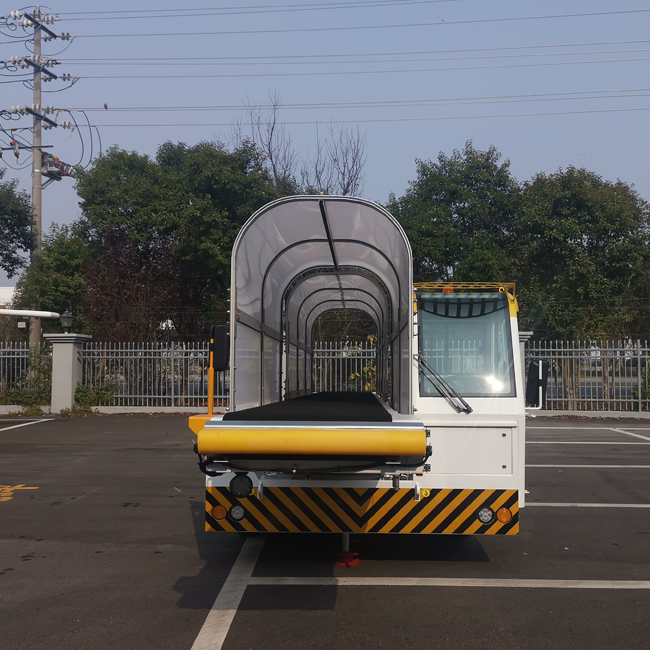

TY-XC80 Self-propelled baggage belt loader is a special vehicle independently designed and manufactured by our company. It is specially used for loading and unloading luggage, light cargo and mail in and out of the bottom cabin of the aircraft. The main assembly of this model adopts the configuration of mature automobile products at the corresponding level at home and abroad
Self-propelled baggage belt loader configuration two Main technical parameters table
| Diesel engine | Cummins | type | Four - stroke, water - cooled, non - direct injection, overhead valve engine | Speed changer | Transmission type | Single - stage, two - phase, three - element synthesis |
| Maximum power kW/r/min | 36.5/2500 | Gear number and speed ratio | Forward 1 gear I: 2.187 Reverse 1 gear R:2.235 | |||
| Maximum torque N·m/r/min | 186/1100~1700 | |||||
| Minimum fuel consumption g/kw·h | 224 | Maneuvering mode | Automatic shift | |||
| Cab type | enclosed | Number of passengers | 1 | |||
| Total length mm | 8140 | Total width (excluding cab) | 2100 | |||
| Total height (without warning lights total height/including warning lights) | 1960 | Maintenance weight kg | 3700 | |||
| Front axle weight (no load) kg | 2500 | Rear axle mass (no load) | 1250 | |||
| Wheelbase mm | 3000 | Wheel base (front/rear) mm | 17020/1680 | |||
| Approach Angle (º) | 11 | Departure Angle (º) | 16 | |||
| Maximum speed km/h | 25 | Minimum ground clearance mm | 165 | |||
| Conveyor belt width mm | 700 | Transfer speed m/s | 0.16~0.5 | |||
| Conveyor belt front-end lifting range mm | 1170~4330 | Conveyor belt rear end lifting range mm | 520~1540 | |||
Main configuration
| serial | Part Name | Model |
| 1 | chassis | Homemade chassis |
| 2 | bridge | Self-made left hand drive |
| 3 | engine | QSF2.8 |
| 4 | gearbox | Y43280E |
| 5 | Front bridge | JSTY530 |
| 6 | Rear axle | JSTY13014 |
| 7 | Gear pump | CBHZ-F25 |
| 8 | tyre | meridian |
| 9 | Conveyer belt | 700mm |
| 10 | Combined instrument | HZB908 |
| 11 | Emergency hand pump | TY. 602.013 |
| 12 | Hose assembly | BL80B.620 |
| 13 | Hydraulic pump | TY. 602.014 |
| 14 | Solenoid valve | TY. 603.017 |
| 15 | Steering gear | TY.603.021 |
| 16 | Belt drive motor | TY.602.015 |
