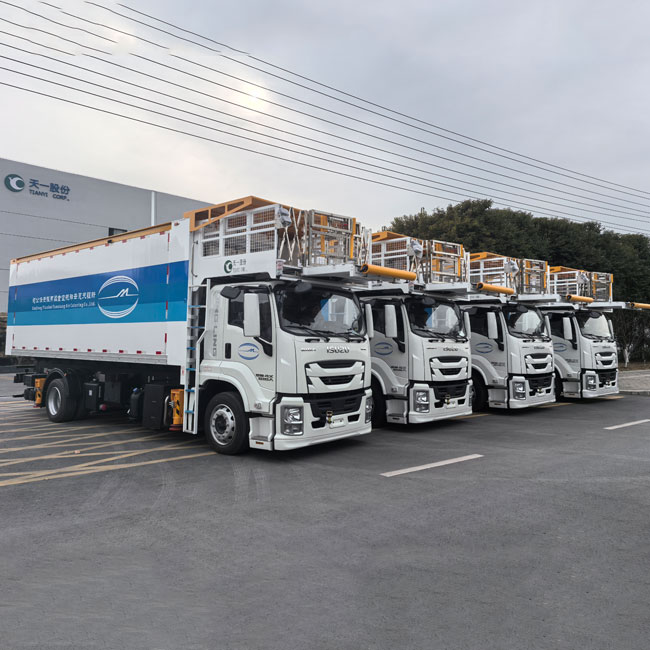

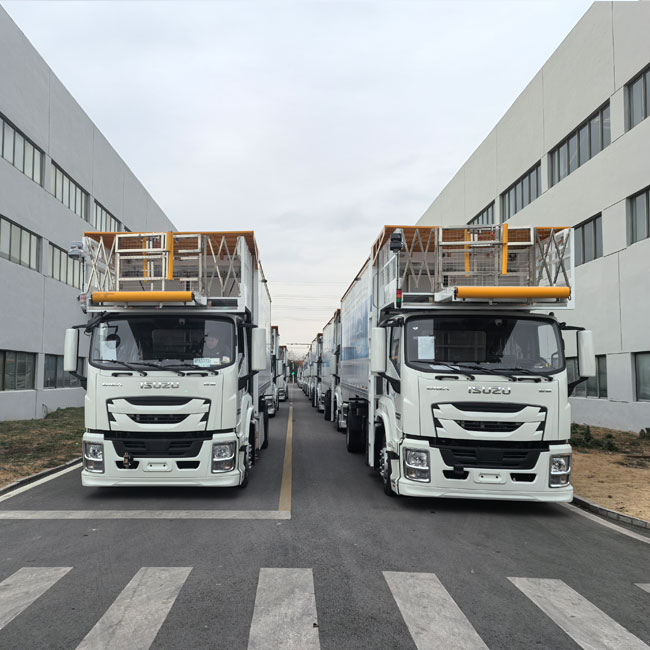

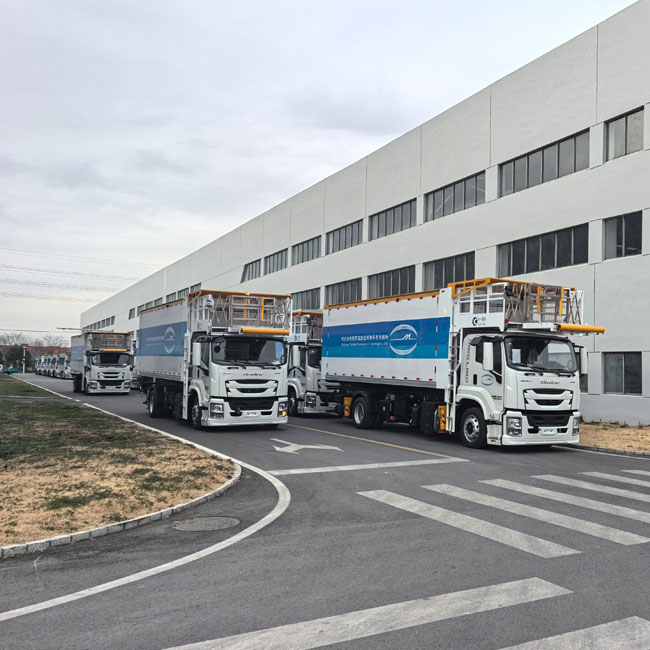

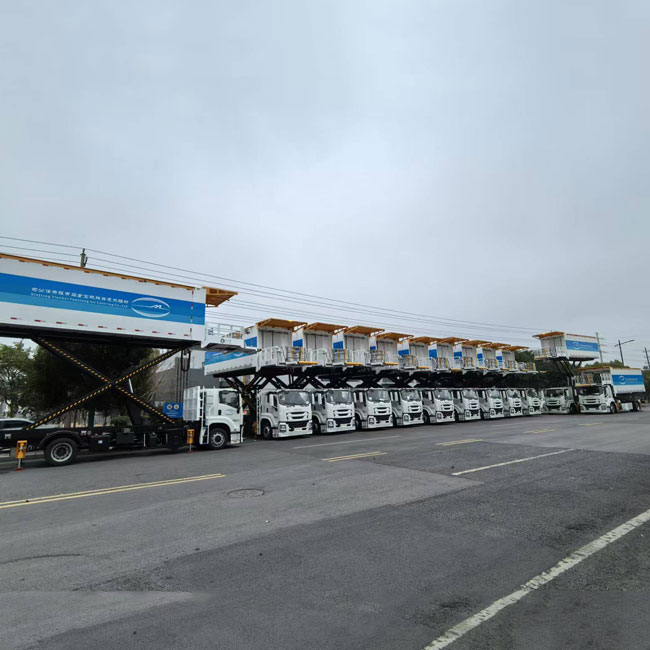

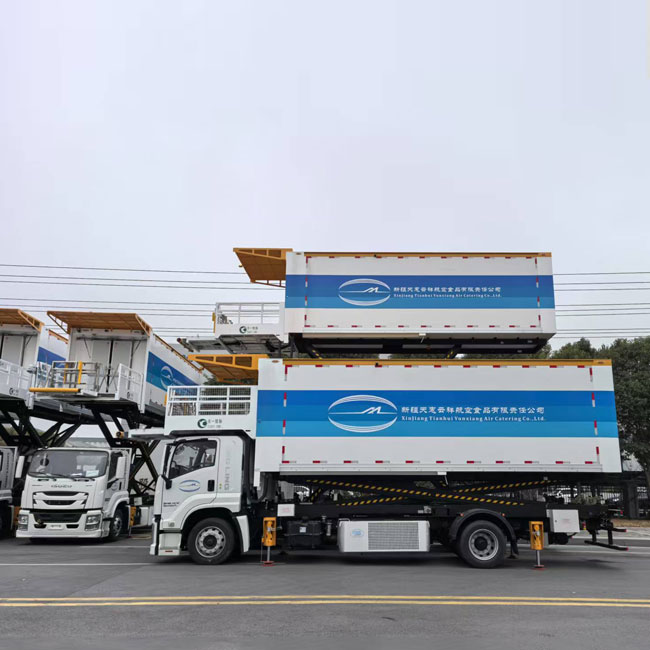

Model：Airport Catering truck
Product implementation standard
MH/T6016-2017 "Airline Food Truck"
AC-137-CA-2019-04 "Aviation Food Truck Test Specification"
JG5099-1998 Safety Rules for Working Machinery at Altitude
GB7258-2017 "Motor Vehicle Operation Safety Technical Conditions"
AHM910 Basic Requirements for Aeronautical Ground Equipment
AHM913 Basic Safety Requirements for Aviation Ground Equipment
AHM927 Functional Specification for Food Carts
The design, manufacture and testing of vehicle equipment shall adopt the latest and implemented standards and specifications suitable for the project.
These criteria include:
China national standard and China industry standard (GB,GJB,MH, etc.);
International authoritative organization standard (ISO, ICAO and IATA, IEC, EN, BS, DIN, SAE, etc.);
China national fire standards, local fire control regulations;
Chinese and local regulations on fuel use.
Main technical parameters table
| serial | Project Name | Specific parameters | Part Name | Model |
| 1 | Chassis | Qingling Automobile Co., LTDQL1180XQFRY | gearbox | MLD-6Q |
| 2 | Engine | Qingling Isuzu (Chongqing) Engine Co., LTD. 6HK1-TCL | Force extractor | KRT350R002 |
| 3 | Engine emission | GB 17691-2005 National V | Oil pump | CBN-F63-BGHL |
| 4 | Transmission | MLD-6Q | chassis | QL1180XOFRY |
| 5 | Platform working height mm | 2650 ~ 6200 | engine | 6HK1-TCL |
| 6 | Body load rating kg | 5500 | Steering shaft | F063 |
| 7 | Platform left and right adjustment range mm | 0 ~ 700 | Drive shaft | R130 |
| 8 | Platform expansion adjustment range mm | 0 ~ 600 | tyre | 9.00-20 16PR |
| 9 | Fixed platform size (length x width) mm | 1900 x 2265 | Lift cylinder | D160/145-1070 |
| 10 | Mobile platform dimension (length × width) mm | 830 x 1200 | Front leg cylinder | D90/63-290 |
| 11 | Body size (length × width × height) ㎜ | 7500 * 2500 * 2400 | Rear leg cylinder | D90/63-290 |
| 12 | Total front platform load kg | 2000 | Front platform moving cylinder | D40/30-700 |
| 13 | Fixed platform rated load ㎏ | 1400 | Front platform telescopic cylinder | D40/30-600 |
| 14 | Mobile platform load rating kg | 600 | Electric emergency pump | 800601632 |
| 15 | Chassis lifting speed mm/s | 80-150. | Manual emergency miscellaneous | PMO 50-s |
| 16 | Wheelbase mm | 5550 | ||
| 17 | Departure Angle | 9.5 ° | ||
| 18 | Minimum ground clearance mm | 215 | ||
| 19 | Overall dimension (length × width × height) mm | 10400 * 2500 * 3800 | ||
| 20 | Maintenance weight kg | 12300 |
