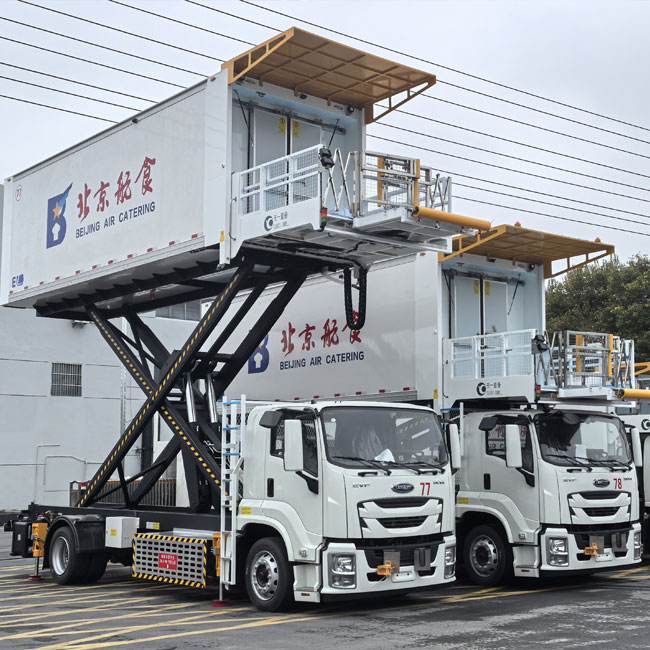

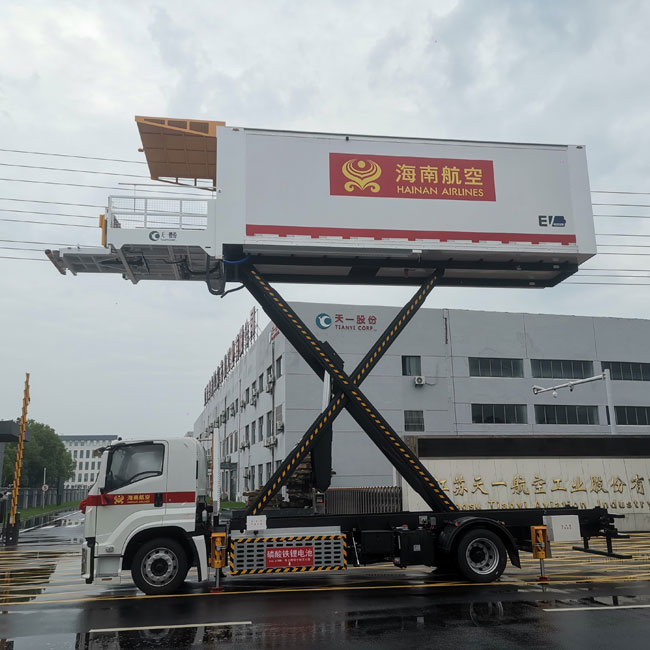

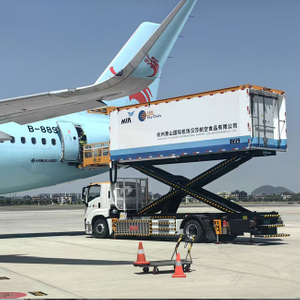

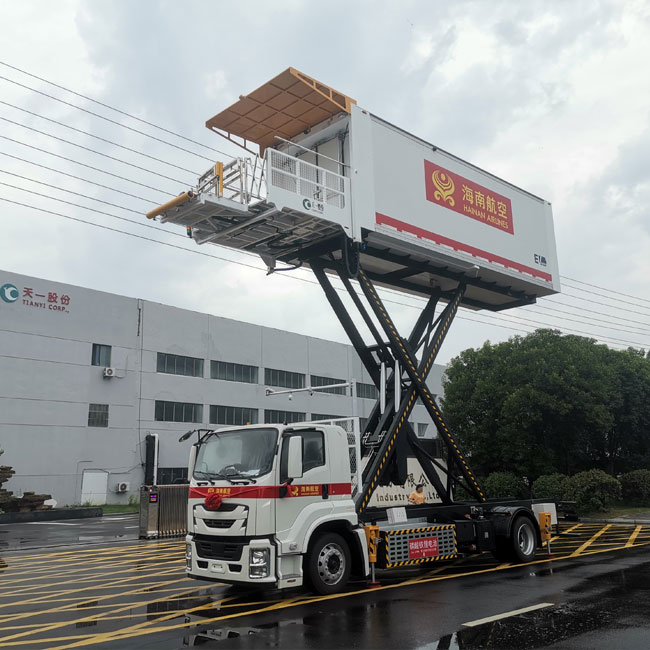

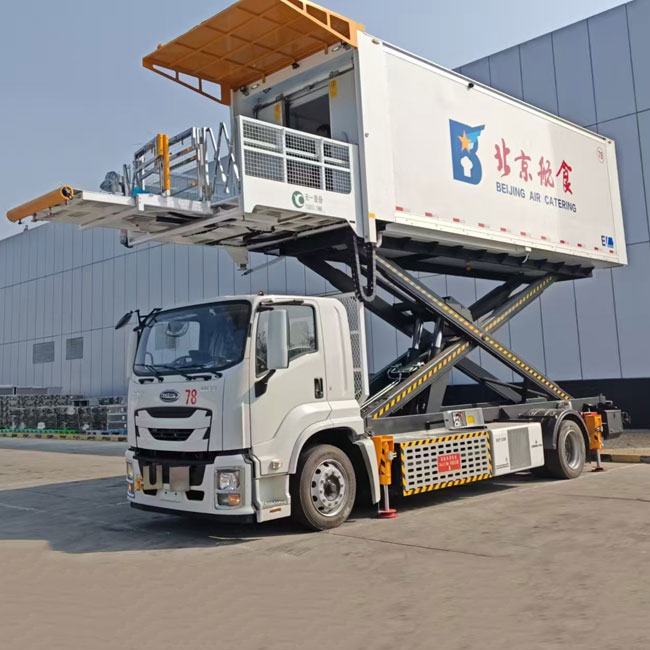

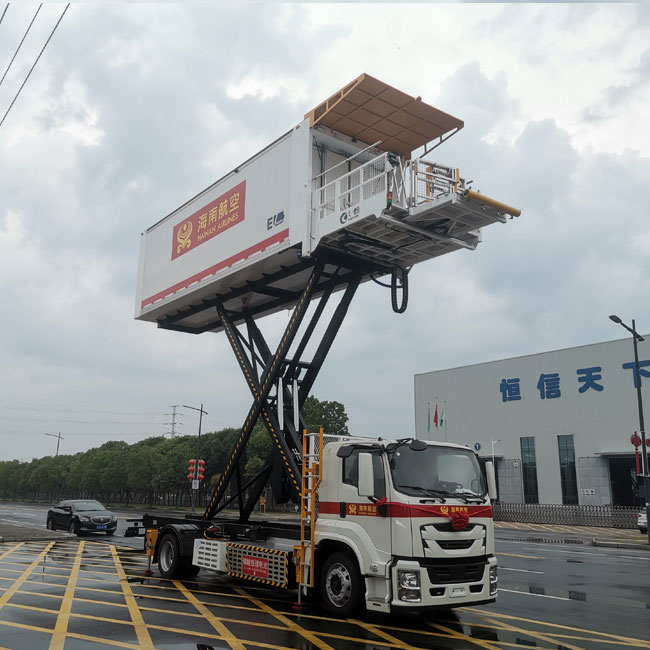

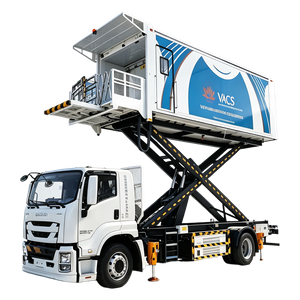

Airport aviation ground Catering truck

The Airport aviation ground Catering truck has been tested by the state. The vehicle's gross weight is 13,790 tons, the rated load of the van is 6 tons, the total mass of the vehicle is 19.99 tons, it is equipped with lithium iron phosphate batteries (CATL New Energy), and the storage capacity is 246kWh. According to the two-layer design, they are respectively arranged on both sides of the longitudinal beams of the vehicle frame.

Airport aviation ground Catering truck Configuration Seven main parameters

Driving motor model: GC-TM1300-01

Model of driving motor controller: GC-CU1300-01

Model of the energy storage device assembly: L228H02

Platform working height (mm) : 2550-6200

Rated load of the box body (kg) : 6300

Rated load of the front platform (kg) : 3000

Rated load (kg) of the movable part of the front platform: 800

The left and right adjustment range (mm) of the front platform activity part: 0-700

The telescopic adjustment range (mm) of the movable part of the front platform: 0-600

The dimensions of the fixed part of the front platform (length × width) (mm) : 2050x2265

Dimensions of the movable part of the front platform (length × width) (mm) : 950x1200

Curb weight (kg) : 13,590

Overall dimensions (length × width × height) (mm) : 10500×2500×3700

Range (km) : 395

Chassis model: QL1180BEVELQHY

External dimensions of the box body (length × width × height) (mm) : 7500×2500×2400

Rated load (kg) of the fixed part of the front platform: 2200

Total energy storage device (kWh) :246.67
