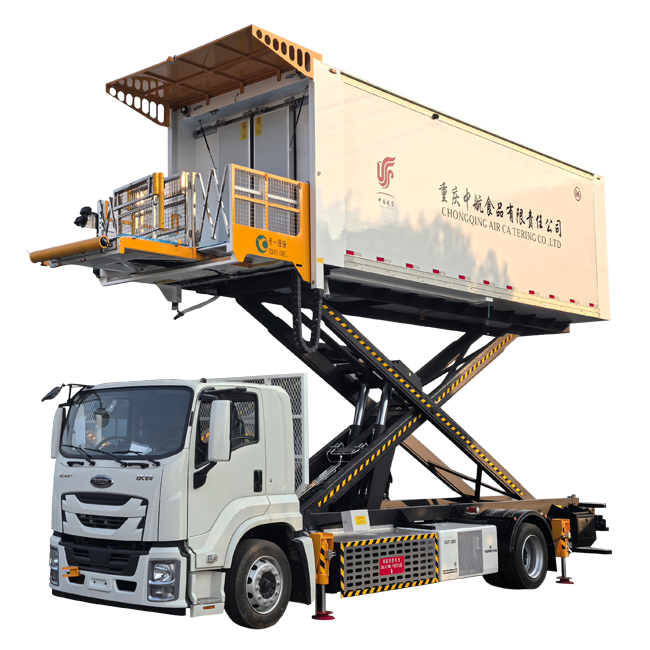

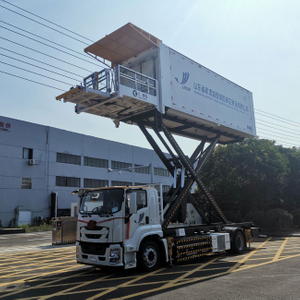

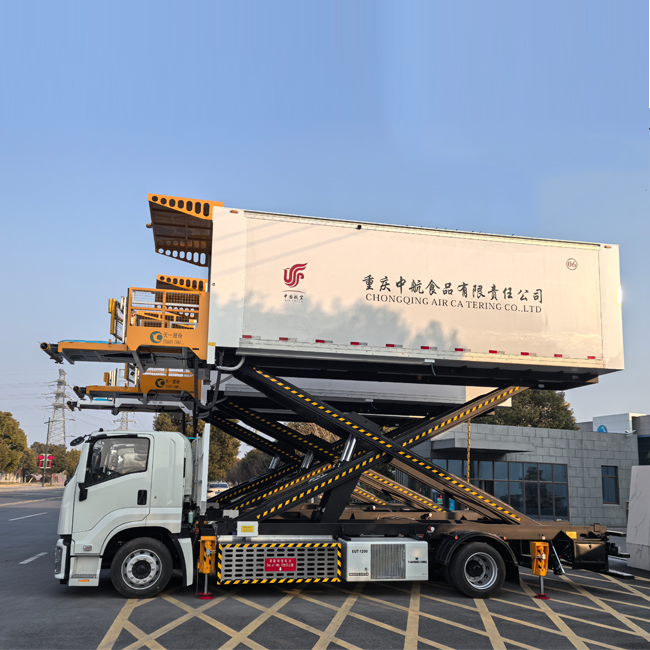

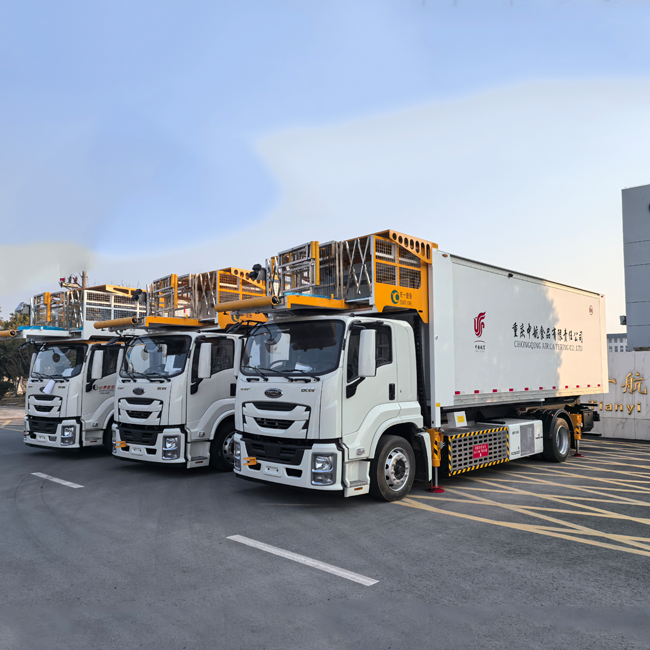

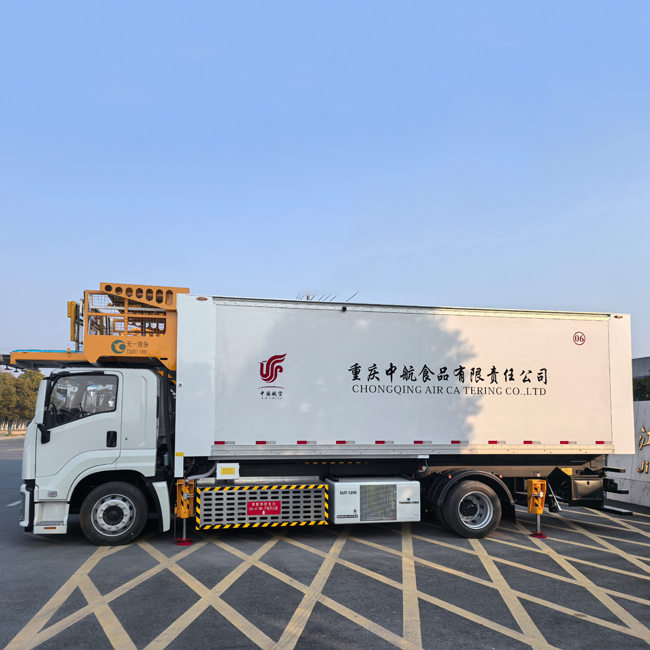

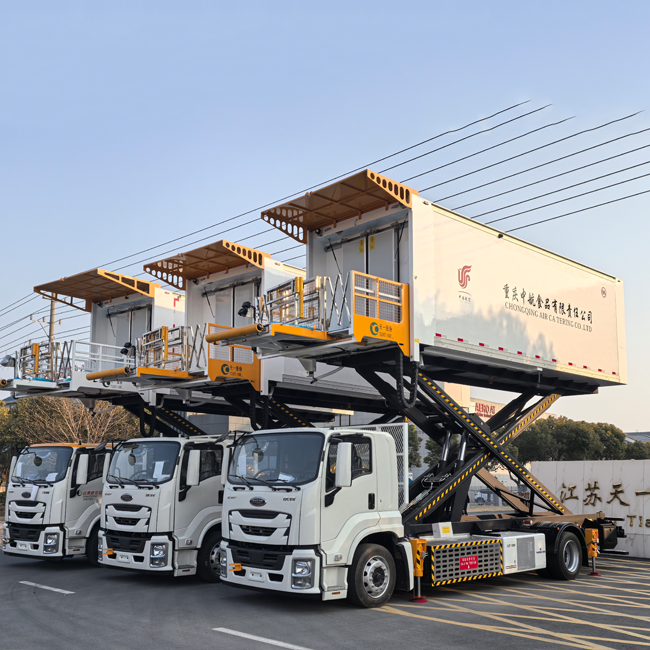

JSTY5180JSPE Catering truck is a kind of ground special equipment produced by Jiangsu Tianyi Aviation Industry Co., LTD. It is mainly composed of the QL1180XQFRY type unpowered chassis produced by Qingling Automobile Co., Ltd. converted into electric chassis, support feet, scissor-type hydraulic lifting mechanism, car body, elevatable front platform, hydraulic system, electrical system, etc. The product can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft Use.
JSTY5180JSPE Catering truck Configuration V Main assembly structure and main technical parameters
| Serial | name | parameter | name | Type number |
| 1 | Vehicle length × width × height (mm) | 10500×2500×3700 | chassis | QL1180BEVELQHY |
| 2 | Wheelbase (mm) | 5550 | Vehicle controller | VCU12 |
| 3 | Wheel base front/rear (mm) | 1960/1850 | Drive motor | GC-TM1300-01 |
| 4 | Approach Angle (°) | 9.5 | Drive motor controller | GC-CU1300-01 |
| 5 | Channel circle outer circle diameter (mm) | 20950 | Energy storage assembly | L228H02 |
| 6 | Departure Angle (°) | 5 | Energy storage unit | CB230 |
| 7 | Longitudinal passage Angle (°) | 7 | Steering shaft | PF065 |
| 8 | Maintenance weight (kg) | 13790 | Drive shaft | R130 |
| 9 | Total mass (kg) | 19990 | Front/rear tires | 295/60R22.5 18PR |
| 10 | Maximum speed (km/h) | 80 | Oil pump motor | HCDM030HP2 |
| 11 | Minimum stable speed (km/h) | 0.8 | Hydraulic pump | CBHZ-F25-ALΦL |
| 12 | Driving distance (km) | 390 | Moving platform cylinder | D24-05A5-24CE-700 |
| 13 | Platform working height (mm) | 2550-6100 | Telescopic platform cylinder | D24-05A5-24CE-600 |
| 14 | Minimum ground clearance (mm) | 165 | Lift cylinder | D160/145-1070 |
| 15 | Rated carriage load (kg) | 6000 | Front/rear leg cylinder | D90/63-290 |
| 16 | Front platform rated load (kg) | 2500 | Electric emergency pump | 800601632 |
| 17 | Rated load capacity of moving part of front platform (kg) | 700 | Hand pump | PMO 50-s |
| 18 | Rated bearing capacity of fixed part of front platform (kg) | 1800 | Charging pile | RHDC120K-D |
| 19 | Left and right adjustment range of moving part of front platform (mm) | 0-700 | Hydraulic tailplate for food truck | CD-QB15/135ZS |
| 20 | Dimension of fixed part of front platform (length × width mm) | 2050×2265 | Safety support system | TY-ASD （optional） |
| 21 | Moving part of front platform (telescopic adjustment range mm) | 0-700 | Whole-vehicle monitoring | D5808(4G/GPS） |
| 22 | Dimension of moving part of front platform (length × width) | 950×1200 | 360 circumnavigation system | YG-SVMS-3D |
| 23 | Internal dimensions of car body (length × width × height mm) | 6750×2360×2200 | ||
| 24 | External dimensions of body (length × width × height mm) | 7500×2500×2400 | ||
| 25 | Temperature range (°) | -35-65 | ||
| 26 | Assembly voltage V | 540.96 | ||
| 27 | Total energy stored Kwh | 246.67 | ||
| 28 | Rated power/speed kw/r/min | 100/1270 |
