Hand-pushed Passenger Stairs

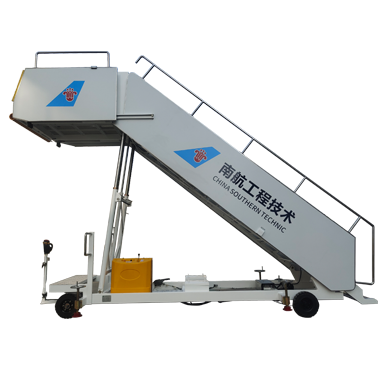

WTJ3600TKT is a kind of non-motorized passenger elevator developed by our company. It is beautiful, lightweight and practical. Adopting the principle of parallel four-sided row, it can be adjusted stepless according to the height of the aircraft door. No matter how it is adjusted, the pedal and the upper platform are always in a horizontal position, and have a continuous ladder body. The height of the passenger ladder platform from the ground is 2640 ~ 3600mm. Applicable to A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, 1L-18 and other series of passenger aircraft, but also can be used as a working ladder for the aircraft crew. As a hand-pushed non-motorized passenger ladder, there is no vehicle chassis and engine, so there is no fuel filling and maintenance costs and greatly reduce the cost of car purchase, economic and durable. And because of the slow speed of manual operation, docking aircraft door safety, at the same time no noise, no pollution. The passenger ladder itself is light in weight, light in operation, flexible and smooth in steering, suitable for 1-2 staff in close proximity to the aircraft to push, longer distance can be towed by baggage trailer, so it is especially suitable for medium and small terminals and large international airports and airlines with parking apron working area.

Availability:



Inquire

Product Description

Model：Model WTJ3600TKT Hand push passenger Stairs

Main technical parameters

Serial	Parameter name		parameter
1	The carrying capacity of the whole ladder		33 people
2	Maximum tilt Angle of ladder body		39°
3	Safety factor of ladder against wind tipping during operation		0.73
4	Safety factor of the whole ladder against wind tipping when parked		0.9
5	Maximum tilt Angle of ladder body		39°
5	Overall dimensions of the vehicle (length × width × height)		6500×2230×3650
6	Platform size		2000×1400
7	wheelbase		4030
8	Wheel pitch	Front wheel pitch	900
		Rear wheel pitch	1550
9	Total vehicle quality		1780kg
10	Ladder series		18
11	allow speed	Maximum towing speed	20km/h
		Maximum operating speed	3km/h
12	Pedal height		140-200
13	Channel circle outer circle diameter		14000mm
14	Departure Angle		5°
15	Angle of approach		33°
16	Maximum tilt Angle		39°
17	Height adjustment mode		Step parallelogram displacement formula
18	Walking mode		Push or pull by hand
19	Working height of passenger elevator car		2640~3600
20	Tyre specification		4.00-8/5.00-8
21	Minimum ground clearance		160mm
