Aircraft passenger boarding car

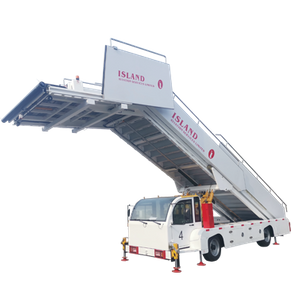

JSTY5070KTE Aircraft passenger boarding car is mainly composed of Qingling EV100 electric second class chassis modification assembly, fixed ladder and sliding ladder, tail ladder, hydraulic system, electrical system, canopy and so on.
Availability:
Product Description

Model:Aircraft passenger boarding car



Product standard
IATA AHM 920 Motorized passenger elevator function details
MH/T6029-2014 Passenger boarding ladder
EN12312-1 Specific requirements for aviation ground equipment -1 passenger boarding ladder
GB/T 18488-2006 Motor for electric vehicles and its controller
GB/T 24347-2009 DC/DC Converter for electric vehicles
GB/T 18384-2001 Safety requirements for electric vehicles
GB/T 18487-2001 Conduction charging system for electric vehicles
GB/T 20234-2015 Connecting devices for conductive charging of electric vehicles
Communication protocol between non-on-board conductive chargers and battery management systems for electric vehicles
DB11/Z993-2013 Technical Specification for Electric Vehicle Remote Service and Management System



Main performance indicators:

Serial name parameter name Model number
1 Height range of passenger elevator 2150~4800mm chassis QL1070BEVECHA2Y
2 Platform depth 4150mm Chassis vehicle controller VCU02
3 Width of upper platform 2200mm Driving motor YTD060W23
4 Step depth 292mm Drive motor controller KTZ50X35S
5 Step width 1500mm Energy storage assembly L173TB2
6 Stair height 192mm Energy storage unit CB220
7 Itinerary of activity platform 0-400mm Steering shaft F033
8 Maximum Angle between ladder body 37.5° Drive shaft R048
9 Minimum ground clearance 160mm tyre 7.00R1614PR
10 Channel circle outer circle diameter 16100mm Oil pump motor HCDM007MG1
11 Wheelbase 3360mm Oil pump motor controller HCDM007CL1
12 Front/rear wheel base 1685/1525mm Master cylinder JSTY5070KTE-4400000M
13 Overall dimensions (length × width × height) 7450×2500×3600mm Trimmer cylinder JSTY5070KTE-2700000M
14 Quality of finished vehicle 7550 Supporting leg cylinder JSTY5070KTE-0101250M
15 Number of passengers 88 people Platform cylinder JSTY5070KTE-3230000M
16 Front axle bearing mass 2590kg Hydraulic pump CBWKGY-F325 AFP3
17 Rear axle bearing mass 4960kg Emergency electric pump 800602353
18 Longitudinal passage Angle 16.3° Alarm light 24V
19 Maximum speed 80
20 Minimum stable speed 0.7
21 Driving motor power 60kw
22 Endurance Working condition of small airport: 210km+105 times
Working condition of large airport: 214km+106 times
Medium airport operating condition: 212km+105 times

23 Assembly voltage 618.24V
24 Total energy stored 106.95kwh
25 Temperature range -35~65
26 Battery energy density 153.84Wh/kg
