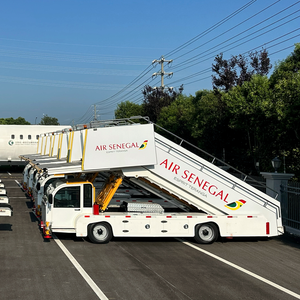

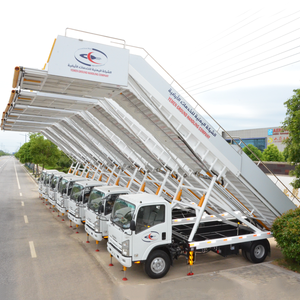

Airport passenger boarding car

Airport passenger boarding car, purely electric airport ground device for passengers to get on and off planes. The whole machine adopts Qingling EV100 electric class II chassis. Main accessories are selected famous brand products, high reliability, advanced technical performance, complete functions. Pure electric energy saving performance is superior in line with the demand for green environmental protection; The product has beautiful appearance, wide lifting range, wide application range, simple, safe and advanced design can meet the current use of all domestic aircraft models.
Availability:
Product Description

Model:Airport passenger boarding car



Product standard
GB 7258 Technical conditions for safety of motor vehicle operation
GB 1589 Limits for dimensions, shaft loads and mass of external profiles of motor vehicles, trailers and motor trains
GB/T 18384.1 Safety requirements for electric vehicles - Part 1: on-board energy storage devices
Safety requirements for electric vehicles - Part 2: Functional safety and failure protection
GB/T 18384.3 Safety requirements for electric vehicles - Part 3: Protection against personal shock
Connection devices for conductive charging of electric vehicles -- Part 1: General requirements
GB/T 20234.3 Connection devices for conductive charging of electric vehicles -- Part 3: DC charging interface
GB/T 27930 Communication Protocol between non-on-board conduction charger and battery management system for electric vehicles
Basic requirements for IATA AHM910 aircraft ground support equipment
IATA AHM913 Basic Safety requirements for aircraft ground support equipment
IATA AHM914 Ground support equipment compatibility with aircraft models
IATA AHM915 standard control
MH/T6029-2014 Passenger boarding ladder
Technical specification for IATA AHM920 self-actuated telescopic passenger elevator car
Design and Safety Principles for passenger boarding stairs of SAE-ARP836B
Connection devices for conductive charging of electric vehicles -- Part 1: General requirements
GB/T 20234.3 Connection devices for conductive charging of electric vehicles -- Part 3: DC charging interface
GB/T 20234-2015 DC charging port
General technical requirements for ground service equipment of AC-137-CA-2015-20R1 electric aircraft
C-CCF/XFJJ-01 Electric bus power lithium ion battery box fire prevention and control device general technical requirements
Technical requirements for aircraft safety of AC-137-CA-2020-01 aircraft ground service equipment



Main performance indicators:

Serial name parameter name Model number
1 Height range of passenger elevator 2150~4800mm chassis QL1070BEVECHA2Y
2 Platform depth 4150mm Chassis vehicle controller VCU02
3 Width of upper platform 2200mm Driving motor YTD060W23
4 Step depth 292mm Drive motor controller KTZ50X35S
5 Step width 1500mm Energy storage assembly L173TB2
6 Stair height 192mm Energy storage unit CB220
7 Itinerary of activity platform 0-400mm Steering shaft F033
8 Maximum Angle between ladder body 37.5° Drive shaft R048
9 Minimum ground clearance 160mm tyre 7.00R1614PR
10 Channel circle outer circle diameter 16100mm Oil pump motor HCDM007MG1
11 Wheelbase 3360mm Oil pump motor controller HCDM007CL1
12 Front/rear wheel base 1685/1525mm Master cylinder JSTY5070KTE-4400000M
13 Overall dimensions (length × width × height) 7450×2500×3600mm Trimmer cylinder JSTY5070KTE-2700000M
14 Quality of finished vehicle 7550 Supporting leg cylinder JSTY5070KTE-0101250M
15 Number of passengers 88 people Platform cylinder JSTY5070KTE-3230000M
16 Front axle bearing mass 2590kg Hydraulic pump CBWKGY-F325 AFP3
17 Rear axle bearing mass 4960kg Emergency electric pump 800602353
18 Longitudinal passage Angle 16.3° Alarm light 24V
19 Maximum speed 80
20 Minimum stable speed 0.7
21 Driving motor power 60kw
22 Endurance Working condition of small airport: 210km+105 times
Working condition of large airport: 214km+106 times
Medium airport operating condition: 212km+105 times

23 Assembly voltage 618.24V
24 Total energy stored 106.95kwh
25 Temperature range -35~65
26 Battery energy density 153.84Wh/kg
