Diesel Passenger Stairs

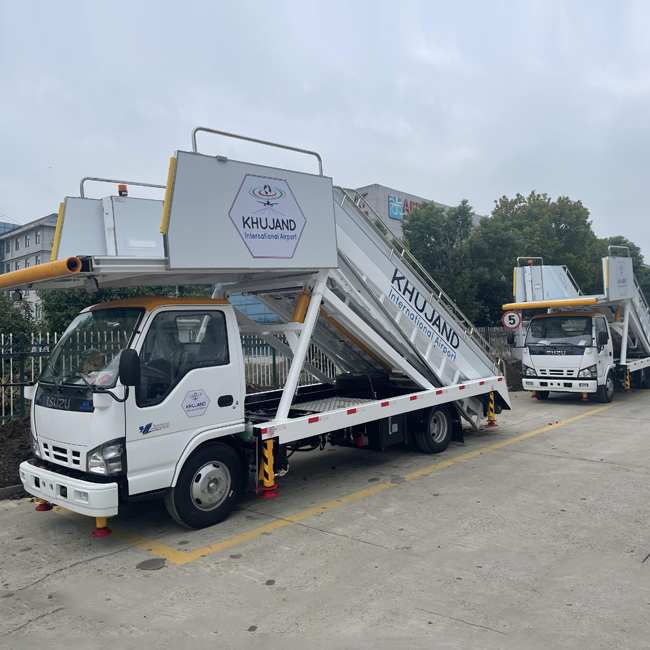

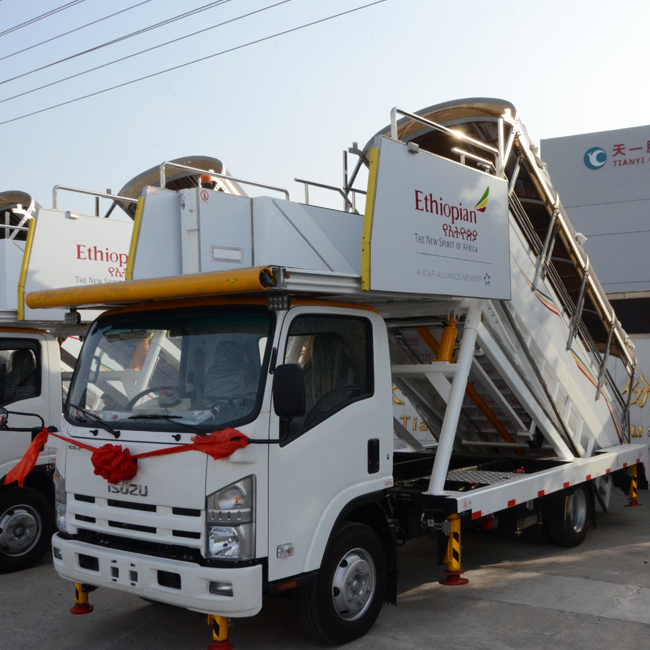

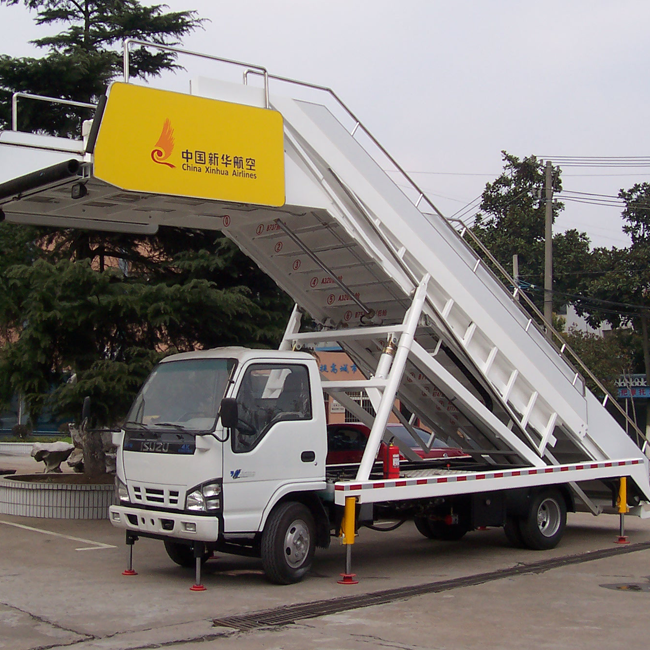

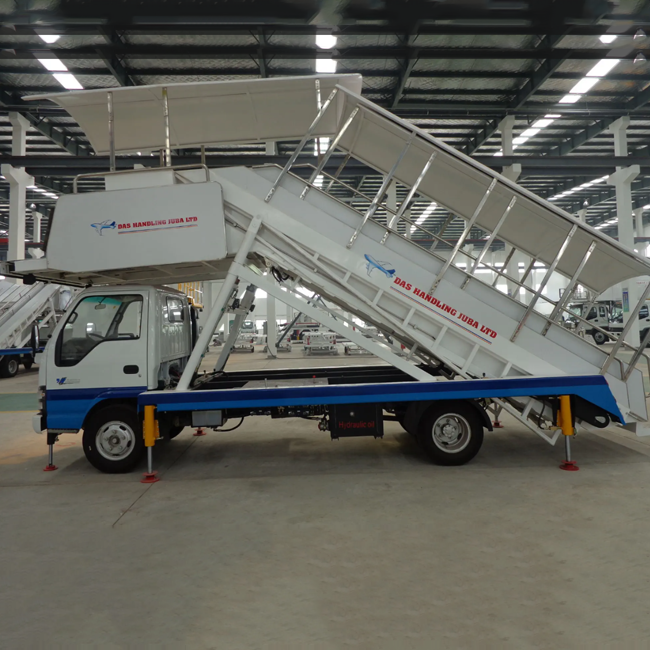

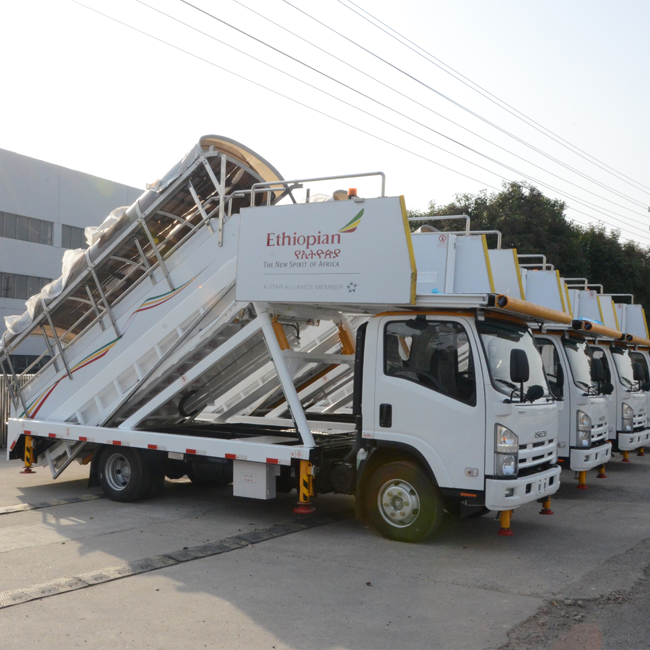

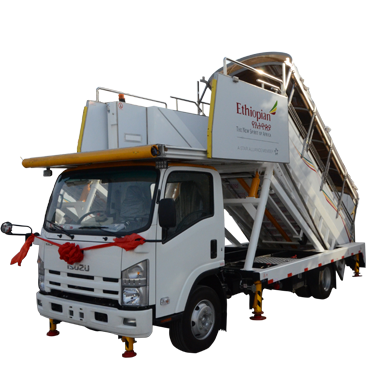

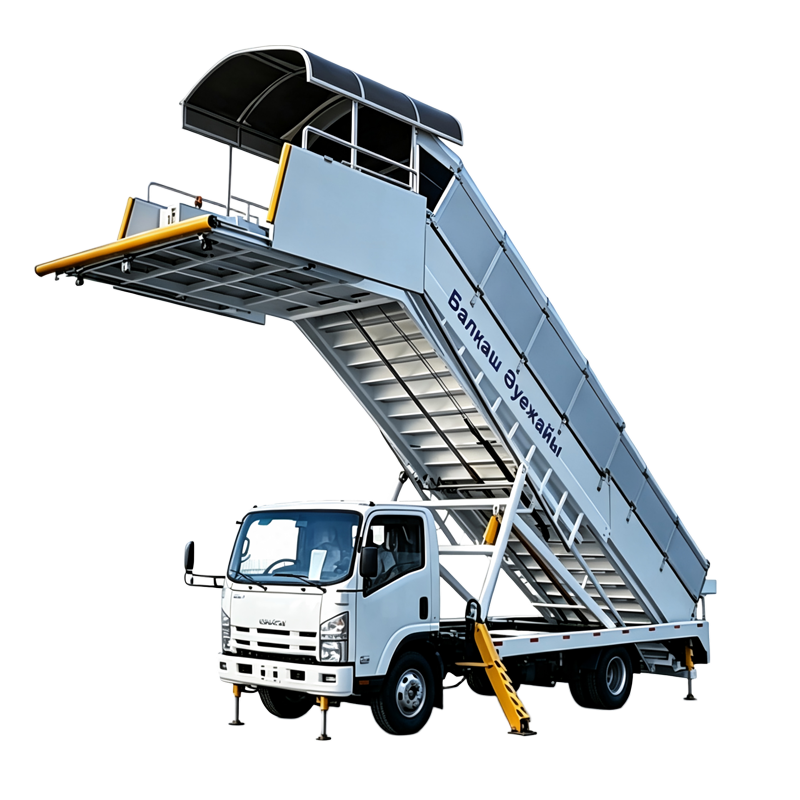

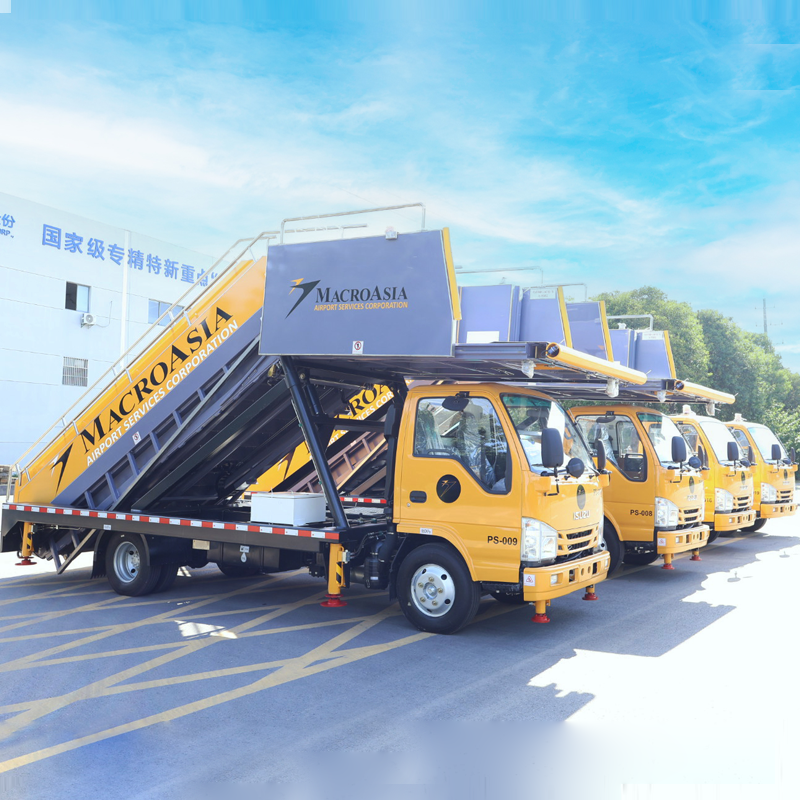

WTJ5060JKT Diesel Passenger Stairs is the airport equipment for passengers to get on and off the aircraft, suitable for the cabin door from 2400mm to 5800mm aircraft, It can serve A300, A310, A318, A319, A320, A321, A330, A340, B737, B757, B767, B777, B787 and other aircraft. The passenger elevator has obtained the national patent, patent number: ZL 2007 2 0039192.2. Compared with other manufacturers of passenger elevator car, the operation is more simple, convenient, the structure is more novel.
Product Description

Model:WTJ5060JKT Diesel Passenger Stairs

Main technical parameters

Chassis type Qingling (QL1070A1KAY)
engine Model number Isuzu 4KH1-TCG40
Maximum power (88Kw/3000rpm)
Profile size
(length x width x height) mm
Wheelbase mm 3815
The weight of the whole vehicle is kg 6700
Platform off ground
lowest 2400
The highest 5800
Expansion of the platform (mm) 0--300
Fixed platform (length x width) mm 2800×1800
Fixed ladder rungs 15
Elevator steps 13
Turn the steps 1
Maximum number of passengers (persons) 60
Maximum tilt Angle of ladder body 39.5
Step size mm 1500*270*180
Minimum ground clearance mm 160


Gawker elevator main configuration list

Serial name Model
1 chassis QL11009KARY
2 engine 4KHI-TCG40
3 transmission MLD-6Q
4 Gear pump CB-E50
5 Lift cylinder WTJ5060JKT-0403000
6 Foot support cylinder WT15060JKT-0107000
7 Steering bridge F033
8 transaxle R066
9 Hand pump SB-20
10 Should be the main electric pump 800601632
11 Front/rear tires 235/75R17.5-14PR
