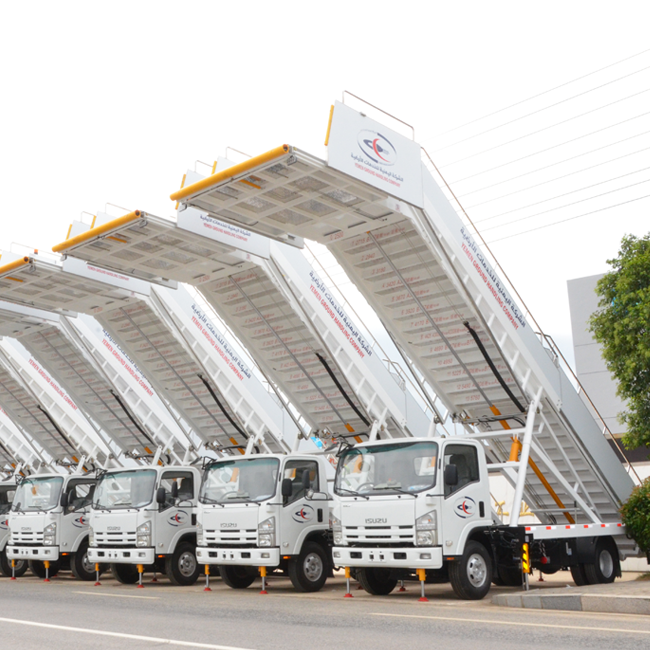

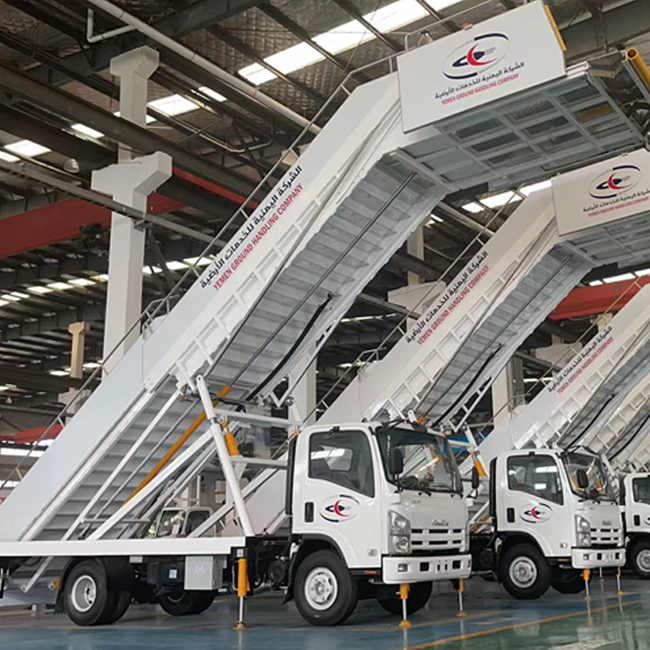

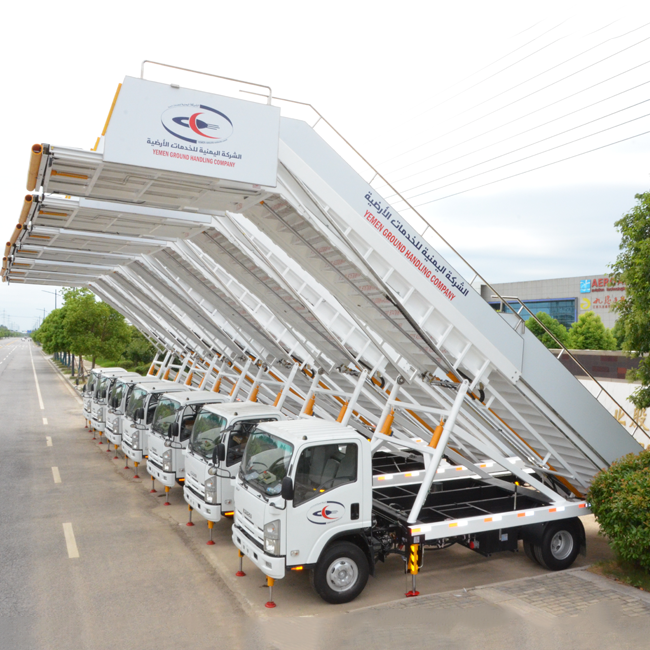

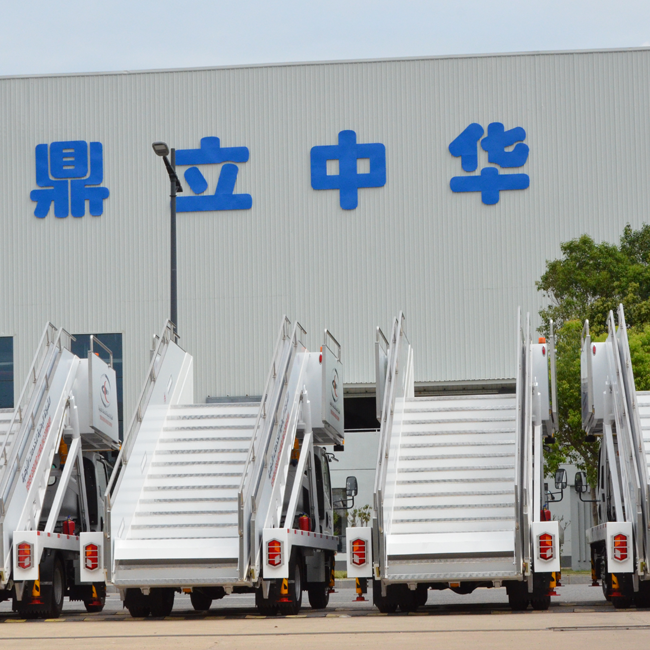

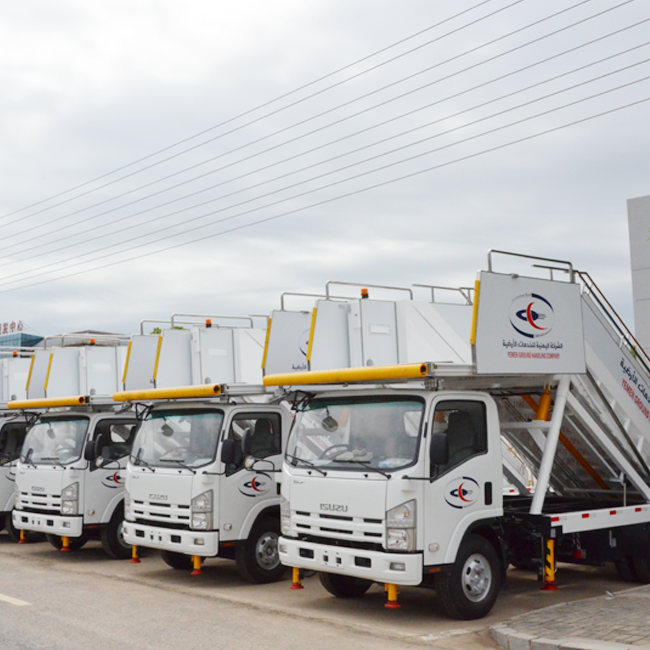

Passenger Stairs

Passenger Stairs is a special motor equipment for airport ground to provide accommodation for passengers or staff getting on and off aircraft. The engine and transmission parts of aircraft passenger elevator have open space in the vertical direction, adequate maintenance space in the horizontal direction and all parts, and complete driving, transmission, steering, braking, hydraulic, lighting and electrical control systems. The overall layout is reasonable, beautiful, cab layout should be simple and clear, ride comfortable, broad vision, easy to operate, the operation part of the design is reasonable, layout intuitive, easy to operate, equipped with air conditioning cab, the main structural components and assembly of the service life of more than 10 years, can work all weather, has good rain, moisture-proof, anti-corrosion performance.
Product Description

Model:Passenger Stairs


Main technical parameters

Chassis type Qingling (QL1070A1KAY)
engine Model number Isuzu 4KH1-TCG40
Maximum power (88Kw/3000rpm)
Profile size
(length x width x height) mm
Wheelbase mm 3815
The weight of the whole vehicle is kg 6700
Platform off ground
lowest 2400
The highest 5800
Expansion of the platform (mm) 0--300
Fixed platform (length x width) mm 2800×1800
Fixed ladder rungs 15
Elevator steps 13
Turn the steps 1
Maximum number of passengers (persons) 60
Maximum tilt Angle of ladder body 39.5
Step size mm 1500*270*180
Minimum ground clearance mm 160


Gawker elevator main configuration list


Serial  name Model
1 chassis QL11009KARY
2 engine 4KHI-TCG40
3 transmission MLD-6Q
4 Gear pump CB-E50
5 Lift cylinder WTJ5060JKT-0403000
6 Foot support cylinder WT15060JKT-0107000
7 Steering bridge F033
8 transaxle R066
9 Hand pump SB-20
10 Should be the main electric pump 800601632
11 Front/rear tires 235/75R17.5-14PR
