Medical Lifter(Ambulift)

WTJ5100JCR Medical Lifter(Ambulift) is suitable for all types of aircraft door height between 2500 ~ 5800㎜, and for passengers with mobility difficulties boarding car, off the plane service.AMH913 Basic Safety Requirements for Aircraft Ground Support Equipment GB1495-2002 "Limits and measurement methods of Vehicle Noise outside Accelerated Driving" GB7258-2004 "Motor Vehicle Operation Safety Technical Conditions"
Availability:
Product Description

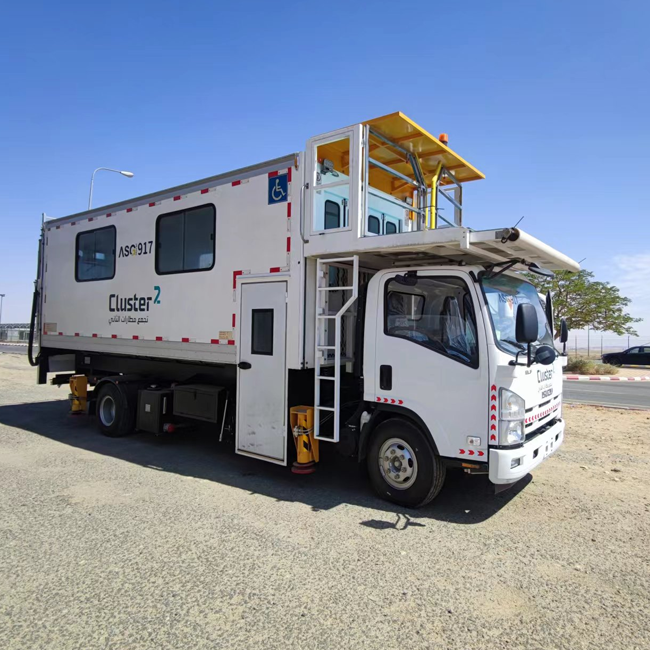

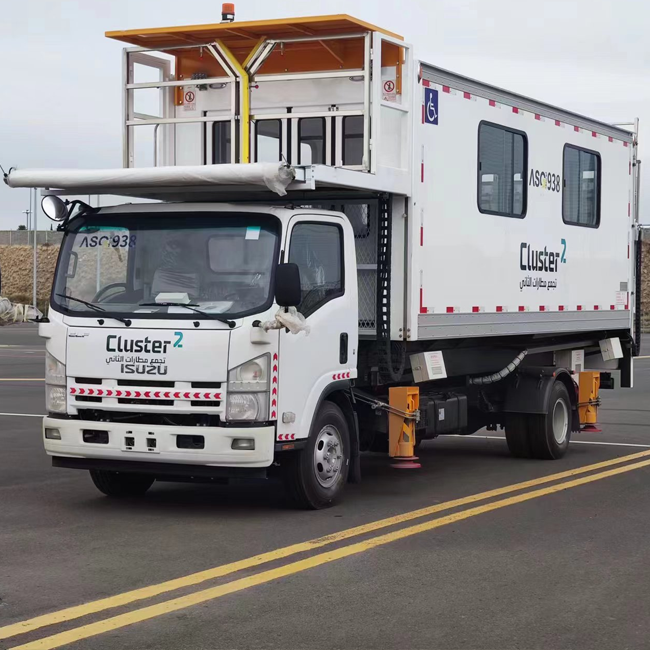

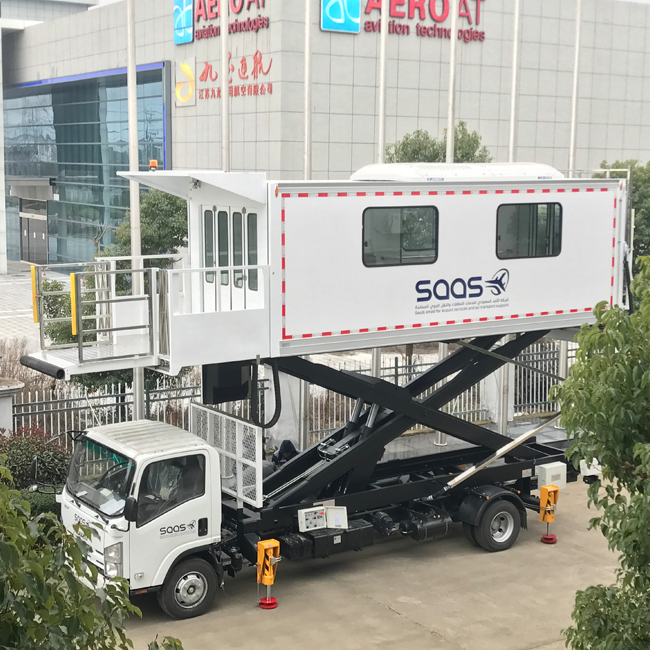

Model: WTJ5100JCR Medical Lifter(Ambulift)



The product can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft Use.
The car has advanced technical performance, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability.
The main features of the product are as follows:
a. The chassis adopts the second-class chassis of Qingling, which has strong bearing capacity and good maneuverability.
b. The most scientific and reasonable fork structure, which adopts piggyback oil cylinder with large inclination Angle.
c. The upper and lower frame structure of the lifting device with widened design is very stable.
d. The hydraulic system adopts imported electromagnetic reversing valve, two-way hydraulic lock, emergency electric pump, emergency manual pump, etc. The oil cylinder adopts the best domestic products, and the key vulnerable parts such as oil seal in the cylinder are all imported parts.
e. Complete emergency measures to ensure the safety of aviation food trucks.



Technical parameter


serial Item Name Performance counter
1 Chassis model Qingling Automobile Co., LTD
2 Engine type Qingling Isuzu (Chongqing) Engine Co., Ltd. 4HK1-TC51
3 Engine emission GB 17691-2005 National V
4 Transmission model American Allison 2500 (automatic transmission)
5 Platform working height  mm 2500 ~ 5800
6 The rated load  ㎏ 2500
7 Platform left and right adjustment range  mm  0~600
8 Platform telescopic adjustment range  mm  0~600
9 Fixed platform size (length × width)  mm  1400×2280
10 Mobile platform size (length × width) mm 1200×1200
11 Car body size (length × width × height)  ㎜ 6350×2200×2100
12 Fixed platform load rating  ㎏ 1200
13 Rated load of movable platform ㎏ 600
14 size (L × W × H) mm 9540×2460×3770
15 kerb weight kg 11250
