Airport Ambulift

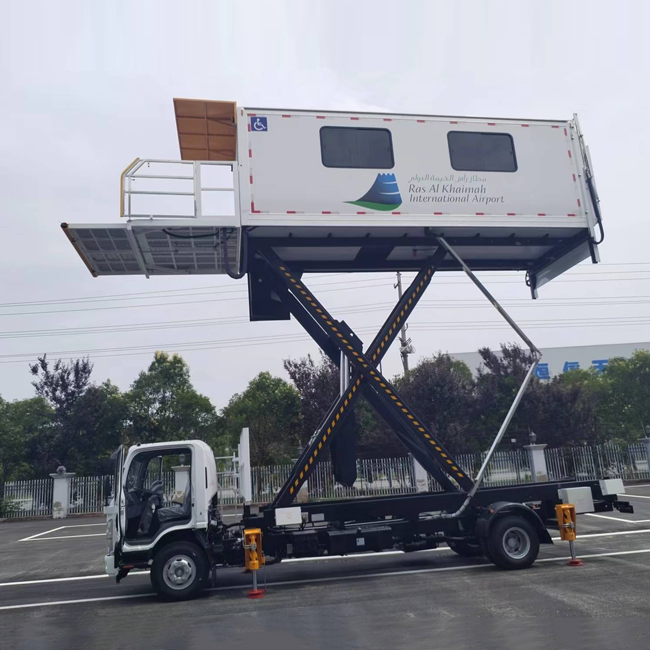

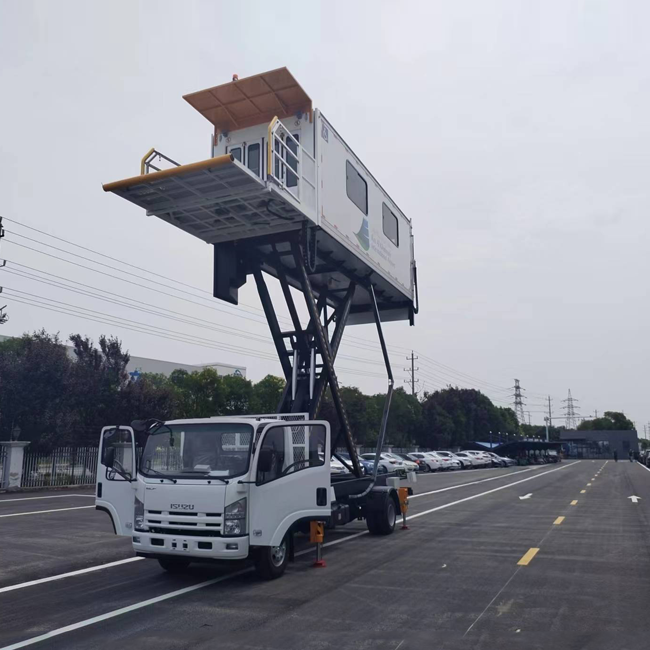

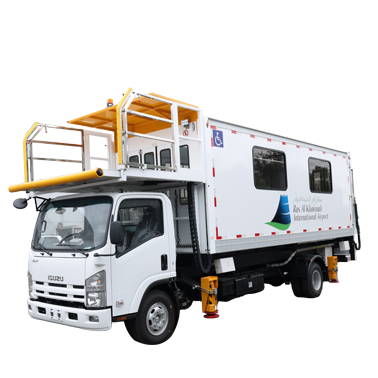

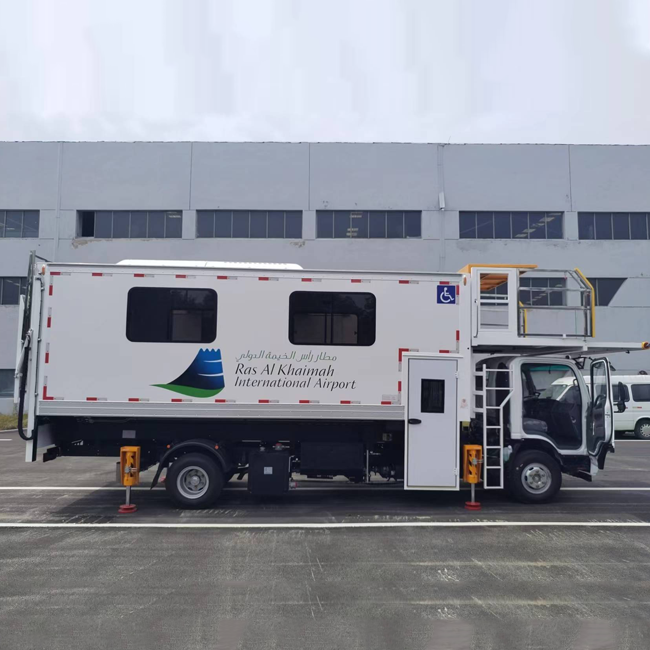

WTJ5100JCR Airport ambulift is modified by Qingling second-class automobile chassis, with advanced technology, safe and reliable use, and superior performance to similar products modified by other domestic chassis. The product can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft Use. The car has advanced technical performance, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability.
Availability:
Product Description

Model: WTJ5100JCR Airport ambulift



Technical parameter

Serial Item Name Performance counter name Model number
1 Chassis model Qingling Automobile Co., LTD chassis QL1100A8PAY
2 Engine type Qingling Isuzu (Chongqing) Engine Co., Ltd. 4HK1-TC51 Engine 4HK1-TC51
3 Engine emission GB 17691-2005 National V Transmission MLD-6Q
4 Transmission model American Allison 2500 (automatic transmission) Pump CBN-F63-BFHL
5 Platform working height  mm 2500 ~ 5800 Lift cylinder WTJ5100JCR-0305000
6 The rated load  ㎏ 2500 Steering shaft F033
7 Platform left and right adjustment range  mm  0~600 Drive shaft R066
8 Platform telescopic adjustment range  mm  0~600 Front/rear tire 235/75R17.514PR
9 Fixed platform size (length × width)  mm  1400×2280 Cab P80EA
10 Mobile platform size (length × width) mm 1200×1200 Force extractor KRT350R-002
11 Car body size (length × width × height)  ㎜ 6350×2200×2100 Front leg cylinder WTJ5100JCR-0108000
12 Fixed platform load rating  ㎏ 1200 Rear leg cylinder WTJ5100JCR-0108000
13 Rated load of movable platform ㎏ 600 Electric emergency pump 800601632
14 size (L × W × H) mm 9540×2460×3770
15 kerb weight kg 11250
