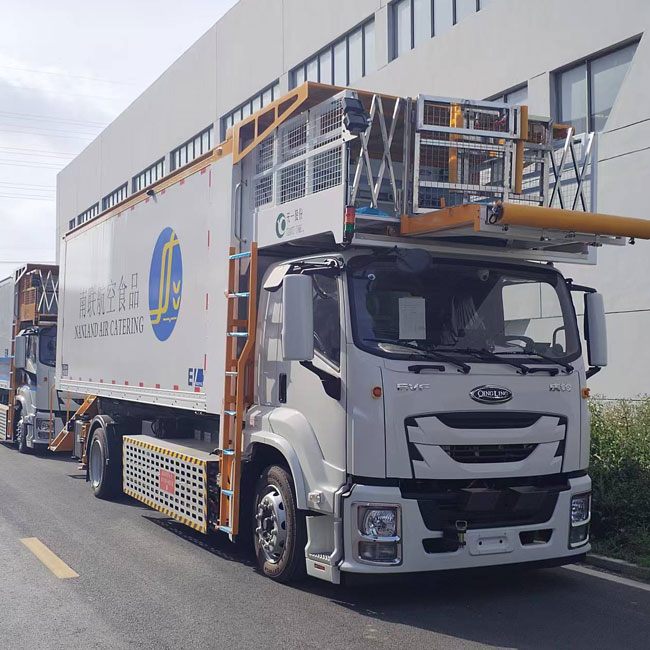

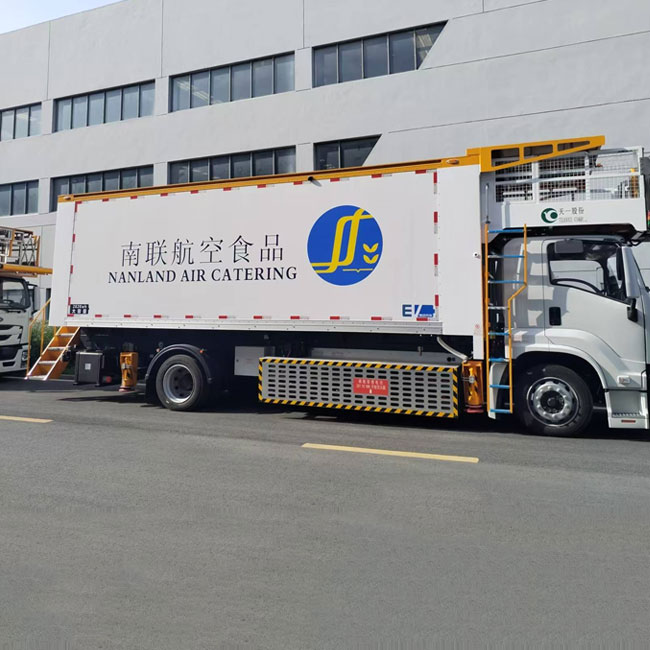

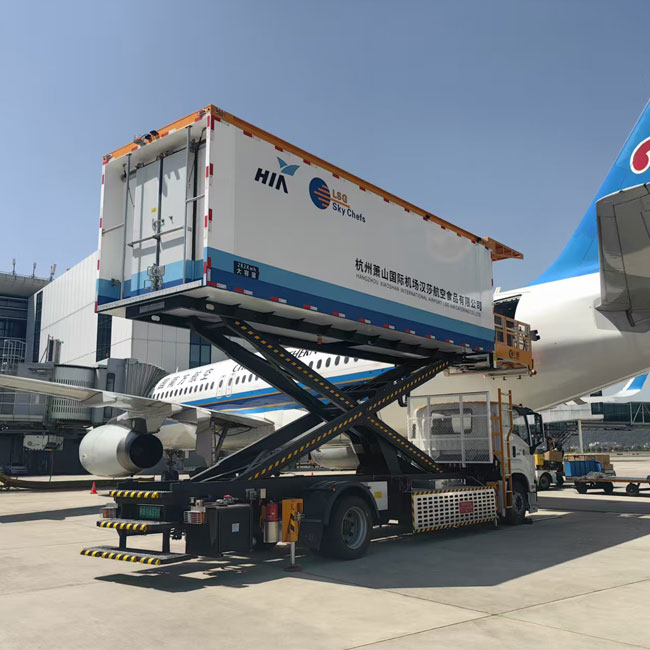

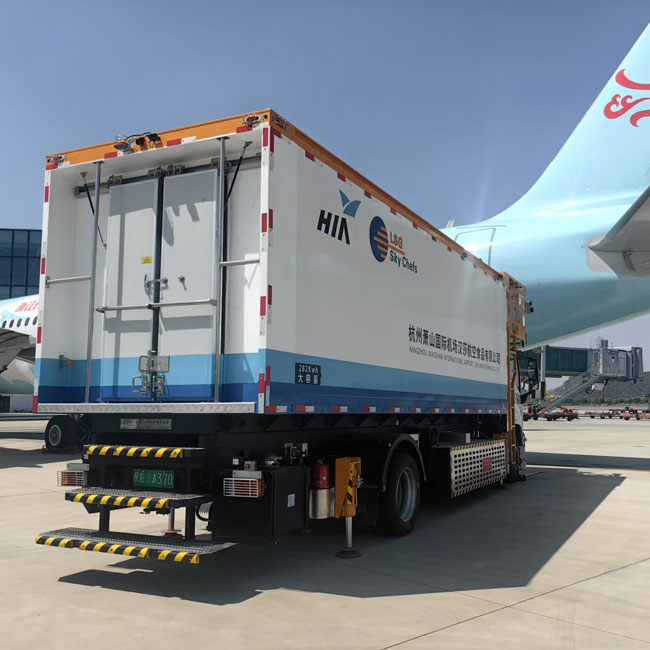

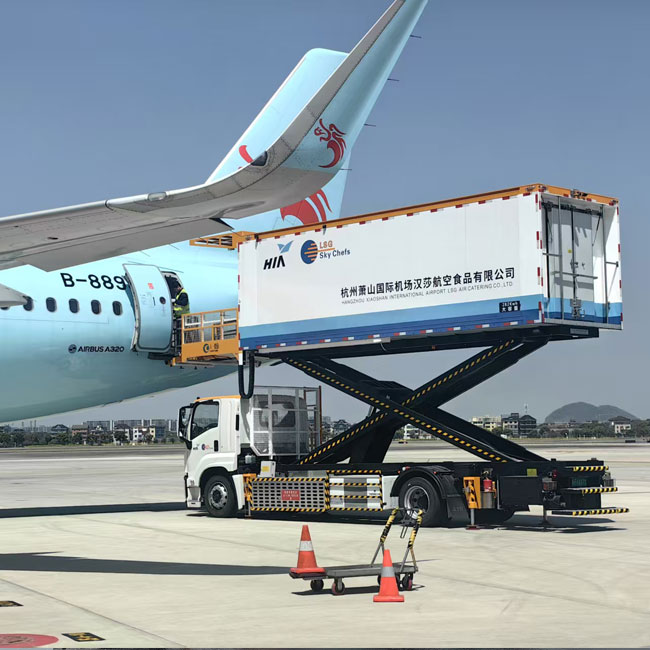

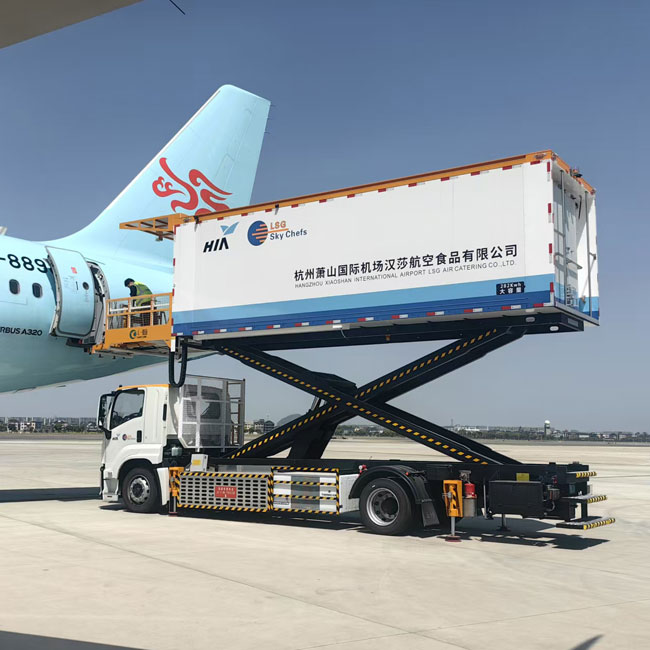

JSTY5180JSPE Electric Airport Catering Truck is a special vehicle for all types of aircraft catering. This vehicle is modified based on the Qingling QL1180BEVELQHY chassis. The vehicle structure mainly consists of the chassis, support foot structure, lifting device, body, working platform, refrigeration unit, electrical system and hydraulic system, etc.
Product standard
MH/T 6016-2017 "Airline Food Truck"
AC-137-CA-2019-04 "Aviation Food Truck Test Specification"
AC-137-CA-2015-20R1 General Technical Requirements for Ground Service Equipment for Electric Aircraft
JG 5099-1988 Safety Regulations for Working Machinery at Altitude
GB 7258-2004 "Motor Vehicle operation safety Technical Conditions"
AHM910 Basic Requirements for Aeronautical Ground Equipment
AHM913 Basic Safety Requirements for Aviation Ground Equipment
AHM915 Standard Control
AHM910 "Basic Requirements for Station Support Equipment for Civil Aircraft"
JSTY5180JSPE Electric Airport catering truck Configuration six Main assembly structure and main technical parameters
| Type | Permanent magnet synchronous motor | species | Lithium iron phosphate | ||
| Drive motor | Rated power/speed kw/r/min | 100/1270 | Energy storage device | type | Energy type |
| Rated current A | 176 | Assembly system | 2 and 192 strings | ||
| Insulation class | H | ||||
| Protection class | IP67 | ||||
| Rated voltage VAC | 380 | Assembly voltage V | 618.24 | ||
| drive | Input voltage VDC | 540 | Total energy stored kWh | 281.92 | |
| electric | Rated output voltage VAC | 380 | Unit nominal voltage V | 3.22 | |
| Machine control device | Control mode | Torque control | Unit rated capacity Ah | 228 | |
| Cab type | Flat head | Number of passengers | 3 | ||
| Total length mm | 10500 | Total width mm | 2500 | ||
| Total height mm | 3700 | wheelbase mm | 5550 | ||
| Wheel base (front/rear) mm | 1960/ 1850 | Maximum speed km/h | 82 | ||
| Quality of maintenance kg | 13790 | Total mass kg | 19990 | ||
| Minimum ground clearancemm | 200 | Channel circle outer circle diameter mm | 20950 | ||
| Working height of platform mm | 2550～ 6100 | Rated carriage load kg | 6000 | ||
| Front platform rated bearing capacity kg | 2500 | Forward platform moving part rated bearing capacity kg | 700 | ||
| Rated bearing capacity of fixed part of front platform kg | 1800 | Left and right adjustment range of front platform moving part mm | 0～700 | ||
| Dimension of fixed part of front platform (length × width) mm | 2050× 2265 | Moving part of front platform (telescopic adjustment range) mm | 0～600 | ||
| Dimension of moving part of front platform (length × width) mm | 950×1200 | Internal dimensions of car body (length × width × height) mm | 6750×2360×2200 | ||
| External dimensions of car body (length × width × height) mm | 7500×2500×2400 | Driving range km | 440 | ||
| Temperature range ℃ | -35～65 | —— | —— | ||
