Airport Water Truck

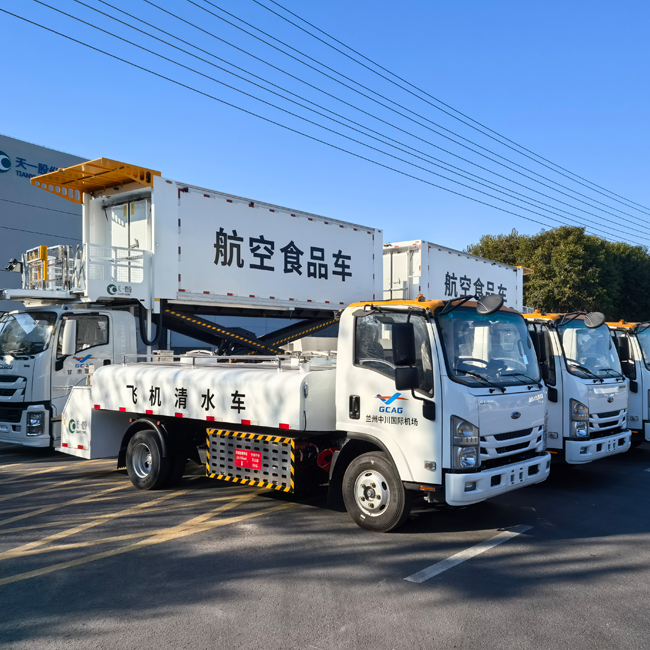

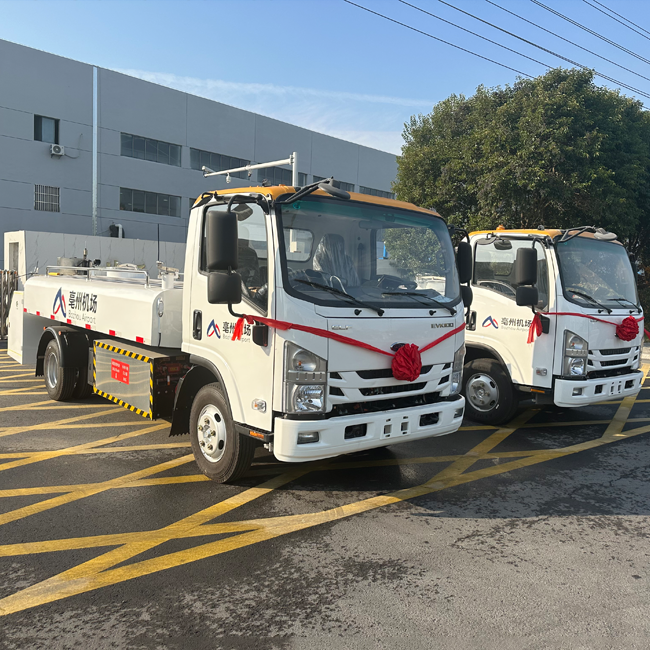

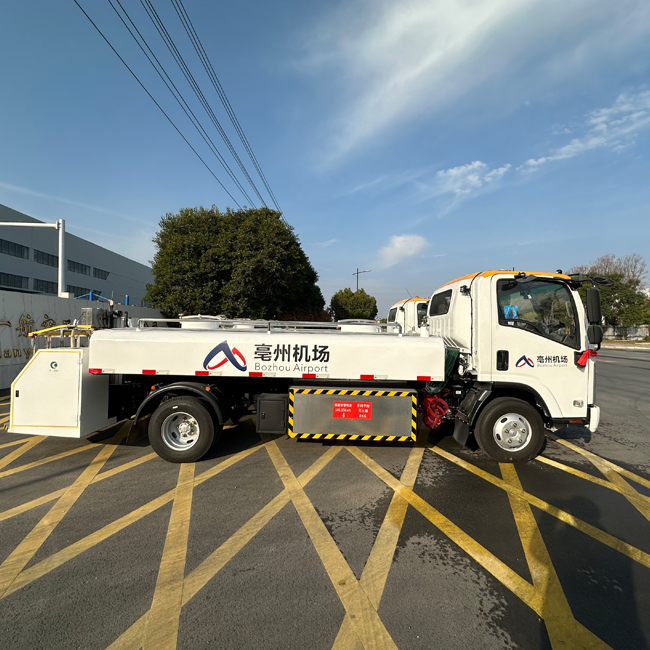

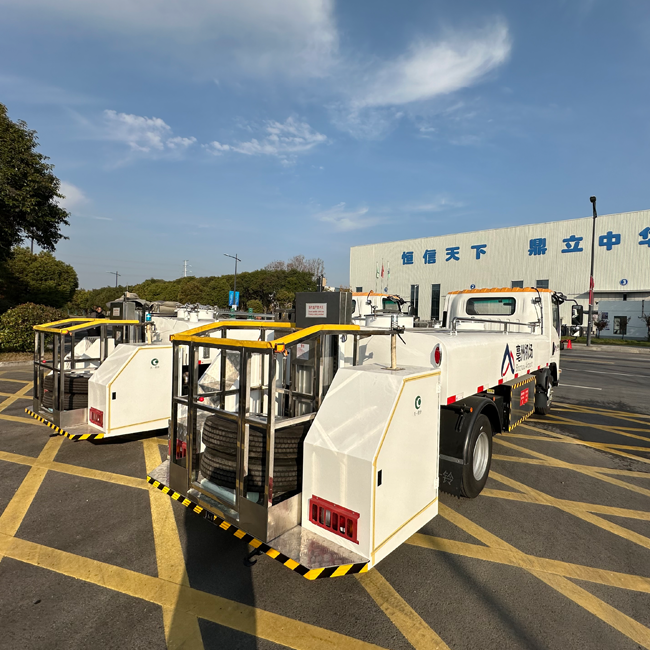

JSTY5060GQSE Airport water truck is a new airfield special vehicle for aircraft filling clean water, which is modified by Qingling QL1070BEVECDAY chassis. The vehicle is a new energy chassis, designed as a rear lifting work platform, large capacity water tank in the middle, among which, the lifting platform is equipped with night operation lights, convenient night operation. The chassis cab of the product is flat head, single row seat, two-door type, occupant 3 people; The driving type is 4×2, the volume of the clear water tank is 4m³, and the water supply flow is ≥130L/min.
Availability:
Product Description

Model:Airport water truck


Main performance indicators:

Serial name parameter name Model number
1 Vehicle size (mm) 6955 * 2100 * 2250 chassis QL1070BEVECHA2Y
2 Platform lifting range (mm) 400 ~ 3000 Chassis vehicle controller VCU02
3 Total vehicle mass (kg) 4200 Driving motor YTD060W23
4 Wheelbase (mm) 3815 Drive motor controller KTZ50X35S
5 Wheel base front/rear (mm) 1685/1525 Energy storage assembly L173TB2
6 Channel circle outer circle diameter (mm) 16500 Energy storage unit CB220
7 Minimum ground clearance (mm) 185 Steering shaft F033
8 Water supply flow L/min 220 Drive shaft R048
9 Water supply pressure Mpa 0.25 ~ 0.35 tyre 7.00R16 14PR
10 Clean water tank volume L 5000 Tank body JSTY5060GQSE-0200000-01
11 Departure Angle (°) 10 Motor pump controller HCDMC005VT3
12 Approach Angle (°) 21 Water pump DL12-60
13 Longitudinal passage Angle (°) 15 Motor pump DLDY-1.0/0.8-3
14 Driving range (km) 308 Lift cylinder GTWY350-2.8
15 Temperature range (℃) - 35-65 Monitoring system (wirelessly connected) D5804
16 Maximum speed Km/h 80 Electromagnetic main power switch DK238 24V
17 Rated power of driving motor KW/r/min 60/1850 relay DRM570024L
18 Assembly voltage V 618.24 Toggle switch E-SG-112
19 Total energy stored KWh 106.95 Relay socket DTF14A
20 Type of energy storage Ningde era lithium iron phosphate sensor UGT521
21 Battery protection class IP68 Emergency electric pump 800602353
22 Water tank cleaning material/thickness mm 316L/5 Alarm light 24V
23 Minimum stable speed Km/h 0.8
