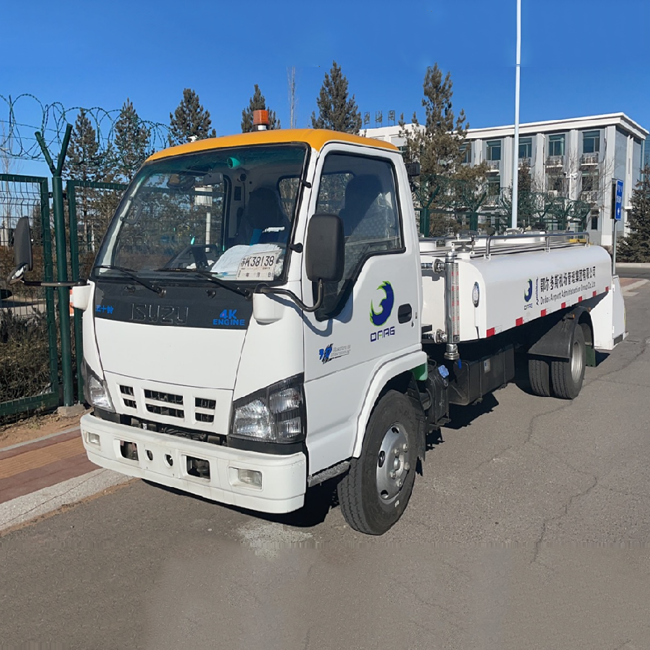

Portable Water service vehicle
1. Product profile
The aircraft portable water service truck primarily consists of Isuzu chassis, portable water tank assembly, power take-off (PTO) drive assembly, portable water supply system, tail frame, hydraulic drive system, electrical system.
Applicable aircrafts
It is applicable to A300、A310、A318、A319、A320、A330、A340、B707、B727、B737、 B747、B757、B767、B777、DC8、1L—18、1L—62、MD11、MD80 type aircraft except A380.
2. Product Standard
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment
GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
3. Technical parameter
Length mm | 7330 | Width mm | 2220 |
Height mm | 2400 | Wheelbase mm | 3815 |
Thread（F/R） mm | 1680/1650 | Front Suspension mm | 1110 |
Rear Suspension mm | 2405 | Portable Water Tank Volume L | 3000 |
Approach Angle （°） | 24 | Departure Angle （°） | 8 |
Min Ground Clearance mm | 200 | Turning Radius mm | 7000 |
Vehicle Weight kg | 4550 | Max. Speed km/h | 80 |
Max. Operation Speed km/h | 50 | Water Supply Flow L/min | 90-130 |
Water Supply Pressure Mpa | 0.25-0.35 | Pump Material | Stainless Steel |
Lifting Height of platform mm | 400-3000 | Loading of platform kg | 200 |
