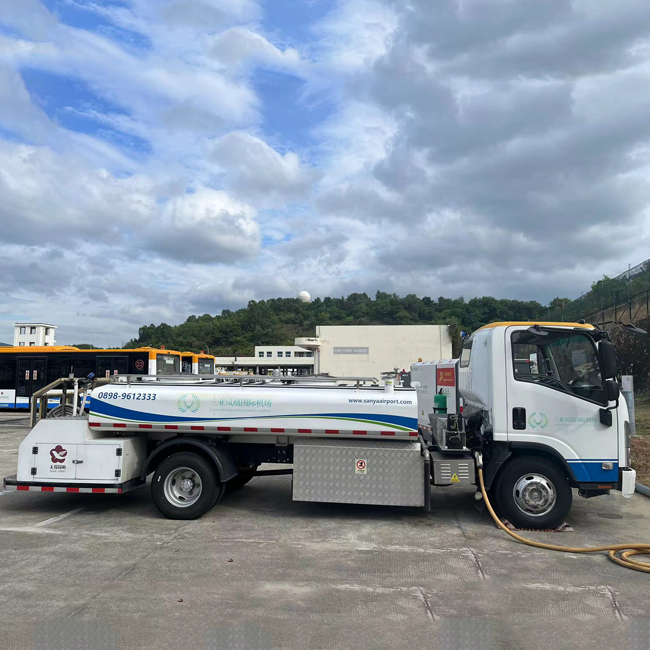

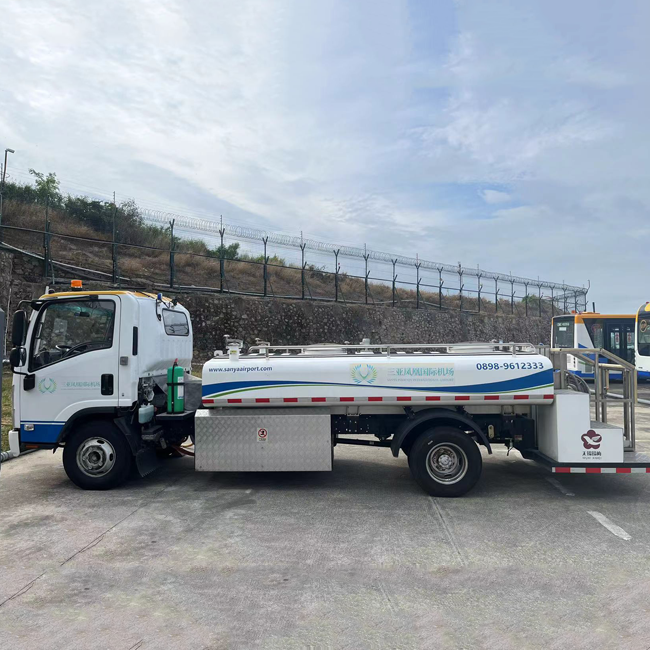

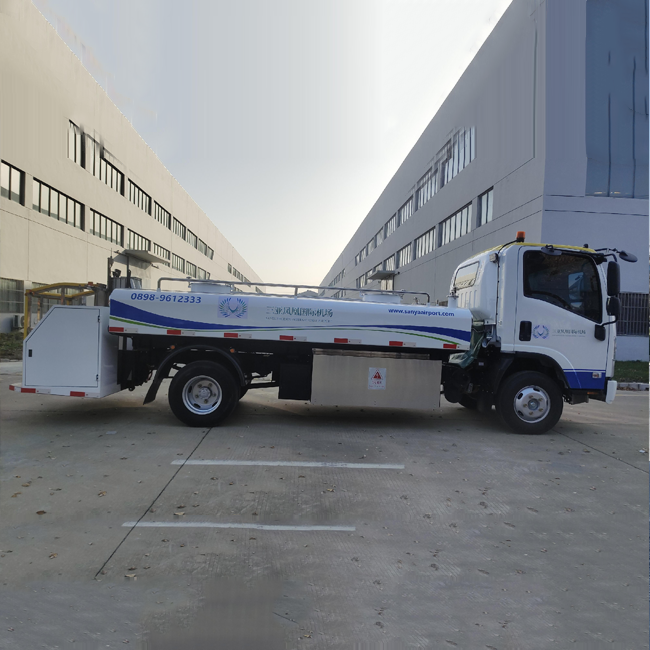

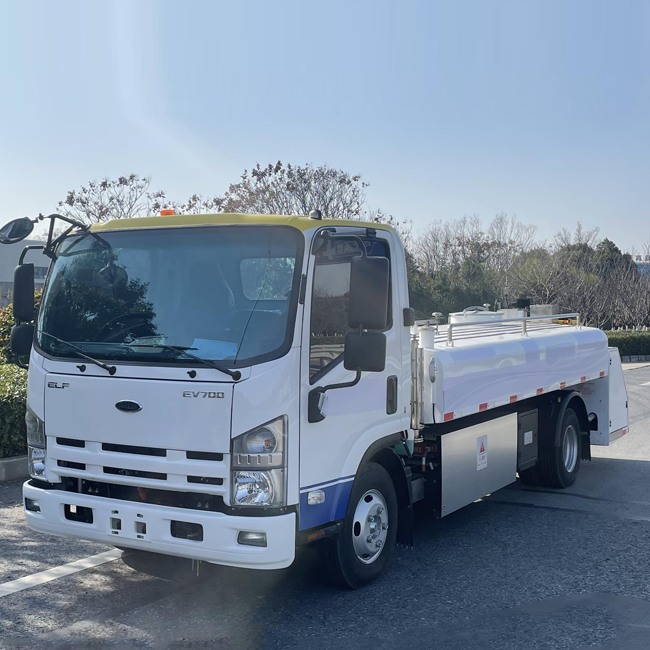

Model：Potable Water Truck
Product standard
Reference material for IATA AHM 905 Station support equipment for civil aircraft
IATA AHM 910 Airport ground support equipment Basic requirements
IATA AHM 913 Airport ground support equipment Basic safety requirements
IATA AHM 915 Standard control
MH/T 6014 Aircraft Water Truck
GB/T 18488-2006 Motor for electric vehicles and its controller
GB/T 24347-2009 DC/DC Converter for electric vehicles
GB/T 18384-2001 Safety requirements for electric vehicles
GB/T 18487-2001 Conduction charging system for electric vehicles
GB/T 20234-2015 Connecting devices for conductive charging of electric vehicles
Communication protocol between non-on-board conductive chargers and battery management systems for electric vehicles
DB11/Z993-2013 Technical Specification for Electric Vehicle Remote Service and Management System
General technical requirements for ground service equipment of AC-137-CA-2015-20R1 electric aircraft
Main performance indicators:
| Serial | name | parameter | name | Model number |
| 1 | Vehicle size (mm) | 6955 * 2100 * 2250 | chassis | QL1070BEVECHA2Y |
| 2 | Platform lifting range (mm) | 400 ~ 3000 | Chassis vehicle controller | VCU02 |
| 3 | Total vehicle mass (kg) | 4200 | Driving motor | YTD060W23 |
| 4 | Wheelbase (mm) | 3815 | Drive motor controller | KTZ50X35S |
| 5 | Wheel base front/rear (mm) | 1685/1525 | Energy storage assembly | L173TB2 |
| 6 | Channel circle outer circle diameter (mm) | 16500 | Energy storage unit | CB220 |
| 7 | Minimum ground clearance (mm) | 185 | Steering shaft | F033 |
| 8 | Water supply flow L/min | 220 | Drive shaft | R048 |
| 9 | Water supply pressure Mpa | 0.25 ~ 0.35 | tyre | 7.00R16 14PR |
| 10 | Clean water tank volume L | 5000 | Tank body | JSTY5060GQSE-0200000-01 |
| 11 | Departure Angle (°) | 10 | Motor pump controller | HCDMC005VT3 |
| 12 | Approach Angle (°) | 21 | Water pump | DL12-60 |
| 13 | Longitudinal passage Angle (°) | 15 | Motor pump | DLDY-1.0/0.8-3 |
| 14 | Driving range (km) | 308 | Lift cylinder | GTWY350-2.8 |
| 15 | Temperature range (℃) | - 35-65 | Monitoring system (wirelessly connected) | D5804 |
| 16 | Maximum speed Km/h | 80 | Electromagnetic main power switch | DK238 24V |
| 17 | Rated power of driving motor KW/r/min | 60/1850 | relay | DRM570024L |
| 18 | Assembly voltage V | 618.24 | Toggle switch | E-SG-112 |
| 19 | Total energy stored KWh | 106.95 | Relay socket | DTF14A |
| 20 | Type of energy storage | Ningde era lithium iron phosphate | sensor | UGT521 |
| 21 | Battery protection class | IP68 | Emergency electric pump | 800602353 |
| 22 | Water tank cleaning material/thickness mm | 316L/5 | Alarm light | 24V |
| 23 | Minimum stable speed Km/h | 0.8 |
