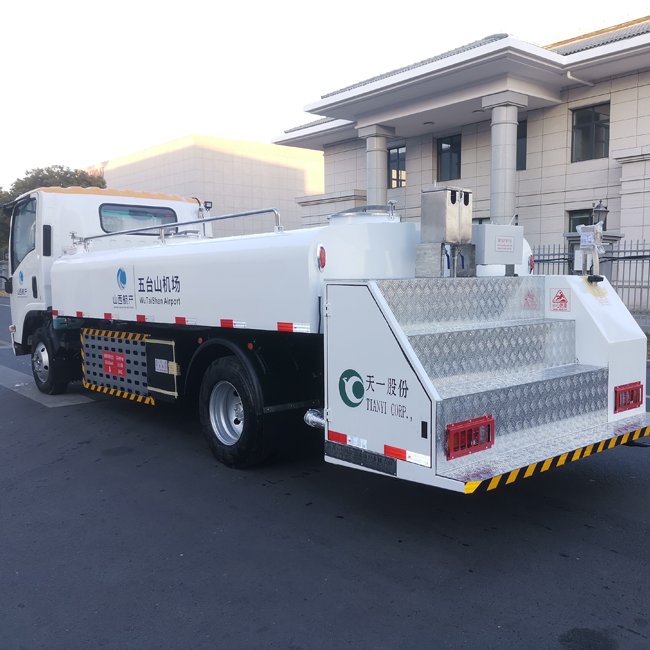

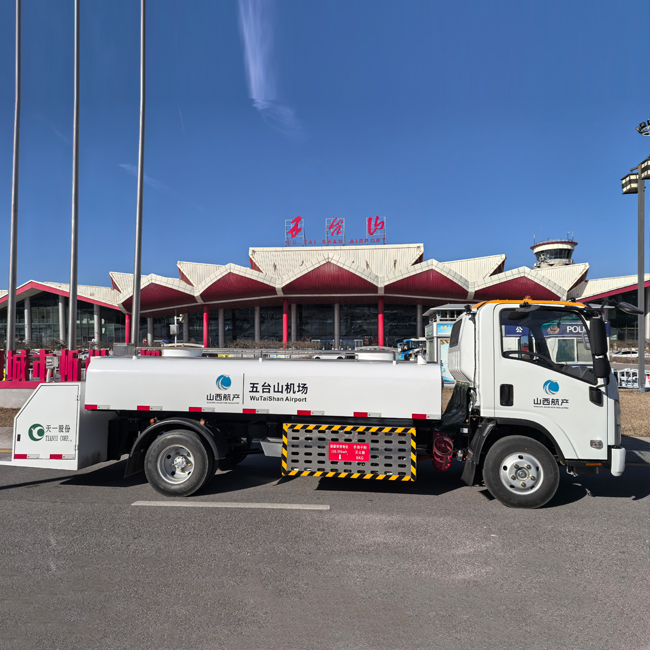

Electric Potable Water Serve Truck

electric powered water serve truck
Availability:
Product Description

choose ISUZU chassis type QL1070BEVECDAY, rear lifting platform.water tank capacity is 4.0m3,


it is applicable for all aircraft types except a380.


No. Project name Design value Note
1 Total length(mm) 7315
2 Total width(mm) 2200
3 Total height(mm) 2360
4 Wheelbase(mm) 3815
5 Wheelbase(front/rear)(mm) 1680/1650
6 Front hanger(mm) 1100
7 Rear hanger(mm) 2440
8 Approach angle (°) 19
9 departure angle (°) 5
10 Min. ground clearance 200
11 Curb weight(kg) 4060
12 Total weight(kg) 8190
13 Outside diameter of channel   round(mm) 15600
14 Max. speed(km/h) 60
15 tank volume(L) 4000
16 Water supply rate(L/min) ≥150
17 Min. height of work platform   (mm) 385
18 Max. height of work platform  (mm) 3800
19 Material of water tank Stainless steel plate 1Cr18Ni9Ti/4mm
