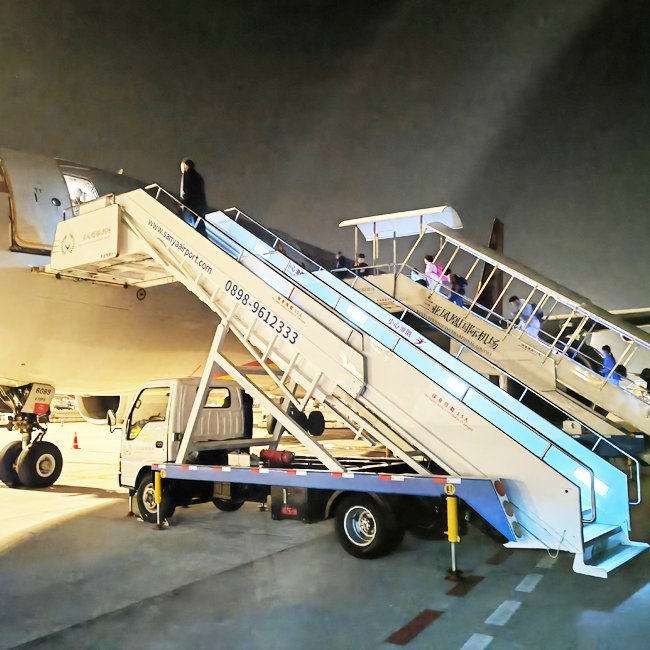

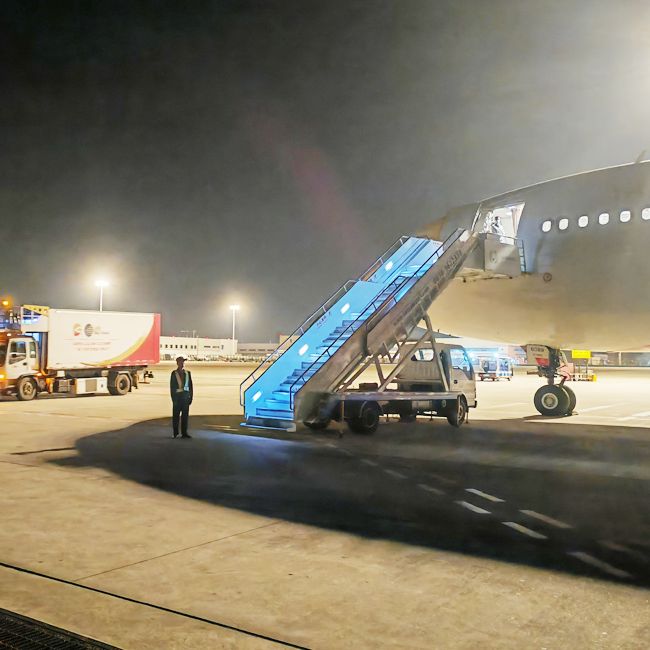

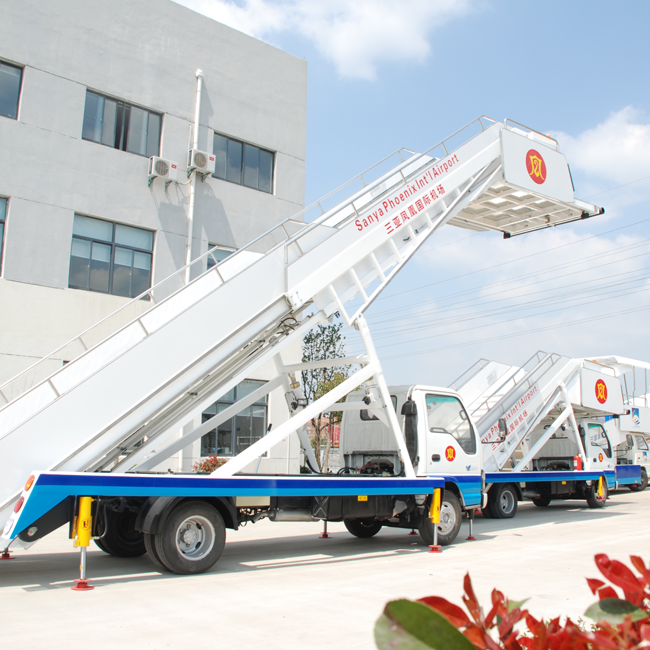

Aircraft Boarding Stairs

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch
Availability:
Product Description

WTJ5060JKT

Mobile Passenger Stairs


. Products introduction

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777.

National patent No. ZL 2007 2 0039192.2


II.  Standard:

ZB/T50 001-87 Special vehicles--Engineering approval evaluation program

JB/T5943—91 welding general technical specification for construction machinery

IATA AHM—913 <Function requirement of GSE>

IATA AHM—910 <Function requirement of GSE>

IATA AHM—915 Standard control device

SAE--ARP836A Design of passenger steps and safety standard


. Major technical performance parameter

Chassis type

ISUZU QL1070A5KAY

Engine

Type

ISUZU 4KH1CN5HS

Max power

96kW/3400rpm

Transmission


MSB-5SM

Overall dimension(length×width×height)mm

7675×2480×3870

Wheelbase mm

3815

Curb weight kg

7200

Ground clearance mm

Min height

165

Shrinking quantity of shrinking platform mm

0--300

Lifting height mm

2400-5800

Fixed platform(length×width)mm

2800×1500

Ladder step (length×width×height) mm

270×1500×180

Stroke of active platform mm

300

Ladder steps (piece)

29

Stroke of active moving door

1000

Min radius of turning circle

7.5

Capacity of hydraulic oil L

120

Capacity of diesel oil L

120

Pressure of hydraulic system Pa

10

Pressure of electric system V

12

Front axle kg

2750

Rear axle kg

4450

Wheel base(front/rear axle)

1504/1425

Maximum load-bearing (person)

64
