Self Propelled Passenger Steps

TY-KT48 is included by chassis, Fixed step, slipping step, lifting mechanism, hydraulic, electric system, etc.
Availability:
Product Description

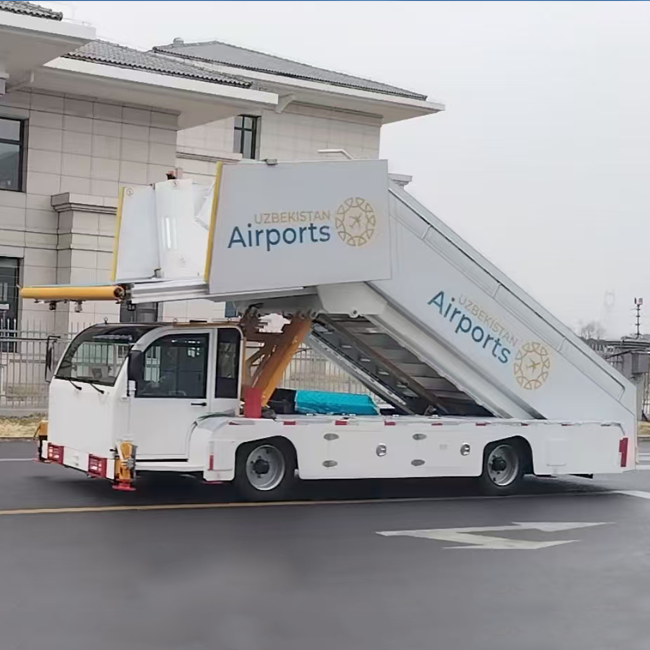

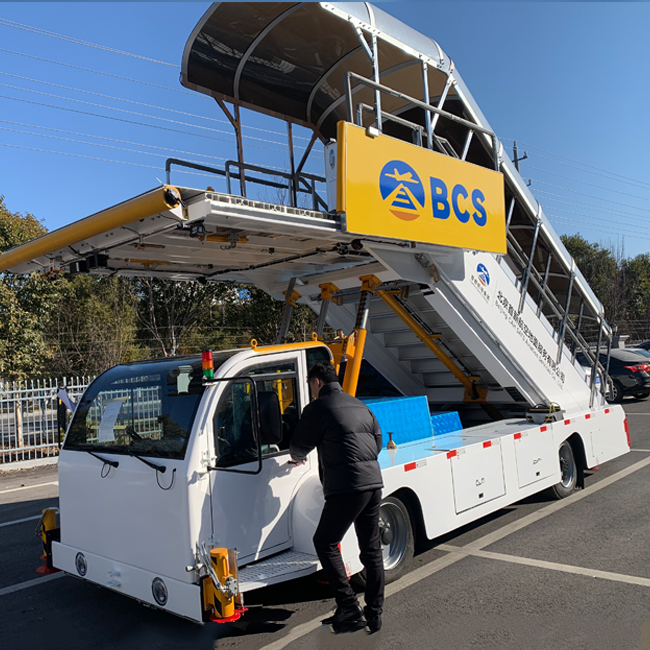

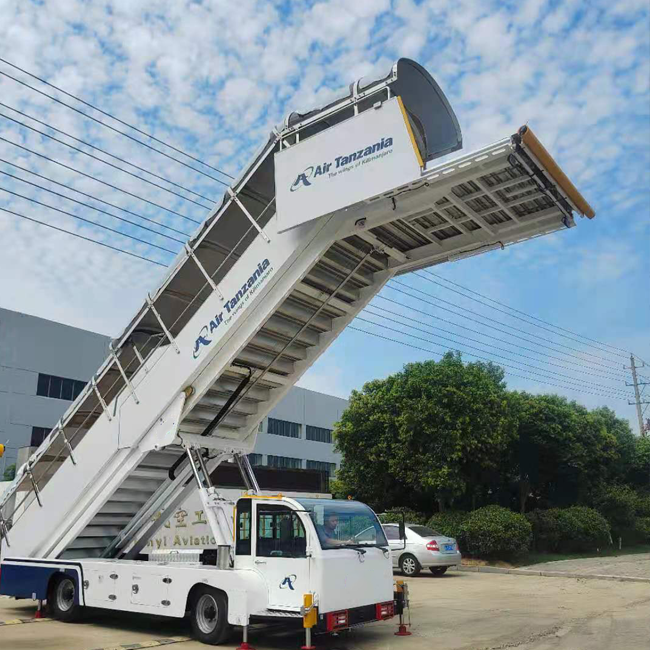

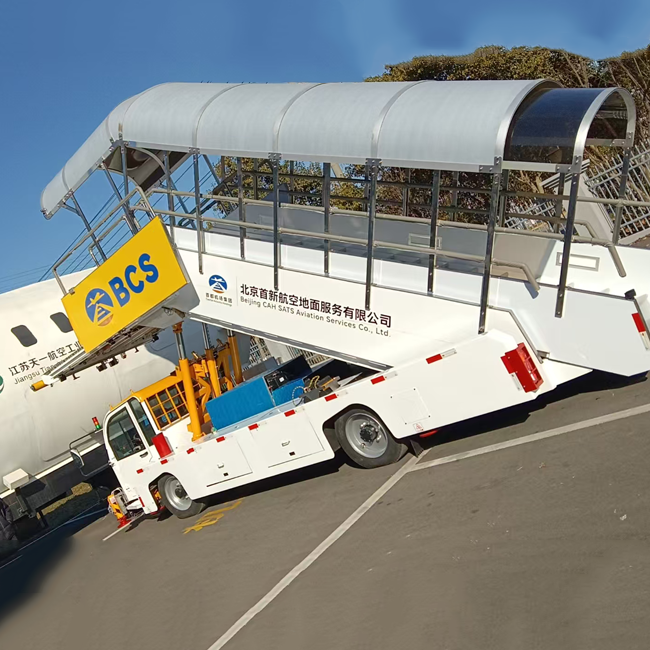

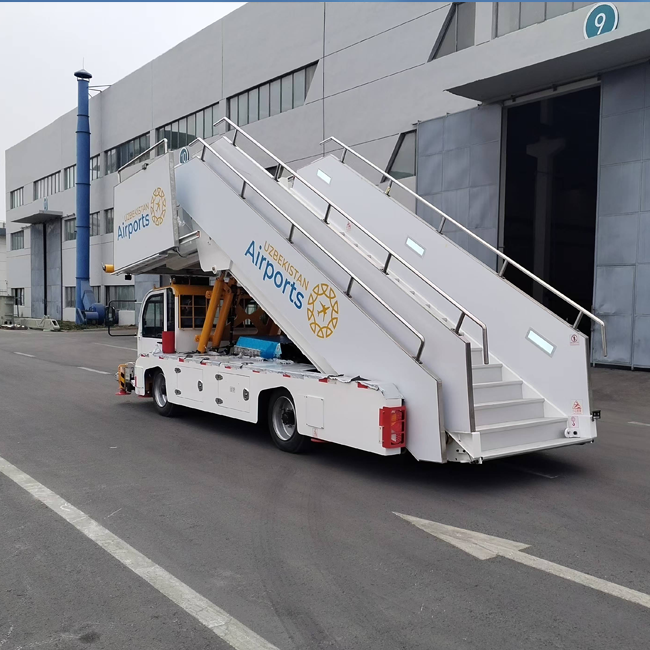

Self propelled passenger steps


1 NamePassenger steps(aircraft boarding ladder)

2 TypeTY-KT48

3 Profile: TY-KT48 use self-propelled chassis with hydraulic steering is easy to be operated.


4 Standard:

1)MH/T6029-2014 《Passenger boarding ladder》

2)IATA AHM 920 《Function for loading stairs》

3)IATA AHM 923 《Function specs for lifting loading stairs》

4)GB/T 23422-2009 《Functional requirement of self–propelled passenger loading》

5)CCAR-331SB-R1 《No.170 document of general administration of civil aviation of china》

6)CCAR-140 《No.191 document of general administration of civil aviation of china》


5 Main technical spec data

Event

Performance index

chassis

Self- made KT48C.100

engine

JMC JX493ZLQ3A

Tilt angle of ladder body

37.5

Size of step(length*width*height)mm

275*1290*190

Working height mm

2200-4800

Mode of height adjustment

Telescopic

Steps of upper ladder

10

Steps of down ladder

13

Platform dimension (length*width) mm


Overall dimension (length*width*height) mm

7450*2200*3630

Curb weight mm

7500


6 Main structure

TY-KT48 is included by chassis, Fixed step, slipping step, lifting mechanism, hydraulic, electric system, etc.


7 Main configuration

No

Name

Type

Manufacturer

Note

1

Classis

KT58V.01010000

Jiangsu Tianyi

Self-made

2

Engine

TCD2012 L04 2V

DEUTZ AG


3

Transmission

Allsion1000

GM


4

Hydraulic pump

CBWKA-E325-AFΦL

Hefei Changyaun hydraulic Co.,ltd


5

Lift cylinder

KT58V.06050000

Jiangsu Tengda engineering co.,ltd


6

Steering axle

HF450Z

Hefei Haiyuan machinery co.,ltd


7

Driving axle

HY455

Hefei Haiyuan machinery co.,ltd


8

Front/rear tire

215/75R17.5 16PR

Shandong longtong tire co.,ltd


9

Driving cab

KT58V.02000000

Jiangsu Gaojian auto manufacturing co.,ltd


10

Electric relief valve

VPN1-06/MP-21S

ARGO


11

Electric relief valve

RPE3-063Y11

ARGO


12

Electric relief valve

RPE3-062R11

ARGO


13

Emergency electric pump

800601455

Buhe


14

One-way valve

CIT-06-04-50

Yuci system


15

Fitting

——

Eton


16

Hydraulic hose

——

Parker


17

Height display

2.4-5.8

Wuxi xiongying


18

Relay

RH4B-UL(DC12V)

Japan hequan


19

Proximity

FL7M-7J6HD

Japan shanweu


20

Switch photoelectric switch

HP7-A43

Japan shanwu


21

Alarm lamp

FL-4871

Ocean king



8. List of spare parts

No.

Name

Type

Qty

Unit

Note

1

Oil engine filter

Deutz engines

1

Pcs


2

Diesel engine filter

Deutz engines

1

Pcs


3

Engine air filter

Deutz engines

1

Pcs


4

Hydraulic oil suction filter


1

Pcs


5

Hydraulic oil filter


1

Pcs


6

Tire

215/75R17.5 16PR

1

Pcs


7

Rim

6.75×17.5

1

Pcs


8

Tool box


1

Pcs


9

Internal hexagonal wrench


1

Set


10

Curved jaw locking pliers

10

1

Pcs


11

Adjustable wrench

200mm

1

Pcs


12

Heavy link rod


1

Pcs


13

Heavy sleeve

30mm

1

Pcs


14

Open spanner

8-10mm

1

Pair


15

Open spanner

13-16mm

1

Pair


16

Open spanner

14-17mm

1

Pair


17

Open spanner

19-21mm

1

Pair


18

Open spanner

22-24mm

1

Pair


19

Lifter

10T

1

Pcs


20

Cross screwdriver

Medium

1

Pair


21

Slot type screwdriver

Medium

1

Pair


22

Fuze

Various specs

1

Set


23

Toggle switch


2

pcs


24

Red indicating light


2

pcs


25

Green indicating light


2

pcs


26

Manual pump control lever


1

pcs


27

Fire extinguisher

8KG

1

Bottle


28

Wheel gear


2

Pcs
