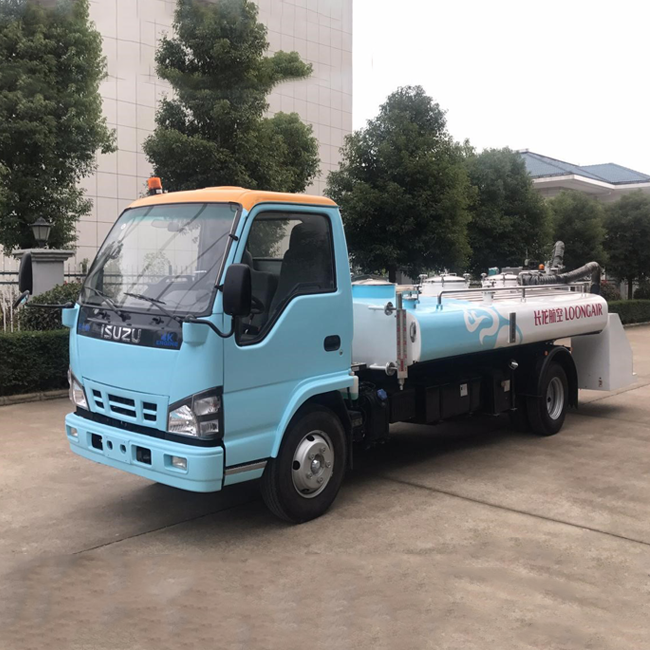

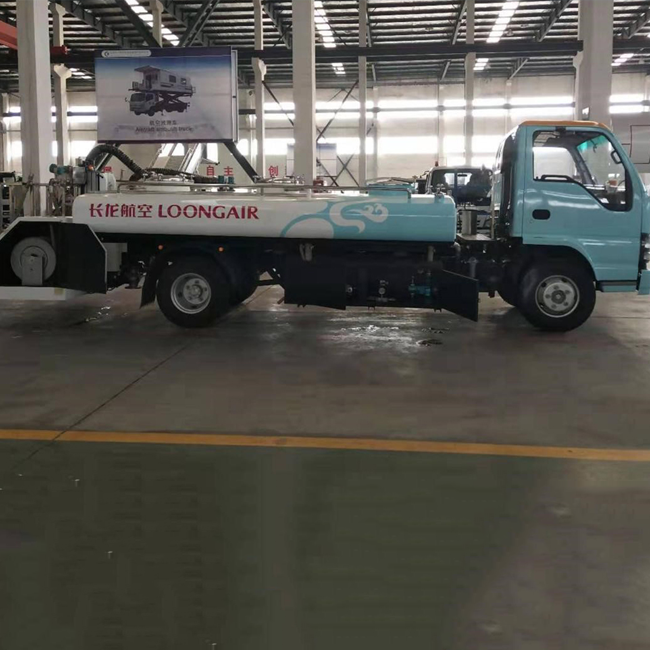

JSTY5070GWS Aircraft Toilet Water Lavatory Service Truck is a new type of airport special vehicle for collecting sewage and filling water for aircraft. Designed for the rear lifting work platform, large capacity cleaning, sewage tank, hydraulic motor driven vacuum pump suction system (optional) and hydraulic motor driven stainless steel acid resistant pump, vacuum pump suction system can efficiently and conveniently provide suction service for aircraft sewage tank, hydraulic motor driven stainless steel pump for aircraft sewage tank and sewage tank to provide cleaning function.
Aircraft Toilet Water Lavatory Service Truck configuration Five Main performance indicators:
Engine type: 4HK1-TC51
Water tank volume (L) : 1400
Sewage tank volume (L) : 2360 (with vacuum pump) /2600 (without vacuum pump)
Water supply flow (L/min) : ≥150
Water supply pressure (MPa) : 0.345
Maintenance weight (kg) : 5200
Overall dimensions (L × W × H) (mm) : 7295×2100×2380
Maximum speed (km/h) : 80
Other features optional: vacuum pump
Chassis model: QL1100A8KAY
Working platform lifting height (mm) : 385 ~ 3760
Channel circle Outer circle diameter (mm) : 16000
Engine emissions: Exhaust pollutants meet GB 17691-2005 Stage V limit requirements, exhaust smoke meets GB 3847-2005 requirements, exhaust pollutants meet GB 17691-2005 stage IV limit requirements
Circulation tank volume (L) : 240 (with vacuum pump) /0 (without vacuum pump)
Transmission model: MSB-5SM
