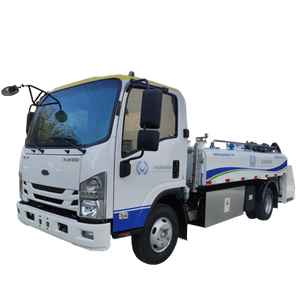

aircraft lavatory service cart

JSTY5050GWS aircraft lavatory service cart is a new type of aircraft sewage collection and water injection airport special vehicle modified by Jiangling chassis. It is designed as a rear lifting work platform, a large capacity cleaning and sewage tank, a hydraulic motor driven vacuum pump suction system (optional) and a hydraulic motor driven stainless steel acid resistant water pump. The vacuum pump suction system can efficiently and conveniently provide suction service for the aircraft sewage tank. The stainless steel pump driven by the hydraulic motor provides cleaning function for the aircraft sewage tank and sewage tank of the sewage truck. The chassis cab of the product is flat head, single row seat, two-door type, and the occupant is 2. The driving type is 4×2, the volume of clean water tank is 1.0m³, the volume of sewage tank is 2.0m³, and the water supply flow is ≥150min. The water supply pressure is 0.345Mpa, the sewage suction flow is 600L/min, and the height of the lifting platform from the ground is 400mm~2800mm. The product can be widely used in A300, A310, A318, A319, A320, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models.

Availability:
Product Description

Model:aircraft lavatory service cart


Main technical parameters

serial Project Name Specific parameters Part Name
Model
1 Total length (mm) 6550 chassis JX1061TG25
2 Total width (mm) 1900 engine JX493ZLQ5
3 Total height (mm) 2150 gearbox JC528T8
4 Wheelbase (mm) 3360 Front bridge JMCQC600-E
5 Wheel base (front/rear) (mm) 1385/1425 Rear axle 8A-ABS5
6 Front suspension (mm) 1090 tyre 7.00R16
7 Rear suspension (mm) 2100 Force extractor SDQ51/74LGS-G
8 Approach Angle (°) 20 Gear pump PL057
9 Departure Angle (°) 6 Hydraulic pump GM5-16-1E13S-20
10 Minimum ground clearance (mm) 200 Water pump SCB50-12.5/45
11 Maintenance weight (kg) 3600 Vacuum pump 2BV2771
12 Total mass (kg) 6630

13 Channel circle outer circle diameter (mm) 15500

14 Maximum driving distance (km/h) 80

15 Sewage tank volume (L) 2000

16 Tank clearing volume (L) 1000

17 Water supply flow (L/min) ≥150

18 Water supply pressure (Mpa) 0.25~0.345

19 Minimum height of working platform (mm) 400

20 Maximum height of working platform (mm) 3000

21 Sewage tank material Stainless steel plate 0Cr18Ni9Ti/4.5

22 Vacuum sewage tank materials Stainless steel plate 0Cr18Ni9Ti/4.5
