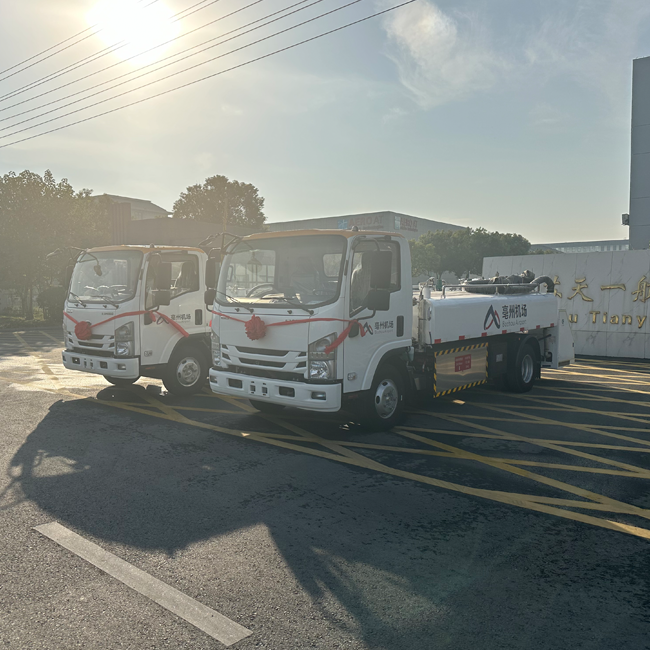

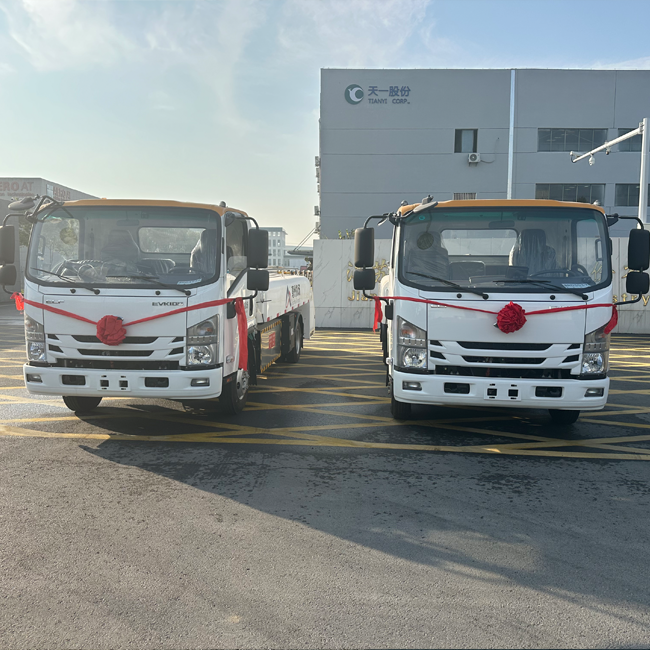

Lavatory Service Truck

Lavatory service Truck is designed for the rear lifting work platform, large capacity cleaning, sewage tank, motor driven vacuum pump suction system (optional) and motor driven stainless steel acid resistant pump, vacuum pump suction system can be efficient and convenient to provide aircraft sewage tank suction services, motor driven stainless steel pump for aircraft sewage tank and sewage tank to provide cleaning function.
Availability:
Product Description

Model:Lavatory service Truck


Main performance indicators:

Serial name parameter name Model number
1 Vehicle size (mm) 6965*2100*2250 chassis QL1070BEVECHA2Y
2 Lifting height range of working platform (mm) 400~3000 Chassis vehicle controller VCU02
3 Clean water tank volume L 1600 Driving motor YTD060W23
4 Sewage tank volume L 3480 Drive motor controller KTZ50X35S
5 Circulation tank volume L 200 Energy storage assembly L173TB2
6 Water supply pressure MPA 0.25~0.35 Energy storage unit CB220
7 Clean water flow L/min 220 Steering shaft F033
8 Wheelbase (mm) 3815 Drive shaft R048
9 Wheel base front/rear (mm) 1685/1525 tyre 7.00R16 14PR
10 Channel circle outer circle diameter (mm) 16500 Tank body JSTY5060GQSE-0200000-01
11 Departure Angle (°) 10 Motor pump controller HCDMC005VT3
12 Approach Angle (°) 21 Water pump DL12-60
13 Longitudinal passage Angle (°) 15 Clear water connection for sewage truck A-5
14 Maximum speed Km/h 80 Sewage joint A-7
15 Total vehicle mass (kg) 4750 Sewage pipe A-9
16 Minimum ground clearance (mm) 185 Lift cylinder GTWY350-2.8
17 Equipped with vacuum pump, vacuum bar 0.2 Power unit DLDY-1.0/0.8-3
18 Applicable temperature ℃ -35-65 Monitoring system D5804
19 Rated power of driving motor KW/r/min 60/1850 360° panoramic view system YG-SVMS-3D(I.MX6)
20 Battery capacity kwh 106.95 Electromagnetic main power switch DK238 12V
21 Range km 312 relay RH4B-UL
22 Assembly voltage V 618.24 Toggle switch 1NT-3
23 Total energy stored Kwh 106.95 Relay socket DTF14A
24 species Ningde era lithium iron phosphate sensor UGT521
25 Water tank cleaning material/thickness mm 316L/5 Alarm light FL4871
26 Minimum stable speed Km/h 0.8 Emergency switch YW1B-V4E11R
27

Touch switch CWLNJ
28

Indicator light AL6M
29

Travel switch XCMD2145L1
30

flowmeter LWGY
