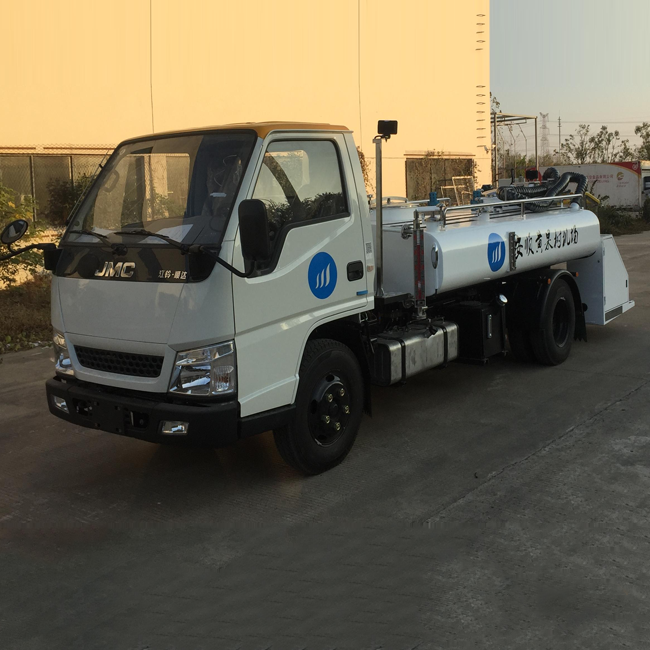

Diesel Lavatory service Truck

JSTY5050GWS Diesel Lavatory service Truck is a new type of aircraft sewage collection and water injection airport special vehicle modified by Jiangling chassis. It is designed as a rear lifting work platform, a large capacity cleaning and sewage tank, a hydraulic motor driven vacuum pump suction system (optional) and a hydraulic motor driven stainless steel acid resistant water pump. The vacuum pump suction system can efficiently and conveniently provide suction service for the aircraft sewage tank. The stainless steel pump driven by the hydraulic motor provides cleaning function for the aircraft sewage tank and sewage tank of the sewage truck. The chassis cab of the product is flat head, single row seat, two-door type, and the occupant is 2. The driving type is 4×2, the volume of clean water tank is 1.0m⊃3;, the volume of sewage tank is 2.0m⊃3;, and the water supply flow is ≥150min. The water supply pressure is 0.345Mpa, the sewage suction flow is 600L/min, and the height of the lifting platform from the ground is 400mm~2800mm.
The product can be widely used in A300, A310, A318, A319, A320, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models.

Availability:



Inquire

Product Description

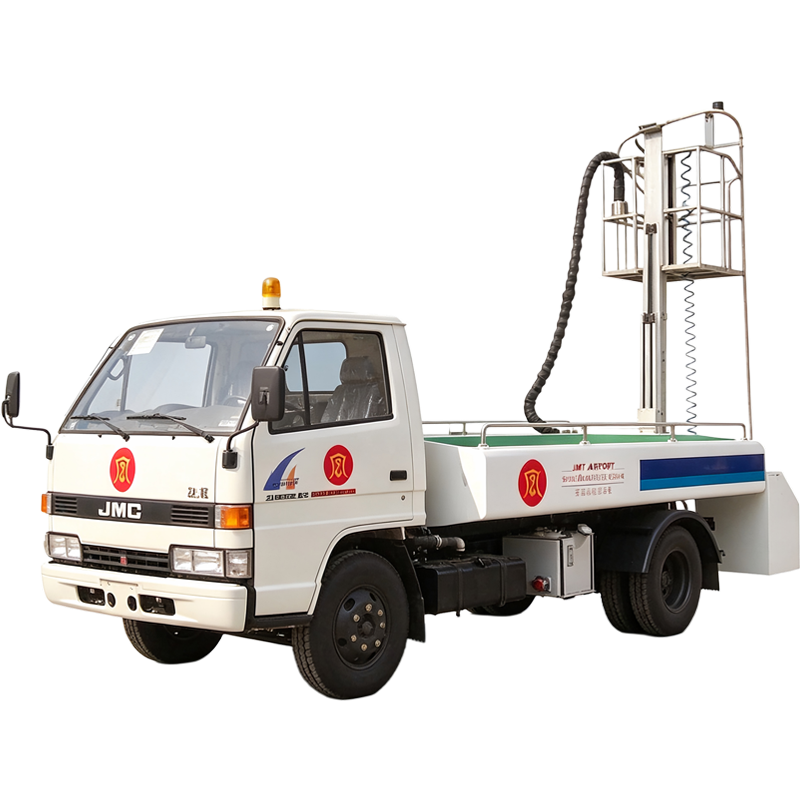

Model:JSTY5050GWS Diesel Lavatory service Truck

Main technical parameters

serial	Project Name	Specific parameters	Part Name	Model
1	Total length (mm)	6550	chassis	JX1061TG25
2	Total width (mm)	1900	engine	JX493ZLQ5
3	Total height (mm)	2150	gearbox	JC528T8
4	Wheelbase (mm)	3360	Front bridge	JMCQC600-E
5	Wheel base (front/rear) (mm)	1385/1425	Rear axle	8A-ABS5
6	Front suspension (mm)	1090	tyre	7.00R16
7	Rear suspension (mm)	2100	Force extractor	SDQ51/74LGS-G
8	Approach Angle (°)	20	Gear pump	PL057
9	Departure Angle (°)	6	Hydraulic pump	GM5-16-1E13S-20
10	Minimum ground clearance (mm)	200	Water pump	SCB50-12.5/45
11	Maintenance weight (kg)	3600	Vacuum pump	2BV2771
12	Total mass (kg)	6630
13	Channel circle outer circle diameter (mm)	15500
14	Maximum driving distance (km/h)	80
15	Sewage tank volume (L)	2000
16	Tank clearing volume (L)	1000
17	Water supply flow (L/min)	≥150
18	Water supply pressure (Mpa)	0.25~0.345
19	Minimum height of working platform (mm)	400
20	Maximum height of working platform (mm)	3000
21	Sewage tank material	Stainless steel plate 0Cr18Ni9Ti/4.5
22	Vacuum sewage tank materials	Stainless steel plate 0Cr18Ni9Ti/4.5
